Samsung 2043SW LCD Monitor Quick User Guide
Summary
Effortlessly set up your new professional LCD monitor with this comprehensive quick-start guide. The manual provides step-by-step instructions for optimal initial configuration, covering everything from adjusting resolution settings to connecting via DVI/VGA cables. Designed for modern users, it details physical connections, utilizes features like customizable keys, and even includes guidance on optional security locking mechanisms, ensuring reliable performance right out of the box.
Page 1 Text Content
LCD MONITOR quick start guide
2043SW 2043SWX 2243SW 2243SWX
Page Summary Contents For Samsung 2043SW LCD Monitor Quick User Guide

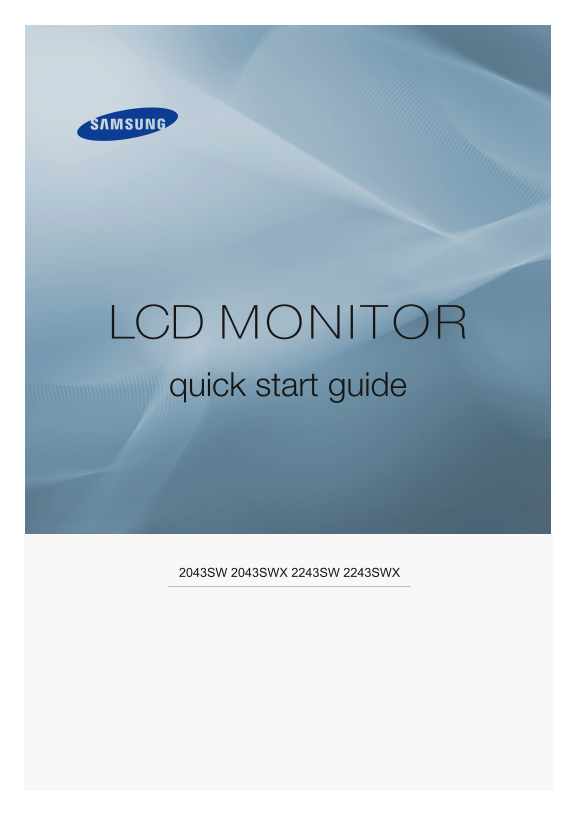

Page 1
LCD MONITOR quick start guide 2043SW 2043SWX 2243SW 2243SWX
Page 2
Introduction {2043SW/2043SWX/2243SW/2243SWX} Package Contents Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Contact a local dealer...
Page 3
Introduction Monitor & Dual Hinge Stand Manuals Quick Setup Guide Warranty Card User's Guide (Not available in all loca- tions) Cables D-Sub Cable Power Cord DVI Cable (option) Others Cleaning Clo...
Page 4
Introduction MENU button [MENU/ Opens the on-screen menu and exits from the menu. Also use to exit the OSD menu or return to the previous menu. Customized Key[ You can customize key assignment for the...
Page 5
Introduction If you select the digital mode, you must connect your monitor to the graphic card's DVI port using the DVI cable. >> Click here to see an animation clip AUTO button Use this button ...
Page 6
Introduction Connect the D-sub cable to the 15-pin, RGB IN port on the back of your mon- itor. Kensington Lock The Kensington lock is a device used to physically fix the system when using it in a publ...
Page 7
Connections Connections {2043SW/2043SWX} Connecting Cables Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outle...
Page 8
Connections {2043SW/2043SWX} Using the Stand Monitor Assembly Simple Stand HAS Stand
Page 9
Connections Dual Hinge Stand Monitor and Bottom HAS Stand A. Stand Stopper Attaching a Base This monitor accepts a 75 mm x 75 mm VESA-compliant mounting interface pad. Simple Stand( Dual Hinge Stand )...
Page 10
Connections 4. Align the mounting interface pad with the holes in the rear cover mounting pad and secure it with four screws that came with the arm-type base, wall mount hanger or other base. Do not u...
Page 11
Connections [RGB IN] Using the DVI (Digital) connector on the video card. Connect the DVI Cable to the DVI IN Port on the back of your Monitor. [DVI IN] Connected to a Macintosh. Connect the monitor t...
Page 12
Connections HAS Stand Dual Hinge Stand Monitor and Bottom HAS Stand A. Stand Stopper Attaching a Base This monitor accepts a 100 mm x 100 mm VESA-compliant mounting interface pad.
Page 13
Connections Simple Stand( Dual Hinge Stand ) HAS Stand . Monitor . Mounting interface pad (Sold separately) 1. Turn off your monitor and unplug its power cord. 2. Lay the LCD monitor face-down on a fl...
Page 14
Troubleshooting {2043SW/2043SWX} Self-Test Feature Check Note Your monitor provides a self test feature that allows you to check whether your monitor is functioning properly. Self-Test Feature Check 1...
Page 15
Troubleshooting 900 60 Hz" message comes up, disconnect the cable from the computer while the monitor is still powered on. If there is a message coming up on the screen or if the screen goes whit...
Page 16
Troubleshooting A: The monitor is in Power Saver mode. A: Press a key on the keyboard to activate the monitor and restore the image on the screen. A: If there is still no image, press the ' /SOURCE' b...
Page 17
Troubleshooting LED is blinking but no images on the screen. Q: Is the frequency properly adjusted when checking the Display Timing on the menu? A: Adjust the frequency properly by referring to the vi...
Page 18
Troubleshooting A: Download the latest program. The program can be downloaded http://www.sam- sung.com/monitor/magictune Q: Did you install the program? A: Reboot the computer after installing the pro...
Page 19
Troubleshooting A: Windows XP: Set the resolution in the Control Panel → Appearance and Themes → Display → Screen Saver. Set the function in the BIOS-SETUP of the computer. (Refer to the Windows / Com...
Page 20
Troubleshooting Warning Messages If there is something wrong with the input signal, a message appears on the screen or the screen goes blank although the power indicator LED is still on. The message m...
Page 21
Troubleshooting (Connected using the DVI cable) If you still see an error message on the screen when the monitor is connected properly, check to see if the monitor status is set to analog. If you stil...
Page 22
Troubleshooting The screen shows strange colors or just black and white. Q: Is the screen displaying only one color as if looking at the screen through a cellophane paper? A: Check the signal cable co...
Page 23
Troubleshooting Set the resolution at the Control Panel → Display → Settings. Q: Has the video card been set properly? A: Set the video card by referring to the video card manual. There is a message t...
Page 24
Troubleshooting If you installed a new video card or if you assembled the PC, check if the installed the adapter (video) driver and the monitor driver. Check if the scanning ratio of the video screen ...
Page 25
Troubleshooting Before calling for assistance, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call the phone number on the In- ...
Manual Details
| Brand | Samsung |
|---|---|
| Pages | 25 |
| File Size | 1.93 MB |
| Published | June 06, 2026 |
41 views
Enter the captcha to get the download link:
Frequently Asked Questions
How should I connect the video signal (DVI vs D-sub)?
Connect a DVI Cable to the DVI IN Port for digital signals, or use a D-sub cable to the 15-pin, RGB IN port for analog signals.
What do I do if I want to maximize energy efficiency?
To conserve energy, turn the monitor OFF when you are not using it or when leaving it unattended for long periods.
What is the recommended way to clean the LCD panel and case?
Disconnect the power cord first. Use a soft cloth with either a cleaning solution or plain water. Keep detergents off the surface and prevent any water entry into the monitor.
How do I set up the monitor for optimum viewing resolution?
Adjust your PC's display settings so that the resolution matches the optimal resolution specified for this product model.
