Samsung LCD Monitor 400MPN Quick User Guide
Summary
This comprehensive guide supports professional LCD Monitors, offering setup instructions for versatile digital display systems. Learn how to connect various sources using multiple inputs like HDMI, DVI, VGA, and Component ports. The manual covers detailed operations, cable connections, menu navigation, troubleshooting tips, and optimal performance across different PC and video modes, making it ideal for technicians, integrators, and professional users requiring reliable, multi-format display solutions.
Page 1 Text Content

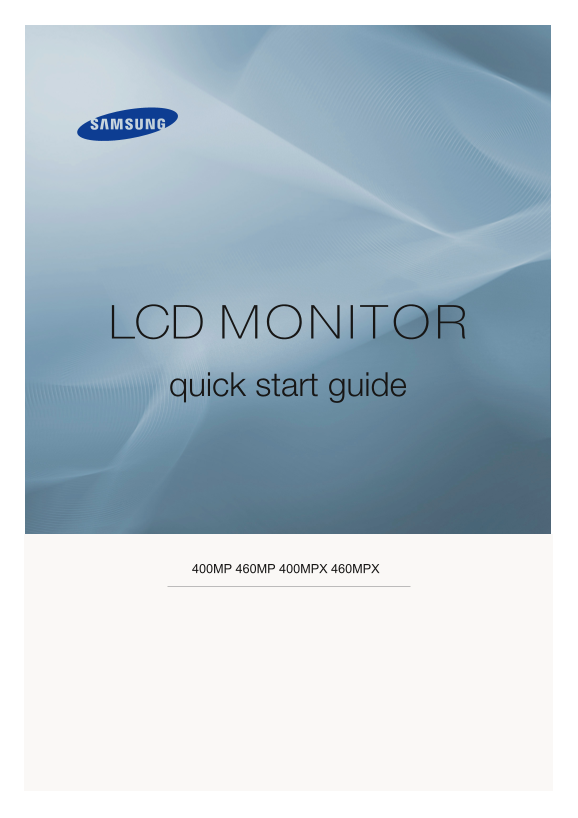

LCD MONITOR quick start guide
400MP 460MP 400MPX 460MPX
Page Summary Contents For Samsung LCD Monitor 400MPN Quick User Guide
Page 1
LCD MONITOR quick start guide 400MP 460MP 400MPX 460MPX
Page 2
Introduction Package Contents Please make sure the following items are included with your LCD Display. If any items are missing, contact your dealer. Contact a local dealer to buy optional items. Note...
Page 3
Introduction Others Remote Control Batteries (AAA X 2) HDD Cover (Not available in all loca- tions) BNC to RCA Adaptor Jack Sold separately DVI Cable Wall Mount KIT LAN Cable (Applicable to the MPn mo...
Page 4
Introduction Your LCD Display MENU button [MENU] Opens the on-screen menu and exits from the menu. Also use to exit the OSD menu or return to the previous menu. Navigate buttons (Up-Down buttons) Move...
Page 5
Introduction Use this button for turning the LCD Display on and off. Power indicator Shows Power Saver mode by blinking green Note See Power Saver described in the manual for further information regar...
Page 6
Introduction RS232C OUT/IN (RS232C Serial PORT) MDC(Multiple Display Control) Program Port DVI / PC / HDMI IN [DVI/PC/HDMI AUDIO IN] (PC/DVI/HDMI Audio Connection Terminal (Input)) DVI / PC / HDMI IN ...
Page 7
Introduction BNC/COMPONENT OUT[R/PR, G/Y, B/PB, H, V] (BNC/Component Connection Terminal (Out- put)) BNC (Analog PC) Connection: connecting the R, G, B, H, V ports. Component Connection: connecting th...
Page 8
Introduction Kensington Lock The Kensington Lock is a device used to physi- cally fix the system when using it in a public place. The locking device has to be purchased separately. The appearance and ...
Page 9
Introduction POWER OFF Number Buttons DEL button + VOL - MUTE TV/DTV INFO COLOR BUTTONS TTX/MIX STILL AUTO S.MODE MDC LOCK SOURCE ENTER/PRE-CH CH/P D.MENU GUIDE RETURN Up-Down Left-Right buttons EXIT ...
Page 10
Introduction The "-" button operates only for DTV. It is used to select MMS 4. DEL button (multi-channel) for a DTV. 5. + VOL - Adjusts the audio volume. Pauses (mutes) the audio output temp...
Page 11
Introduction 24. Up-Down Left-Right but- Moves from one menu item to another horizontally, vertically or tons adjusts selected menu values. Exits from the menu screen. 25. EXIT Selects SRS Tru Surroun...
Page 12
Introduction
Page 13
Introduction LCD Display Head NETWORK MODEL SIZE Installation VESA Bracket When installing VESA, make sure to comply with the international VESA standards. Purchasing VESA Bracket and Installation Inf...
Page 14
Introduction Dimensions Notice For securing the bracket on a wall, use only machine screws of 6 mm diameter and 8 to 12 mm length. Wall Bracket Installation Contact a technician for installing the wal...
Page 15
Introduction When done, mount the wall bracket on the wall. There are two hinges(left and right). Use the correct one. A - Captive Screw B - Wall Bracket C - Hinge (Left) D - Hinge (Right) 2. Before d...
Page 16
Introduction To mount the product on the wall bracket The shape of the product may vary depending on the model. (The assemblies of the plastic hanger and the screw are the same) 1. Remove the 4 screws...
Page 17
Introduction 4. Remove safety pin (3) and insert the 4 product holders into the corresponding bracket holes (1). Then place the product(2) so that it is firmly fixed to the bracket. Make sure to re-in...
Page 18
Introduction Make sure to use the top center, and not the leftor the right side of the product to adjust the angle. Mechanical Layout(460MP(N)) Mechanical Layout
Page 19
Introduction LCD Display Head NETWORK MODEL SIZE Installation VESA Bracket When installing VESA, make sure to comply with the international VESA standards. Purchasing VESA Bracket and Installation Inf...
Page 20
Introduction Dimensions Notice For securing the bracket on a wall, use only machine screws of 6 mm diameter and 8 to 12 mm length. Wall Bracket Installation Contact a technician for installing the wal...
Page 21
Introduction When done, mount the wall bracket on the wall. There are two hinges(left and right). Use the correct one. A - Captive Screw B - Wall Bracket C - Hinge (Left) D - Hinge (Right) 2. Before d...
Page 22
Introduction To mount the product on the wall bracket The shape of the product may vary depending on the model. (The assemblies of the plastic hanger and the screw are the same) 1. Remove the 4 screws...
Page 23
Introduction 4. Remove safety pin (3) and insert the 4 product holders into the corresponding bracket holes (1). Then place the product(2) so that it is firmly fixed to the bracket. Make sure to re-in...
Page 24
Introduction Make sure to use the top center, and not the leftor the right side of the product to adjust the angle.
Page 25
Connections Connecting a Computer Using a Power cord with Earth In the event of failure, the earth lead may cause electric shock. Make sure to wire the earth lead in correctly, before connecting the A...
Page 26
Connections Using the BNC (Analog) connector on the video card. Connect the BNC Cable to the BNC/COMPONENT IN - R, G, B, H, V ports on the back of your LCD Display and the 15 pin D-sub Port on the com...
Page 27
Connections 3. Select AV using the SOURCE . The LCD Display has AV connection terminals to connect AV input devices like DVDs, VCRs or Camcorders. You may enjoy AV signals as long as the LCD Display i...
Page 28
Connections 2. Connect a Component cable between the BNC/COMPONENT IN - PR, Y, PB port on the LCD Display and the PR, Y, PB jacks on the DVD player. Select Component for the connection to a DVD player...
Page 29
Connections Connecting Using a HDMI Cable Input devices such as digital DVD are connected to the HDMI terminal of the LCD Display using the HDMI cable. You cannot connect a PC to the HDMI terminal. Co...
Page 30
Connections Connecting a LAN Cable Using a Power cord with Earth In the event of failure, the earth lead may cause electric shock. Make sure to wire the earth lead in correctly, before connecting the ...
Page 31
Connections You can connect USB devices such as a mouse or keyboard. (Applicable to the MPn model only)
Page 32
Troubleshooting Self-Test Feature Check Check the following items yourself before calling for assistance. Contact a Service Center for problems that you cannot solve by yourself. Self-Test Feature Che...
Page 33
Troubleshooting Do not use benzene, thinner or other flammable substan- ces, or a wet cloth. We recommend that a SAMSUNG cleansing agent is used to prevent damage to the screen. 2) Maintaining the Fla...
Page 34
Troubleshooting A: Check if the signal cable between the computer and the LCD Display is securely connected. (Refer to Connecting a Computer) Problems related to the Screen Problems related to the LCD...
Page 35
Troubleshooting A: Adjust color using Custom under OSD Color Adjustment menu. Q: The color image is distorted by dark shadows. A: Adjust color using Custom under OSD Color Adjustment menu. Q: The colo...
Page 36
Troubleshooting A: Check if the power is on. A: Check if the power cord is securely connected. A: Check if a special fluorescent or neon lamp is on in the vicinity. Problems related to Magic Info Maki...
Page 37
Troubleshooting Set the resolution at the Control Panel → Display → Screen Saver. Set the function in the BIOS-SETUP of the computer. (Refer to the Windows / Computer Man- ual). Q: How can I clean the...
Manual Details
| Brand | Samsung |
|---|---|
| Pages | 37 |
| File Size | 1.42 MB |
| Published | June 05, 2026 |
68 views
Enter the captcha to get the download link:
Frequently Asked Questions
How do I connect external boxes like a network or TV tuner?
Connect the DC OUT port to the POWER connector of the respective box. You can only connect one external box at a time.
What type of cleaning materials should be used for the LCD Panel?
Disconnect power first, then use a soft cloth with either a cleaning solution or plain water. Do not let water enter the display.
How do I change the active video source mode on the monitor?
Press the SOURCE button and switch through the available modes: [PC] → [DVI] → [AV] → [HDMI], etc.
What video codecs are supported for playing video content?
The video supports MPEG1 and WMV codecs only. You must install the corresponding codec to play them correctly.
