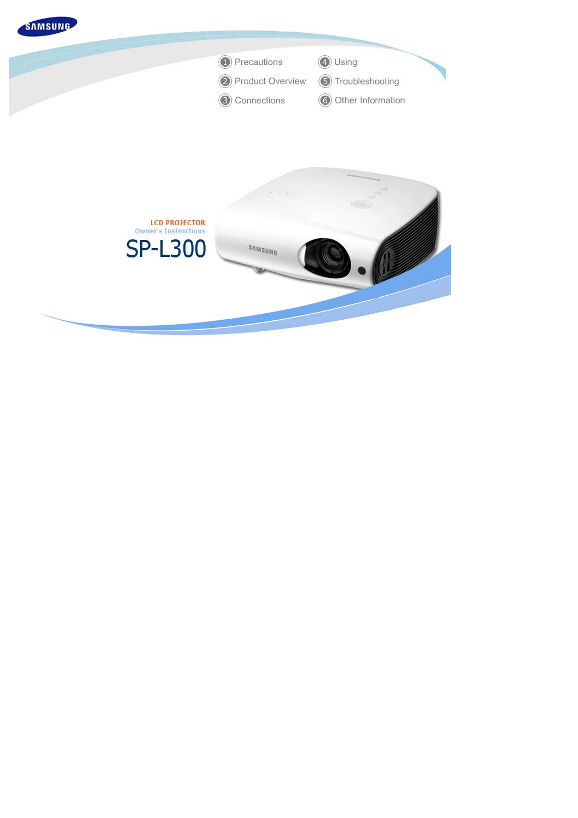

Samsung SP- L300W Projector User's Manual _Part 2 Product Assembly and Setup
Summary
This critical guide provides essential safety instructions and precautions for operating your electrical appliance. The manual details safe power usage, proper installation procedures, and meticulous cleaning guidelines to ensure optimal performance. It is designed for all end-users who require a comprehensive understanding of necessary handling steps to prevent fire, electric shock, or property damage. Please read the full document before initial setup.
Page Summary Contents For Samsung SP- L300W Projector User's Manual _Part 2 Product Assembly and Setup
Page 2
To avoid injuries or damage to property, please read the following precautions carefully and use the product accordingly. Failure to follow the instructions marked with this symbol may cause personal ...
Page 3
Always unplug the unit by holding the power plug. Pulling the power cable may damage the inside of it. There is a danger of fire. Unplug the power plug before cleaning the product. There is a danger o...
Page 4
If the product falls it may harm children. Install on a flat and stable location as the front part is heavy. In case of thunder/lightning, disconnect the power cord from the wall outlet. There is a da...
Page 5
There is a danger of fire or explosion. Do not place containers with water, vases, drinks, chemicals, small metal parts or heavy objects on the product. If water enters the product, it may cause elect...
Page 6
If the product is dropped or the casing is damaged, turn the product off and unplug the power cord. This may cause electric shock or fire. Contact a Service Center. Use only specified standard batteri...
Page 7
| Product Features | Product Views | Remote Control | Product Specifications | An optical engine adopting new LCD technology - 1024 x 768 panel has been adapted. - Utilizing a 3P-LCD panel. - Provides...
Page 8
1. Indicators 5. POWER( ) Button - STAND BY (Blue LED) Used to turn the projector on or off. - LAMP (Blue LED) - TEMP (Red LED) 6. Lens Refer to the LED Indications. 7. Remote Control Signal Receiver ...
Page 9
Remote Control/ 1 Batteries (CR2025) Power Cable Cleaning Cloth (Not available in all locations) D-Sub Cable LED Indications ●:Light is On ◐:Light is Blinking ○:Light is Off STAND LAMP TEMP Informatio...
Page 10
cover is not open both the video and audio are turned off automatically. Action 3 completely. If this status persists for ten minutes, the projector is turned off automatically. If the internal temper...
Page 11
2. AUDIO OUT port 8. [AV IN] S-VIDEO Input port 3. HDMI/DVI IN Input port 9. PC IN 1,2 Input port 4. PC 1/DVI AUDIO IN Input port 10.[PC IN2] AUDIO Input port 5. RS-232C port (For service input termin...
Page 12
6. INSTALL Used to flip or reverse the projected image. 7. BLANK This is used to turn off the video and audio temporarily. It is released when any button other than the POWER button is pressed. 8. P.S...
Page 13
Power 220W (Normal : 200W, Eco : 152W ) Consumption Life Time 2,000 Hours (Eco : 2,500 Hours ) D-Sub 15p x 2 Analog RGB, analog YPb Pr HDMI Digital RGB, digital YCb Cr Input Terminal Mini DIN x 1 S-Vi...
Page 14
VESA 1280 x 720 70Hz 52.500 70.000 89.040 VESA 1280 x 720 72Hz 54.072 72.000 91.706 VESA 1280 x 720 75Hz 56.456 74.777 95.750 VESA 1280 x 768 60Hz 47.776 59.870 79.500 VESA 1280 x 768 75Hz 60.289 74.8...
Page 16
| Basic Settings | Connecting the Power | Connecting an External Device | Installing the Projector Install the projector so that the beam from the projector is perpendicular to the screen. Place the p...
Page 17
You can adjust the size of image within zoom range by manipulating the Zoom Knob. Focus the picture on the screen using the Focus Ring. If your product is installed at a location out of the specified ...
Page 18
This projector is designed to show images optimally on a 80 ~ 120 inch sized screen. A. Screen Z: Throw Distance Y': Distance from Lens Center to Image Bottom Setting up the PC Environment - Check the...
Page 19
4. Click on [Monitor] tab and set the <Screen refresh rate> by referring to <Vertical Frequency> described in the Supported Resolution/Size Modes table. Set up both the vertical and horizo...
Page 20
Connecting a PC using a D-Sub cable Check that your PC and projector are turned off. Connect the [PC IN (1 or 2)] terminal at the back of the projector to the D-Sub terminal of your PC using a D-Sub c...
Page 21
Connecting an External Monitor You can view an image on both your projector and a separate monitor at the same time. Check that your PC and projector are turned off. Connect the [PC IN 1] terminal at ...
Page 22
First, check that the AV device and your projector are turned off. Connect the [HDMI/DVI IN] terminal at the back of the projector to the DVI output terminal of the digital output device using an HDMI...
Page 23
First, check that the AV device and your projector are turned off. Connect the [PC IN (1 or 2)] terminal at the back of the projector to the Component terminal of your AV device using a D- Sub/Compone...
Page 24
Connecting an External Speaker You can hear sound through an external speaker instead of the internal speaker embedded in the projector. Prepare an audio cable (Not supplied) suitable for your externa...
Page 25
| Basic Functions | Input | Picture | Setup | Option Turning on the projector Check that the lens cover is opened completely. Turn the power on. Check that the STAND BY LED indicator is turned on. Pre...
Page 26
Screen Description Play/Stop Adjustment Source List You can select a device connected to the projector to display. 1) PC 1 4) S-Video 2) PC 2 5) HDMI 3) AV Edit Name You can edit the names of devices ...
Page 27
▶ Presentation and Text modes are only enabled if the input signal is a PC Timing(D- Sub/HDMI)signal. 2) Contrast : Used to adjust the contrast between the object and the background. 3) Brightness : U...
Page 28
1) Normal: Used in a normal environment. 2) Low: Used when the dark part is shown too bright. Overscan Using this function, you can cut the edge of the picture when unnecessary information, images app...
Page 29
4) Rear-Ceiling : Vertically Reversed Image Lamp Mode Used to set the image brightness by adjusting the amount of light generated by the lamp. 1) Eco : This mode is optimized for small screens smaller...
Page 30
2) Reset Filter Time : Resets the filter time. Reset Filter Time | Basic Functions | Input | Picture | Setup | Option * Click the Play( )/Stop( ) button in the table below to view the video file. Scre...
Page 31
If the filter usage time is larger than the filter check period, the filter check message is displayed for a minute whenever the projector is turned on. Filter check message: "Check the filter, a...
Page 32
| Before Contacting Service Personnel Installation and Connection Symptoms Troubleshooting No Power. Check the power cable connections. I want to install my projector on The ceiling installation suppo...
Page 34
| Care and Maintenance | Contact SAMSUNG WORLDWIDE | Authority To clean the exterior and lens of the projector Clean the projector using a soft dry cloth. Do not clean the projector with flammable sub...
Page 35
Contains Mercury, Dispose According to Local, State or Federal Laws Lamp Replacement Procedure Since the lamp is a high temperature and high voltage product, wait at least one hour from the time that ...
Page 36
When cleaning the filter, use a small vacuum cleaner for computers and small electronics products, or wash it under running water. When washing the filter under running water, make sure to dry it comp...
Page 37
EL SALVADOR 800-6225 http://www.samsung.com/latin GUATEMALA 1-800-299-0013 http://www.samsung.com/latin HONDURAS 800-7919267 http://www.samsung.com/latin JAMAICA 1-800-234-7267 http://www.samsung.com/...
Page 38
KYRGYZSTAN 00-800-500-55-500 RUSSIA 8-800-555-55-55 http://www.samsung.ru TADJIKISTAN 8-10-800-500-55-500 UKRAINE 8-800-502-0000 http://www.samsung.ua UZBEKISTAN 8-10-800-500-55-500 http://www.samsung...
