Samsung 570DX LCD Monitor Quick User Guide
Summary
Master your display with the SyncMaster 570DX LCD Monitor, designed for professional and home use requiring versatile video connectivity. This comprehensive quick setup guide walks you through everything from initial setup and mechanical connections to advanced functions. Learn about multi-standard inputs (HDMI, DVI, Component, etc.), how to utilize the menu controls, adjust display settings automatically, and troubleshoot common operational issues. Ideal for users needing a detailed resource to ensure seamless integration with various digital sources.
Page 1 Text Content

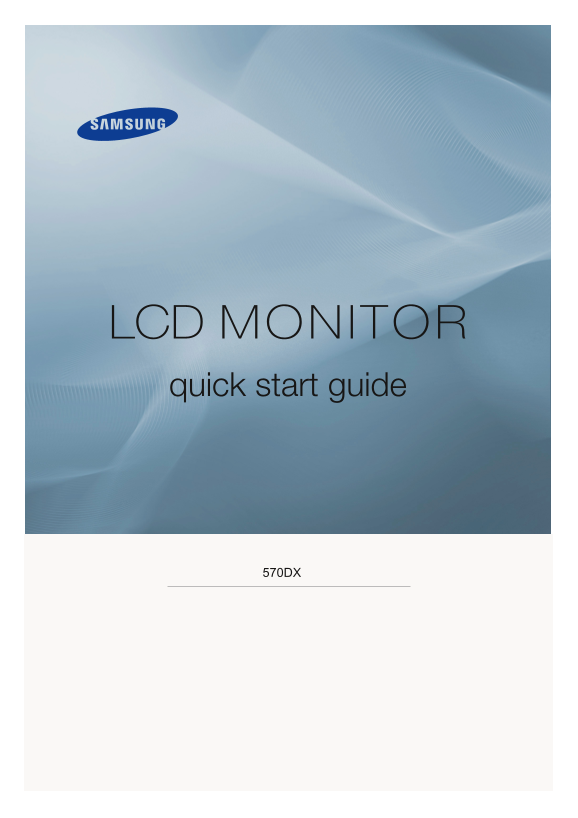

LCD MONITOR quick start guide
570DX
Page Summary Contents For Samsung 570DX LCD Monitor Quick User Guide
Page 1
LCD MONITOR quick start guide 570DX
Page 2
Select Language Main Page Model Sync Master 570DX Safety Instructions Introduction Package Contents Your LCD Display Mechanical Layout Connections The color and appearance of the product may vary depe...
Page 3
Batteries (AAA X 2) Remote Control (Not available in all Cover-Hole locations) BNC to RCA Semi Stand Screw: 4 EA Adaptor Jack Sold separately Wall Mount KIT Speaker Set DVI Cable BNC Cable Your LCD Di...
Page 4
Activates a highlighted menu item. 5) SOURCE Switches from PC mode to Video mode. Changing the source is only allowed for external devices that are connected to the LCD Display at the time. [PC] → [BN...
Page 5
1) POWER S/W ON [ | ] / OFF [O] Switches the LCD Display On/Off. 2) POWER IN The power cord plugs into the LCD Display and the wall plug. 3) REMOTE OUT/IN You can use a wired remote control by connect...
Page 6
12) AV AUDIO IN [L-AUDIO-R] (LCD Display Audio Connection Terminal (Input)) 13) AV OUT [VIDEO] (VIDEO Connection Terminal): AV mode (Output) 14) AV IN [VIDEO] (VIDEO Connection Terminal) (Input) 15) A...
Page 7
25. DUAL/MTS 26. PIP 27. SOURCE 28. SWAP 29. SIZE 30. REW 31. STOP 32. PLAY/PAUSE 33. FF 1) ON / OFF Turns the LCD Display On/Off. 2) MAGICNET Magic Net Quick Launch Button. - This fuction does not wo...
Page 8
Activates a highlighted menu item. 12) P.MODE When you press this button, current picture mode is displayed on the lower center of the screen. AV / S-Video / Component : P.MODE The Monitor has four au...
Page 9
- This fuction does not work for this monitor. 26) PIP Every time you press the button, a PIP screen appears. 27) SOURCE Changes the source of the PIP window signal. 28) SWAP Swaps the contents of the...
Page 10
Select Language Main Page Model Sync Master 570DX Safety Instructions Introduction Connections Installing the Stand KIT Connecting the LCD Display The color and appearance of the product may vary depe...
Page 11
Connecting the LCD Display Using a Power cord with Earth In the event of failure, the earth lead may cause electric shock. Make sure to wire the earth lead in correctly, before connecting the AC power...
Page 12
3) Connect the audio cable for your LCD Display to the audio port on the back of your computer. Turn on both your computer and the LCD Display. The DVI cable or BNC cable is optional. Contact a local ...
Page 13
1) Connect a set of audio cables between the COMPONENT AUDIO IN [L-AUDIO-R] on the LCD Display and the AUDIO OUT jacks on the DVD player. 2) Connect a Component cable between the BNC/COMPONENT IN - PR...
Page 14
The audio-video cables shown here are usually included with a Camcorder. (If not, check your local electronics store.) If your camcorder is stereo, you need to connect a set of two cables. Connecting ...
Page 15
Connect the speaker connection cable between the speaker connection jack on the back of the SET and the speaker connection jack on the back of the speaker. Do not move the SET while the SET is connect...
Page 16
You can control your monitor by allowing it to receive the remote control signals of other devices through the REMOTE OUT terminal. You can control a device by allowing it to receive remote control si...
Page 17
1) Connect the DVI output terminal of a digital output device to the HDMI IN terminal of the monitor using a DVI to HDMI cable. 2) Connect the red and white jacks of an RCA to stereo (for PC) cable to...
Page 18
Select Language Main Page Model Sync Master 570DX Safety Instructions Introduction Connections Using the Software Adjusting the LCD Display Troubleshooting The color and appearance of the product may ...
Page 19
Maintenance and Cleaning 1) Maintaining the LCD Display Case. Clean with a soft cloth after disconnecting the power cord. Do not use benzene, thinner or other flammable substances, or a wet cloth. We ...
Page 20
(Refer to Connecting a Computer) Problems related to the Screen Problems related to the LCD Display screen and their solutions are listed. Problems Solutions The screen is blank and the power Ensure t...
Page 21
Problems related to audio signals and their solutions are listed below. Problems Solutions No sound. Ensure that the audio cable is firmly connected to both the audio-in port on your LCD Display and t...
Manual Details
| Brand | Samsung |
|---|---|
| Pages | 21 |
| File Size | 1.62 MB |
| Published | June 15, 2026 |
2 views
Enter the captcha to get the download link:
Frequently Asked Questions
What is the primary function of the 'SOURCE' button?
It switches the input mode, allowing selection between various interfaces like PC, BNC, DVI, and HDMI.
How can I troubleshoot low audio output despite adjusting volume controls?
Check the volume control on your computer’s sound card or software program as well.
Where do I connect an external speaker set for audio output?
Connect it to the EXT SPEAKER terminal (terminal 17) located at the back of the monitor.
What is required when making a digital connection via DVI-D mode?
You must use a standard DVI cable, connecting the HDMI IN terminal to your digital output device's corresponding port.
How do I adjust the liquid crystal display’s brightness automatically?
The integrated Brightness Sensor function automatically adjusts the LCD Display's brightness based on surrounding light levels.
