Rollei Smart Frame WiFi 150 Data Sheet (EN)
Summary
Showcase your memories on this 15.6-inch Smart Digital Photo Frame. Optimized for modern users and families, this high-definition display offers vibrant viewing on a touchscreen IPS panel. Connectivity is achieved via Wi-Fi and the free Frameo app, allowing effortless transmission of photos and videos. The accompanying guide details everything from setup to advanced features, including automatic rotation, captioning, storage options (SD card/micro-USB), and flexible mounting for vertical or horizontal display.

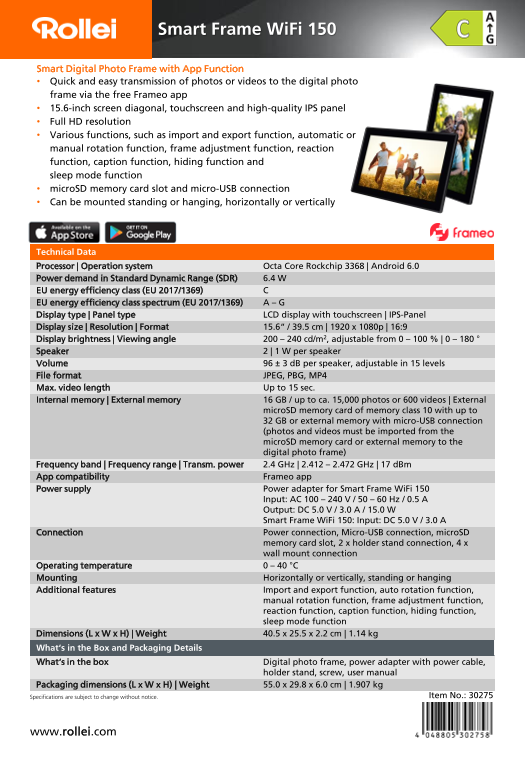

Page 1 Text Content
Smart Frame Wi Fi 150
Smart Digital Photo Frame with App Function Quick and easy transmission of photos or videos to the digital photo frame via the free Frameo app 15.6-inch screen diagonal, touchscreen and high-quality IPS panel Full HD resolution Various functions, such as import and export function, automatic or manual rotation function, frame adjustment function, reaction function, caption function, hiding function and sleep mode function micro SD memory card slot and micro-USB connection Can be mounted standing or hanging, horizontally or vertically
Technical Data Processor | Operation system Octa Core Rockchip 3368 | Android 6.0 Power demand in Standard Dynamic Range (SDR) 6.4 W EU energy efficiency class (EU 2017/1369) EU energy efficiency class spectrum (EU 2017/1369) A – Display type | Panel type LCD display with touchscreen | IPS-Panel Display size | Resolution | Format 15.6“ / 39.5 cm | 1920 x 1080p | 16:9 Display brightness | Viewing angle 200 – 240 cd/m2, adjustable from 0 – 100 % | 0 – 180 ° Speaker 2 | 1 W per speaker Volume 96 ± 3 d B per speaker, adjustable in 15 levels File format JPEG, PBG, MP4 Max. video length Up to 15 sec. Internal memory | External memory 16 GB / up to ca. 15,000 photos or 600 videos | External
micro SD memory card of memory class 10 with up to 32 GB or external memory with micro-USB connection (photos and videos must be imported from the micro SD memory card or external memory to the digital photo frame)
Frequency band | Frequency range | Transm. power 2.4 GHz | 2.412 – 2.472 GHz | 17 d Bm App compatibility Frameo app Power supply Power adapter for Smart Frame Wi Fi
Input: AC 100 – 240 V / 50 – 60 Hz / 0.5 A Output: DC 5.0 V / 3.0 A / 15.0 W Smart Frame Wi Fi 150: Input: DC 5.0 V / 3.0 A
Connection Power connection, Micro-USB connection, micro SD
memory card slot, 2 x holder stand connection, 4 x wall mount connection
Operating temperature 0 – 40 °C Mounting Horizontally or vertically, standing or hanging Additional features Import and export function, auto rotation function,
manual rotation function, frame adjustment function, reaction function, caption function, hiding function, sleep mode function
Dimensions (L x W x H) | Weight 40.5 x 25.5 x 2.2 cm | 1.14 kg What‘s in the Box and Packaging Details What‘s in the box Digital photo frame, power adapter with power cable,
holder stand, screw, user manual
Packaging dimensions (L x W x H) | Weight 55.0 x 29.8 x 6.0 cm | 1.907 kg
Specifications are subject to change without notice. Item No.: 30275
www.rollei.com
Page Summary Contents For Rollei Smart Frame WiFi 150 Data Sheet (EN)
Manual Details
| Brand | Rollei |
|---|---|
| Pages | 1 |
| File Size | 159.54 KB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How do I transfer photos to the Smart Frame WiFi 150?
You can use the free Frameo app or by importing them via a microSD memory card or micro-USB connection.
What resolutions and aspect ratios does it support?
It has Full HD resolution (1920 x 1080p) in a 16:9 format.
Can the Smart Frame be mounted anywhere?
Yes, it can be mounted standing or hanging, and displayed both horizontally or vertically.
What are the operational temperature limits?
The operating temperature range is specified as 0 – 40 °C.
