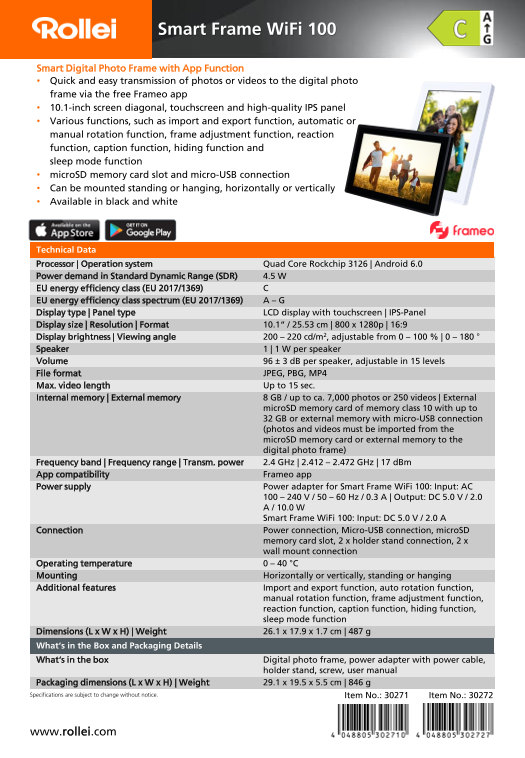

Rollei Smart Frame WiFi 100 Data Sheet (EN)
Summary
Display your digital memories with this smart 10.1-inch touchscreen photo frame. Designed for effortless connection via WiFi and the free Frameo app, it allows users to remotely send photos and videos instantly. The manual provides comprehensive instructions on setup, connecting power sources, and utilizing advanced functions like auto/manual rotation, captioning, and reacting. It’s ideal for anyone seeking a versatile technological way to showcase cherished family moments, supporting both local memory cards and external storage options while offering flexible standing or hanging display modes.
Page 1 Text Content
Smart Frame Wi Fi 100
Smart Digital Photo Frame with App Function Quick and easy transmission of photos or videos to the digital photo frame via the free Frameo app 10.1-inch screen diagonal, touchscreen and high-quality IPS panel Various functions, such as import and export function, automatic or manual rotation function, frame adjustment function, reaction function, caption function, hiding function and sleep mode function micro SD memory card slot and micro-USB connection Can be mounted standing or hanging, horizontally or vertically Available in black and white
Technical Data Processor | Operation system Quad Core Rockchip 3126 | Android 6.0 Power demand in Standard Dynamic Range (SDR) 4.5 W EU energy efficiency class (EU 2017/1369) EU energy efficiency class spectrum (EU 2017/1369) A – Display type | Panel type LCD display with touchscreen | IPS-Panel Display size | Resolution | Format 10.1“ / 25.53 cm | 800 x 1280p | 16:9 Display brightness | Viewing angle 200 – 220 cd/m2, adjustable from 0 – 100 % | 0 – 180 ° Speaker 1 | 1 W per speaker Volume 96 ± 3 d B per speaker, adjustable in 15 levels File format JPEG, PBG, MP4 Max. video length Up to 15 sec. Internal memory | External memory 8 GB / up to ca. 7,000 photos or 250 videos | External
micro SD memory card of memory class 10 with up to 32 GB or external memory with micro-USB connection (photos and videos must be imported from the micro SD memory card or external memory to the digital photo frame)
Frequency band | Frequency range | Transm. power 2.4 GHz | 2.412 – 2.472 GHz | 17 d Bm App compatibility Frameo app Power supply Power adapter for Smart Frame Wi Fi 100: Input: AC
100 – 240 V / 50 – 60 Hz / 0.3 A | Output: DC 5.0 V / 2.0 A / 10.0 W Smart Frame Wi Fi 100: Input: DC 5.0 V / 2.0 A
Connection Power connection, Micro-USB connection, micro SD
memory card slot, 2 x holder stand connection, 2 x wall mount connection
Operating temperature 0 – 40 °C Mounting Horizontally or vertically, standing or hanging Additional features Import and export function, auto rotation function,
manual rotation function, frame adjustment function, reaction function, caption function, hiding function, sleep mode function
Dimensions (L x W x H) | Weight 26.1 x 17.9 x 1.7 cm | 487 g What‘s in the Box and Packaging Details What‘s in the box Digital photo frame, power adapter with power cable,
holder stand, screw, user manual
Packaging dimensions (L x W x H) | Weight 29.1 x 19.5 x 5.5 cm | 846 g Specifications are subject to change without notice. Item No.: 30272Item No.: 30271
