Rollei Lumen Panel 600Bi Data Sheet (EN)
Summary
Illuminate your creative vision with this professional LED continuous light panel designed for advanced photographers and videographers. This versatile 40W unit provides natural daylight simulation (CRI/TLCI 95+) with fully adjustable color temperature (3200K–5500K) and brightness control, ensuring flawless results whether shooting photos or videos. The manual provides comprehensive guidance on setup, power operation (AC or battery), field adjustments using the included diffusers and barn doors, and remote control via the Rollei Lumen app. Essential for achieving studio-quality lighting in any setting.

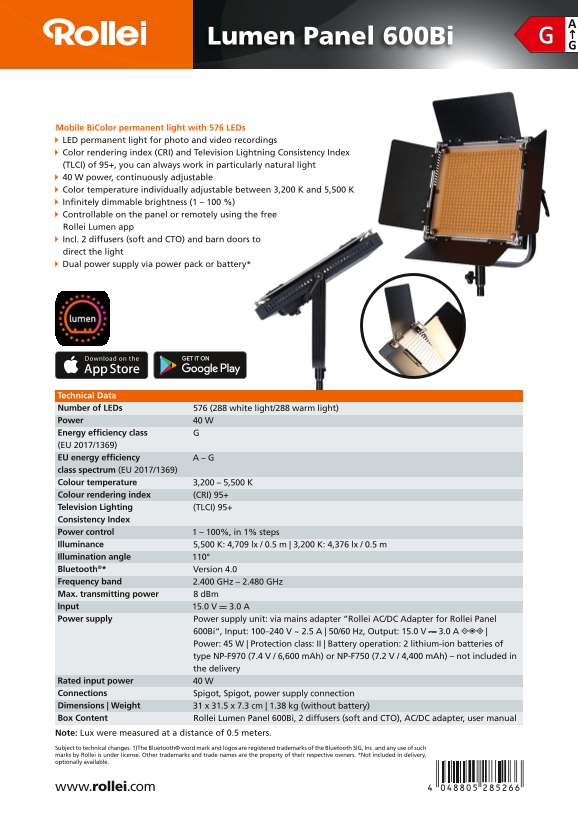

Page 1 Text Content
Lumen Panel 600Bi
Mobile Bi Color permanent light with 576 LEDs LED permanent light for photo and video recordings Color rendering index (CRI) and Television Lightning Consistency Index (TLCI) of 95+, you can always work in particularly natural light 40 W power, continuously adjustable Color temperature individually adjustable between 3,200 K and 5,500 K Infinitely dimmable brightness (1 – 100 %) Controllable on the panel or remotely using the free Rollei Lumen app Incl. 2 diffusers (soft and CTO) and barn doors to direct the light Dual power supply via power pack or battery*
Download on the
Technical Data Number of LEDs 576 (288 white light/288 warm light) Power 40 W Energy efficiency class (EU 2017/1369) EU energy efficiency A – G class spectrum (EU 2017/1369) Colour temperature 3,200 – 5,500 K Colour rendering index (CRI) 95+ Television Lighting (TLCI) 95+ Consistency Index Power control 1 – 100%, in 1% steps Illuminance 5,500 K: 4,709 lx / 0.5 m | 3,200 K: 4,376 lx / 0.5 m Illumination angle 110° Bluetooth®* Version 4.0 Frequency band 2.400 GHz – 2.480 GHz Max. transmitting power 8 d Bm Input 15.0 V 3.0 A Power supply Power supply unit: via mains adapter ”Rollei AC/DC Adapter for Rollei Panel
600Bi“, Input: 100–240 V ~ 2.5 A | 50/60 Hz, Output: 15.0 V 3.0 A | Power: 45 W | Protection class: II | Battery operation: 2 lithium-ion batteries of type NP-F970 (7.4 V / 6,600 m Ah) or NP-F750 (7.2 V / 4,400 m Ah) – not included in the delivery
Rated input power 40 W Connections Spigot, Spigot, power supply connection Dimensions | Weight 31 x 31.5 x 7.3 cm | 1.38 kg (without battery) Box Content Rollei Lumen Panel 600Bi, 2 diffusers (soft and CTO), AC/DC adapter, user manual Note: Lux were measured at a distance of 0.5 meters. Subject to technical changes. 1)The Bluetooth® word mark and logos are registered trademarks of the Bluetooth SIG, Inc. and any use of such marks by Rollei is under license. Other trademarks and trade names are the property of their respective owners. *Not included in delivery, optionally available.
www.rollei.com
Page Summary Contents For Rollei Lumen Panel 600Bi Data Sheet (EN)
Manual Details
| Brand | Rollei |
|---|---|
| Pages | 1 |
| File Size | 274.67 KB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How can I adjust the light temperature and brightness?
You can individually adjust color temperature between 3,200 K and 5,500 K, and dim the brightness from 1% to 100% in 1% steps.
What is the device's performance regarding color accuracy?
It has a Colour Rendering Index (CRI) and Television Lighting Consistency Index (TLCI) of 95+, ensuring natural light quality.
Can this panel be powered by mains electricity or portable batteries?
It supports dual power supply using an AC/DC adapter attached to mains or two specified lithium-ion batteries (sold separately).
How is the unit controlled and connected?
You can control it locally on the panel, or remotely using the free Rollei Lumen app via Bluetooth Version 4.0.
