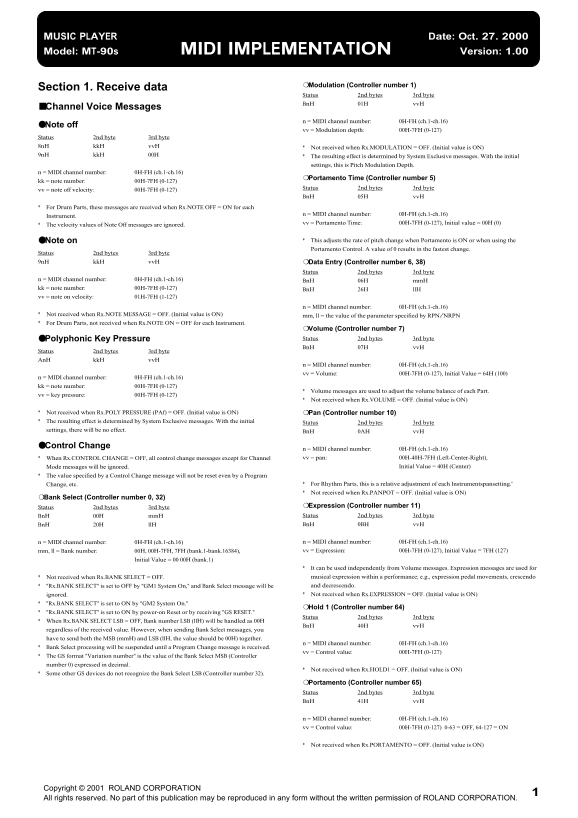

Roland MT-90S Music Player MIDI Implementation User's Manual

MUSIC PLAYER Date: Oct. 27. 2000 Model: MT-90s MIDI IMPLEMENTATION Version: 1.00

❍Modulation (Controller number 1)

Section 1. Receive data

Status 2nd bytes 3rd byte Bn H 01H vv H

■Channel Voice Messages

n = MIDI channel number: 0H-FH (ch.1-ch.16)

●Note off

vv = Modulation depth: 00H-7FH (0-127)

Status 2nd byte 3rd byte 8n H kk H vv H Not received when Rx.MODULATION = OFF. (Initial value is ON) 9n H kk H 00H The resulting effect is determined by System Exclusive messages. With the initial

settings, this is Pitch Modulation Depth.

n = MIDI channel number: 0H-FH (ch.1-ch.16)

❍Portamento Time (Controller number 5)

kk = note number: 00H-7FH (0-127)

Status 2nd bytes 3rd byte

vv = note off velocity: 00H-7FH (0-127)

Bn H 05H vv H

For Drum Parts, these messages are received when Rx.NOTE OFF = ON for each

n = MIDI channel number: 0H-FH (ch.1-ch.16)

Instrument.

vv = Portamento Time: 00H-7FH (0-127), Initial value = 00H (0)

The velocity values of Note Off messages are ignored.

●Note on This adjusts the rate of pitch change when Portamento is ON or when using the Portamento Control. A value of 0 results in the fastest change.

Status 2nd bytes 3rd byte 9n H kk H vv H ❍Data Entry (Controller number 6, 38)

Status 2nd bytes 3rd byte

n = MIDI channel number: 0H-FH (ch.1-ch.16) Bn H 06H mm H kk = note number: 00H-7FH (0-127) Bn H 26H ll H vv = note on velocity: 01H-7FH (1-127)

n = MIDI channel number: 0H-FH (ch.1-ch.16)

Not received when Rx.NOTE MESSAGE = OFF. (Initial value is ON) mm, ll = the value of the parameter specified by RPN/NRPN For Drum Parts, not received when Rx.NOTE ON = OFF for each Instrument.

❍Volume (Controller number 7) ●Polyphonic Key Pressure Status 2nd bytes 3rd byte Bn H 07H vv H

Status 2nd bytes 3rd byte

An H kk H vv H

n = MIDI channel number: 0H-FH (ch.1-ch.16) vv = Volume: 00H-7FH (0-127), Initial Value = 64H (100)

n = MIDI channel number: 0H-FH (ch.1-ch.16) kk = note number: 00H-7FH (0-127)

Volume messages are used to adjust the volume balance of each Part.

vv = key pressure: 00H-7FH (0-127)

Not received when Rx.VOLUME = OFF. (Initial value is ON)

Not received when Rx.POLY PRESSURE (PAf) = OFF. (Initial value is ON) ❍Pan (Controller number 10) The resulting effect is determined by System Exclusive messages. With the initial Status 2nd bytes 3rd byte settings, there will be no effect. Bn H 0AH vv H

●Control Change

n = MIDI channel number: 0H-FH (ch.1-ch.16) When Rx.CONTROL CHANGE = OFF, all control change messages except for Channel vv = pan: 00H-40H-7FH (Left-Center-Right),

Mode messages will be ignored. Initial Value = 40H (Center)

The value specified by a Control Change message will not be reset even by a Program

Change, etc. For Rhythm Parts, this is a relative adjustment of each Instrumentspansetting.' Not received when Rx.PANPOT = OFF. (Initial value is ON)

❍Bank Select (Controller number 0, 32)

Status 2nd bytes 3rd byte ❍Expression (Controller number 11) Bn H 00H mm H Status 2nd bytes 3rd byte Bn H 20H ll H Bn H 0BH vv H

n = MIDI channel number: 0H-FH (ch.1-ch.16) n = MIDI channel number: 0H-FH (ch.1-ch.16) mm, ll = Bank number: 00H, 00H-7FH, 7FH (bank.1-bank.16384), vv = Expression: 00H-7FH (0-127), Initial Value = 7FH (127)

Initial Value = 00 00H (bank.1)

It can be used independently from Volume messages. Expression messages are used for Not received when Rx.BANK SELECT = OFF. musical expression within a performance; e.g., expression pedal movements, crescendo "Rx.BANK SELECT" is set to OFF by "GM1 System On," and Bank Select message will be and decrescendo. ignored. Not received when Rx.EXPRESSION = OFF. (Initial value is ON)

"Rx.BANK SELECT" is set to ON by "GM2 System On."

❍Hold 1 (Controller number 64)

"Rx.BANK SELECT" is set to ON by power-on Reset or by receiving "GS RESET."

Status 2nd bytes 3rd byte

When Rx.BANK SELECT LSB = OFF, Bank number LSB (ll H) will be handled as 00H

Bn H 40H vv H

regardless of the received value. However, when sending Bank Select messages, you have to send both the MSB (mm H) and LSB (ll H, the value should be 00H) together.

n = MIDI channel number: 0H-FH (ch.1-ch.16)

Bank Select processing will be suspended until a Program Change message is received.

vv = Control value: 00H-7FH (0-127)

The GS format "Variation number" is the value of the Bank Select MSB (Controller number 0) expressed in decimal.

Not received when Rx.HOLD1 = OFF. (Initial value is ON)

Some other GS devices do not recognize the Bank Select LSB (Controller number 32).

❍Portamento (Controller number 65)

Status 2nd bytes 3rd byte

Bn H 41H vv H

n = MIDI channel number: 0H-FH (ch.1-ch.16) vv = Control value: 00H-7FH (0-127) 0-63 = OFF, 64-127 = ON

Not received when Rx.PORTAMENTO = OFF. (Initial value is ON)
