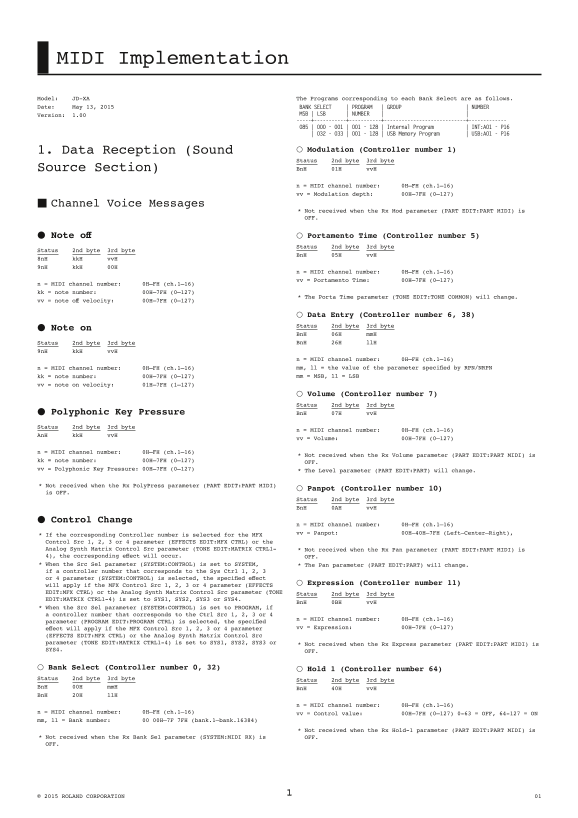

Roland JD-XA MIDI Implementation User's Manual

MIDI Implementation Model: JD-XA The Programs corresponding to each Bank Select are as follows. Date: May 13, 2015 BANK SELECT | PROGRAM | GROUP | NUMBER

Version: 1.00 MSB | LSB | NUMBER | |

085 | 000 - 001 | 001 - 128 | Internal Program | INT:A01 - P16 | 032 - 033 | 001 - 128 | USB Memory Program | USB:A01 - P16

1. Data Reception (Sound Modulation (Controller number 1) Status 2nd byte 3rd byte Source Section) Bn H 01H vv H n = MIDI channel number: 0H–FH (ch.1–16) vv = Modulation depth: 00H–7FH (0–127)

Channel Voice Messages

Not received when the Rx Mod parameter (PART EDIT:PART MIDI) is OFF.

Note off Portamento Time (Controller number 5) Status 2nd byte 3rd byte

Status 2nd byte 3rd byte

Bn H 05H vv H

8n H kk H vv H 9n H kk H 00H

n = MIDI channel number: 0H–FH (ch.1–16) vv = Portamento Time: 00H–7FH (0–127)

n = MIDI channel number: 0H–FH (ch.1–16) kk = note number: 00H–7FH (0–127)

The Porta Time parameter (TONE EDIT:TONE COMMON) will change.

vv = note off velocity: 00H–7FH (0–127)

Data Entry (Controller number 6, 38) Status 2nd byte 3rd byte

Note on

Bn H 06H mm H Status 2nd byte 3rd byte Bn H 26H ll H

9n H kk H vv H

n = MIDI channel number: 0H–FH (ch.1–16) n = MIDI channel number: 0H–FH (ch.1–16) mm, ll = the value of the parameter specified by RPN/NRPN kk = note number: 00H–7FH (0–127) mm = MSB, ll = LSB

vv = note on velocity: 01H–7FH (1–127)

Volume (Controller number 7) Status 2nd byte 3rd byte

Polyphonic Key Pressure Bn H 07H vv H Status 2nd byte 3rd byte

n = MIDI channel number: 0H–FH (ch.1–16)

An H kk H vv H

vv = Volume: 00H–7FH (0–127)

n = MIDI channel number: 0H–FH (ch.1–16)

Not received when the Rx Volume parameter (PART EDIT:PART MIDI) is

kk = note number: 00H–7FH (0–127) OFF. vv = Polyphonic Key Pressure: 00H–7FH (0–127) The Level parameter (PART EDIT:PART) will change.

Not received when the Rx Poly Press parameter (PART EDIT:PART MIDI)

Panpot (Controller number 10)

is OFF.

Status 2nd byte 3rd byte Bn H 0AH vv H

Control Change

n = MIDI channel number: 0H–FH (ch.1–16) If the corresponding Controller number is selected for the MFX vv = Panpot: 00H–40H–7FH (Left–Center–Right),

Control Src 1, 2, 3 or 4 parameter (EFFECTS EDIT:MFX CTRL) or the Analog Synth Matrix Control Src parameter (TONE EDIT:MATRIX CTRL1- Not received when the Rx Pan parameter (PART EDIT:PART MIDI) is 4), the corresponding effect will occur. OFF. When the Src Sel parameter (SYSTEM:CONTROL) is set to SYSTEM, The Pan parameter (PART EDIT:PART) will change. if a controller number that corresponds to the Sys Ctrl 1, 2, 3 or 4 parameter (SYSTEM:CONTROL) is selected, the specified effect

will apply if the MFX Control Src 1, 2, 3 or 4 parameter (EFFECTS Expression (Controller number 11)

EDIT:MFX CTRL) or the Analog Synth Matrix Control Src parameter (TONE Status 2nd byte 3rd byte EDIT:MATRIX CTRL1-4) is set to SYS1, SYS2, SYS3 or SYS4.

Bn H 0BH vv H

When the Src Sel parameter (SYSTEM:CONTROL) is set to PROGRAM, if a controller number that corresponds to the Ctrl Src 1, 2, 3 or 4

n = MIDI channel number: 0H–FH (ch.1–16)

parameter (PROGRAM EDIT:PROGRAM CTRL) is selected, the specified

effect will apply if the MFX Control Src 1, 2, 3 or 4 parameter vv = Expression: 00H–7FH (0–127)

(EFFECTS EDIT:MFX CTRL) or the Analog Synth Matrix Control Src parameter (TONE EDIT:MATRIX CTRL1-4) is set to SYS1, SYS2, SYS3 or Not received when the Rx Express parameter (PART EDIT:PART MIDI) is SYS4. OFF.

Bank Select (Controller number 0, 32) Hold 1 (Controller number 64) Status 2nd byte 3rd byte Status 2nd byte 3rd byte Bn H 00H mm H Bn H 40H vv H Bn H 20H ll H

n = MIDI channel number: 0H–FH (ch.1–16)

n = MIDI channel number: 0H–FH (ch.1–16) vv = Control value: 00H–7FH (0–127) 0-63 = OFF, 64-127 = ON mm, ll = Bank number: 00 00H–7F 7FH (bank.1–bank.16384)

Not received when the Rx Hold-1 parameter (PART EDIT:PART MIDI) is

Not received when the Rx Bank Sel parameter (SYSTEM:MIDI RX) is OFF. OFF.

© 2015 ROLAND CORPORATION
