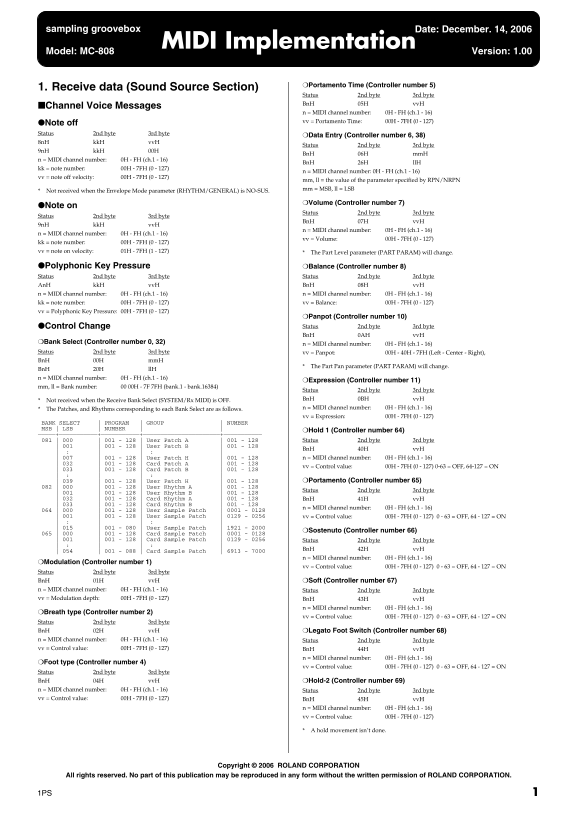

sampling groovebox Date: December. 14, 2006
MIDI Implementation
Model: MC-808 Version: 1.00
❍Portamento Time (Controller number 5)
1. Receive data (Sound Source Section)
Status 2nd byte 3rd byte Bn H 05H vv H
■Channel Voice Messages
n = MIDI channel number: 0H - FH (ch.1 - 16) vv = Portamento Time: 00H - 7FH (0 - 127)
●Note off Status 2nd byte 3rd byte
❍Data Entry (Controller number 6, 38)
8n H kk H vv H
Status 2nd byte 3rd byte
9n H kk H 00H
Bn H 06H mm H
n = MIDI channel number: 0H - FH (ch.1 - 16)
Bn H 26H ll H
kk = note number: 00H - 7FH (0 - 127)
n = MIDI channel number: 0H - FH (ch.1 - 16)
vv = note off velocity: 00H - 7FH (0 - 127)
mm, ll = the value of the parameter specified by RPN/NRPN Not received when the Envelope Mode parameter (RHYTHM/GENERAL) is NO-SUS. mm = MSB, ll = LSB
❍Volume (Controller number 7)
●Note on
Status 2nd byte 3rd byte
Status 2nd byte 3rd byte
Bn H 07H vv H
9n H kk H vv H
n = MIDI channel number: 0H - FH (ch.1 - 16)
n = MIDI channel number: 0H - FH (ch.1 - 16)
vv = Volume: 00H - 7FH (0 - 127)
kk = note number: 00H - 7FH (0 - 127) vv = note on velocity: 01H - 7FH (1 - 127) The Part Level parameter (PART PARAM) will change.
●Polyphonic Key Pressure ❍Balance (Controller number 8) Status 2nd byte 3rd byte Status 2nd byte 3rd byte An H kk H vv H Bn H 08H vv H n = MIDI channel number: 0H - FH (ch.1 - 16) n = MIDI channel number: 0H - FH (ch.1 - 16) kk = note number: 00H - 7FH (0 - 127) vv = Balance: 00H - 7FH (0 - 127) vv = Polyphonic Key Pressure: 00H - 7FH (0 - 127)
❍Panpot (Controller number 10) ●Control Change Status 2nd byte 3rd byte Bn H 0AH vv H
❍Bank Select (Controller number 0, 32) n = MIDI channel number: 0H - FH (ch.1 - 16) Status 2nd byte 3rd byte vv = Panpot: 00H - 40H - 7FH (Left - Center - Right), Bn H 00H mm H
The Part Pan parameter (PART PARAM) will change.
Bn H 20H ll H n = MIDI channel number: 0H - FH (ch.1 - 16)
❍Expression (Controller number 11)
mm, ll = Bank number: 00 00H - 7F 7FH (bank.1 - bank.16384)
Status 2nd byte 3rd byte Not received when the Receive Bank Select (SYSTEM/Rx MIDI) is OFF. Bn H 0BH vv H The Patches, and Rhythms corresponding to each Bank Select are as follows. n = MIDI channel number: 0H - FH (ch.1 - 16) vv = Expression: 00H - 7FH (0 - 127)
BANK SELECT | PROGRAM | GROUP | NUMBER MSB | LSB | NUMBER | |
❍Hold 1 (Controller number 64)
—————+———————————+———————————+——————————————————————+——————————— 081 | 000 | 001 - 128 | User Patch A | 001 - 128 Status 2nd byte 3rd byte | 001 | 001 - 128 | User Patch B | 001 - 128
Bn H 40H vv H
| : | | : | | 007 | 001 - 128 | User Patch H | 001 - 128 n = MIDI channel number: 0H - FH (ch.1 - 16) | 032 | 001 - 128 | Card Patch A | 001 - 128
vv = Control value: 00H - 7FH (0 - 127) 0-63 = OFF, 64-127 = ON
| 033 | 001 - 128 | Card Patch B | 001 - 128 | : | | : |
| 039 | 001 - 128 | User Patch H | 001 - 128 ❍Portamento (Controller number 65)
082 | 000 | 001 - 128 | User Rhythm A | 001 - 128
Status 2nd byte 3rd byte
| 001 | 001 - 128 | User Rhythm B | 001 - 128 | 032 | 001 - 128 | Card Rhythm A | 001 - 128 Bn H 41H vv H | 033 | 001 - 128 | Card Rhythm B | 001 - 128
n = MIDI channel number: 0H - FH (ch.1 - 16)
064 | 000 | 001 - 128 | User Sample Patch | 0001 - 0128 | 001 | 001 - 128 | User Sample Patch | 0129 - 0256 vv = Control value: 00H - 7FH (0 - 127) 0 - 63 = OFF, 64 - 127 = ON | : | | : | | 015 | 001 - 080 | User Sample Patch | 1921 - 2000
❍Sostenuto (Controller number 66)
065 | 000 | 001 - 128 | Card Sample Patch | 0001 - 0128 | 001 | 001 - 128 | Card Sample Patch | 0129 - 0256 Status 2nd byte 3rd byte | : | | : |
| 054 | 001 - 088 | Card Sample Patch | 6913 - 7000 Bn H 42H vv H n = MIDI channel number: 0H - FH (ch.1 - 16)
❍Modulation (Controller number 1)
vv = Control value: 00H - 7FH (0 - 127) 0 - 63 = OFF, 64 - 127 = ON
Status 2nd byte 3rd byte Bn H 01H vv H ❍Soft (Controller number 67) n = MIDI channel number: 0H - FH (ch.1 - 16) Status 2nd byte 3rd byte vv = Modulation depth: 00H - 7FH (0 - 127) Bn H 43H vv H
n = MIDI channel number: 0H - FH (ch.1 - 16)
❍Breath type (Controller number 2)
vv = Control value: 00H - 7FH (0 - 127) 0 - 63 = OFF, 64 - 127 = ON
Status 2nd byte 3rd byte Bn H 02H vv H ❍Legato Foot Switch (Controller number 68) n = MIDI channel number: 0H - FH (ch.1 - 16) Status 2nd byte 3rd byte vv = Control value: 00H - 7FH (0 - 127) Bn H 44H vv H
n = MIDI channel number: 0H - FH (ch.1 - 16)
❍Foot type (Controller number 4)
vv = Control value: 00H - 7FH (0 - 127) 0 - 63 = OFF, 64 - 127 = ON
Status 2nd byte 3rd byte Bn H 04H vv H ❍Hold-2 (Controller number 69) n = MIDI channel number: 0H - FH (ch.1 - 16) Status 2nd byte 3rd byte vv = Control value: 00H - 7FH (0 - 127) Bn H 45H vv H
n = MIDI channel number: 0H - FH (ch.1 - 16) vv = Control value: 00H - 7FH (0 - 127)
A hold movement isn’t done.
Copyright © 2006 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
