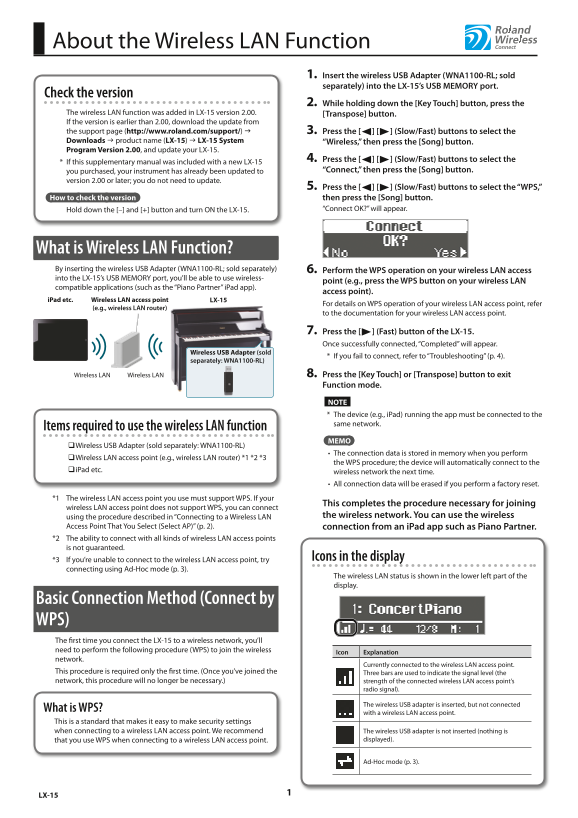

Roland LX-15 Digital Piano Wireless Application Guide

About the Wireless LAN Function

1. Insert the wireless USB Adapter (WNA1100-RL; sold separately) into the LX-15’s USB MEMORY port.

Check the version

2. While holding down the [Key Touch] button, press the

The wireless LAN function was added in LX-15 version 2.00. [Transpose] button. If the version is earlier than 2.00, download the update from the support page (http://www.roland.com/support/) g 3. Press the [ ] [ ] (Slow/Fast) buttons to select the Downloads g product name (LX-15) g LX-15 System “Wireless,” then press the [Song] button. Program Version 2.00, and update your LX-15.

4. Press the [ ] [ ] (Slow/Fast) buttons to select the

* If this supplementary manual was included with a new LX-15

you purchased, your instrument has already been updated to “Connect,” then press the [Song] button.

version 2.00 or later; you do not need to update.

5. Press the [ ] [ ] (Slow/Fast) buttons to select the “WPS,”

How to check the version then press the [Song] button.

Hold down the [–] and [+] button and turn ON the LX-15. “Connect OK?” will appear.

What is Wireless LAN Function? By inserting the wireless USB Adapter (WNA1100-RL; sold separately) 6. Perform the WPS operation on your wireless LAN access into the LX-15’s USB MEMORY port, you’ll be able to use wireless-

point (e.g., press the WPS button on your wireless LAN

compatible applications (such as the “Piano Partner” i Pad app).

access point).

i Pad etc. Wireless LAN access point LX-15

For details on WPS operation of your wireless LAN access point, refer

(e.g., wireless LAN router)

to the documentation for your wireless LAN access point.

7. Press the [ ] (Fast) button of the LX-15. Once successfully connected, “Completed” will appear.

Wireless USB Adapter (sold

* If you fail to connect, refer to “Troubleshooting” (p. 4).

separately: WNA1100-RL)

Wireless LAN Wireless LAN 8. Press the [Key Touch] or [Transpose] button to exit Function mode. NOTE * The device (e.g., i Pad) running the app must be connected to the same network.

Items required to use the wireless LAN function

‰Wireless USB Adapter (sold separately: WNA1100-RL)

• The connection data is stored in memory when you perform

‰Wireless LAN access point (e.g., wireless LAN router) *1 *2 *3

the WPS procedure; the device will automatically connect to the

‰i Pad etc.

wireless network the next time. • All connection data will be erased if you perform a factory reset.

*1 The wireless LAN access point you use must support WPS. If your

This completes the procedure necessary for joining

wireless LAN access point does not support WPS, you can connect

using the procedure described in “Connecting to a Wireless LAN the wireless network. You can use the wireless

Access Point That You Select (Select AP)” (p. 2). connection from an i Pad app such as Piano Partner. *2 The ability to connect with all kinds of wireless LAN access points is not guaranteed.

*3 If you’re unable to connect to the wireless LAN access point, try Icons in the display

connecting using Ad-Hoc mode (p. 3).

The wireless LAN status is shown in the lower left part of the display.

Basic Connection Method (Connect by WPS) The first time you connect the LX-15 to a wireless network, you’ll need to perform the following procedure (WPS) to join the wireless

Icon Explanation

network.

Currently connected to the wireless LAN access point.

This procedure is required only the first time. (Once you’ve joined the Three bars are used to indicate the signal level (the network, this procedure will no longer be necessary.) strength of the connected wireless LAN access point’s

radio signal).

The wireless USB adapter is inserted, but not connected

What is WPS?

with a wireless LAN access point.

This is a standard that makes it easy to make security settings when connecting to a wireless LAN access point. We recommend The wireless USB adapter is not inserted (nothing is

that you use WPS when connecting to a wireless LAN access point. displayed).

Ad-Hoc mode (p. 3).

LX-15
