Roland HP-201 Digital Piano Assembly Guide
Summary
This comprehensive assembly manual provides detailed, multilingual instructions for setting up and stabilizing your musical instrument on a sturdy, professional stand system. It guides users through modular construction—including attaching side boards and pedal accessories—and safely mounting the piano or keyboard unit itself. The guide also covers essential steps like cable management, adjusting levelers for optimal placement, and proper procedures for moving the entire system. This manual is essential for owners who require expert setup guidance to ensure maximum stability and operational safety of their instrument stand.

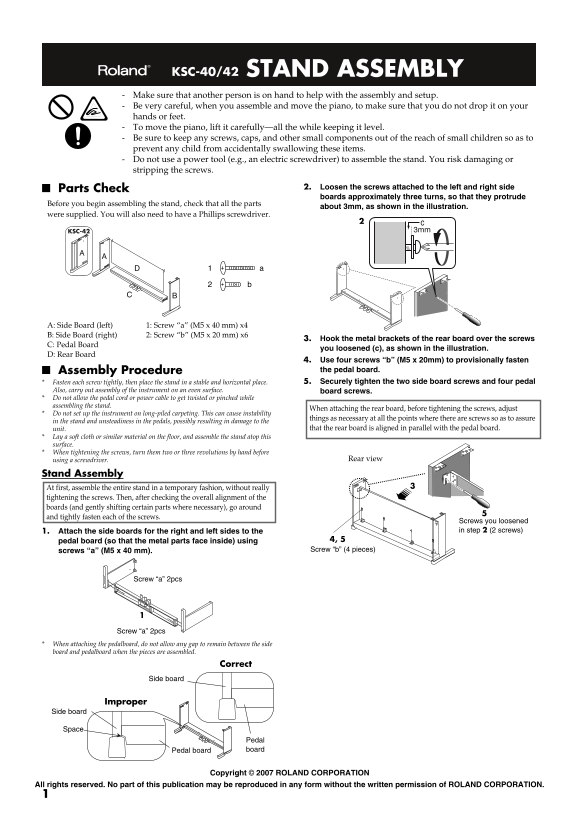

Page 1 Text Content
KSC-4042.fm ページ ２００８年８月７日 木曜日 午後５時１０分
KSC-40/42 STAND ASSEMBLY Make sure that another person is on hand to help with the assembly and setup. Be very careful, when you assemble and move the piano, to make sure that you do not drop it on your hands or feet. To move the piano, lift it carefully—all the while keeping it level. Be sure to keep any screws, caps, and other small components out of the reach of small children so as to prevent any child from accidentally swallowing these items. Do not use a power tool (e.g., an electric screwdriver) to assemble the stand. You risk damaging or stripping the screws.
Parts Check 2. Loosen the screws attached to the left and right side boards approximately three turns, so that they protrude
Before you begin assembling the stand, check that all the parts
about 3mm, as shown in the illustration.
were supplied. You will also need to have a Phillips screwdriver.
KSC-42
A: Side Board (left) 1: Screw “a” (M5 x 40 mm) x4 B: Side Board (right) 2: Screw “b” (M5 x 20 mm) x6
3. Hook the metal brackets of the rear board over the screws
C: Pedal Board
you loosened (c), as shown in the illustration.
D: Rear Board
4. Use four screws “b” (M5 x 20mm) to provisionally fasten Assembly Procedure the pedal board. Fasten each screw tightly, then place the stand in a stable and horizontal place. 5. Securely tighten the two side board screws and four pedal
Also, carry out assembly of the instrument on an even surface. board screws. Do not allow the pedal cord or power cable to get twisted or pinched while assembling the stand.
When attaching the rear board, before tightening the screws, adjust
Do not set up the instrument on long-piled carpeting. This can cause instability
things as necessary at all the points where there are screws so as to assure
in the stand and unsteadiness in the pedals, possibly resulting in damage to the
unit. that the rear board is aligned in parallel with the pedal board.
Lay a soft cloth or similar material on the floor, and assemble the stand atop this surface. When tightening the screws, turn them two or three revolutions by hand before
using a screwdriver. Rear view
Stand Assembly At first, assemble the entire stand in a temporary fashion, without really tightening the screws. Then, after checking the overall alignment of the boards (and gently shifting certain parts where necessary), go around and tightly fasten each of the screws.
Screws you loosened 1. Attach the side boards for the right and left sides to the in step 2 (2 screws)
pedal board (so that the metal parts face inside) using 4, 5 screws “a” (M5 x 40 mm). Screw “b” (4 pieces)
Screw “a” 2pcs
Screw “a” 2pcs
When attaching the pedalboard, do not allow any gap to remain between the side board and pedalboard when the pieces are assembled.
Correct
Side board
Improper
Side board
Space
Pedal board Pedal board
Copyright © 2007 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
Page Summary Contents For Roland HP-201 Digital Piano Assembly Guide
Manual Details
| Brand | Roland |
|---|---|
| Pages | 16 |
| File Size | 1.28 MB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What should I NOT use when assembling the stand?
Do not use power tools, such as an electric screwdriver, as this risks damaging or stripping the screws.
Is there any restriction on where I can place the stand?
No. You must assemble it on a stable and horizontal surface, bearing in mind that long-piled carpeting causes instability.
How do I safely move the piano setup?
First, disconnect all cables and raise the stand's adjuster. Then, lift the piano while keeping it level to avoid injury or damage.
What if my floor is uneven?
Lower the adjuster at the bottom of the pedal board until it touches the floor, or push it into the carpet for adjustment.
