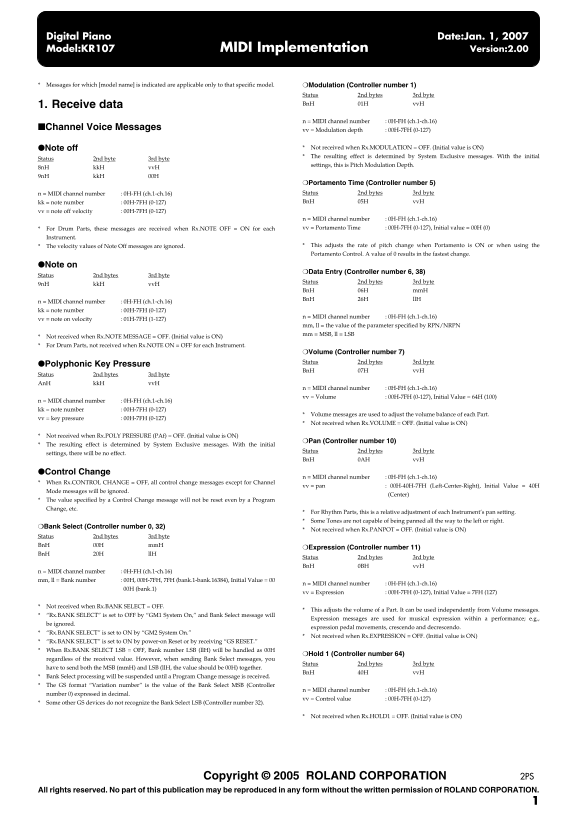

Roland KR-107 Digital Intelligent PianoMIDI Implementation User's Manual

Digital Piano Date:Jan. 1, 2007

Model:KR107 MIDI Implementation Version:2.00

Messages for which [model name] is indicated are applicable only to that specific model. ❍Modulation (Controller number 1)

Status 2nd bytes 3rd byte 1. Receive data Bn H 01H vv H

n = MIDI channel number : 0H-FH (ch.1-ch.16)

■Channel Voice Messages vv = Modulation depth : 00H-7FH (0-127)

●Note off Not received when Rx.MODULATION = OFF. (Initial value is ON) The resulting effect is determined by System Exclusive messages. With the initial

Status 2nd byte 3rd byte

settings, this is Pitch Modulation Depth.

8n H kk H vv H 9n H kk H 00H

❍Portamento Time (Controller number 5) n = MIDI channel number : 0H-FH (ch.1-ch.16) Status 2nd bytes 3rd byte kk = note number : 00H-7FH (0-127) Bn H 05H vv H

vv = note off velocity : 00H-7FH (0-127)

n = MIDI channel number : 0H-FH (ch.1-ch.16) For Drum Parts, these messages are received when Rx.NOTE OFF = ON for each vv = Portamento Time : 00H-7FH (0-127), Initial value = 00H (0)

Instrument.

The velocity values of Note Off messages are ignored. This adjusts the rate of pitch change when Portamento is ON or when using the Portamento Control. A value of 0 results in the fastest change.

●Note on

❍Data Entry (Controller number 6, 38)

Status 2nd bytes 3rd byte

Status 2nd bytes 3rd byte

9n H kk H vv H

Bn H 06H mm H Bn H 26H ll H

n = MIDI channel number : 0H-FH (ch.1-ch.16) kk = note number : 00H-7FH (0-127)

n = MIDI channel number : 0H-FH (ch.1-ch.16)

vv = note on velocity : 01H-7FH (1-127)

mm, ll = the value of the parameter specified by RPN/NRPN mm = MSB, ll = LSB

Not received when Rx.NOTE MESSAGE = OFF. (Initial value is ON) For Drum Parts, not received when Rx.NOTE ON = OFF for each Instrument.

❍Volume (Controller number 7) Status 2nd bytes 3rd byte

●Polyphonic Key Pressure

Bn H 07H vv H

Status 2nd bytes 3rd byte An H kk H vv H

n = MIDI channel number : 0H-FH (ch.1-ch.16) vv = Volume : 00H-7FH (0-127), Initial Value = 64H (100)

n = MIDI channel number : 0H-FH (ch.1-ch.16) kk = note number : 00H-7FH (0-127)

Volume messages are used to adjust the volume balance of each Part.

vv = key pressure : 00H-7FH (0-127)

Not received when Rx.VOLUME = OFF. (Initial value is ON)

Not received when Rx.POLY PRESSURE (PAf) = OFF. (Initial value is ON)

❍Pan (Controller number 10)

The resulting effect is determined by System Exclusive messages. With the initial

Status 2nd bytes 3rd byte

settings, there will be no effect.

Bn H 0AH vv H

●Control Change

n = MIDI channel number : 0H-FH (ch.1-ch.16)

When Rx.CONTROL CHANGE = OFF, all control change messages except for Channel

vv = pan : 00H-40H-7FH (Left-Center-Right), Initial Value = 40H

Mode messages will be ignored.

(Center)

The value specified by a Control Change message will not be reset even by a Program Change, etc.

For Rhythm Parts, this is a relative adjustment of each Instrument’s pan setting. Some Tones are not capable of being panned all the way to the left or right.

❍Bank Select (Controller number 0, 32)

Not received when Rx.PANPOT = OFF. (Initial value is ON)

Status 2nd bytes 3rd byte Bn H 00H mm H

❍Expression (Controller number 11)

Bn H 20H ll H

Status 2nd bytes 3rd byte Bn H 0BH vv H

n = MIDI channel number : 0H-FH (ch.1-ch.16) mm, ll = Bank number : 00H, 00H-7FH, 7FH (bank.1-bank.16384), Initial Value = 00

n = MIDI channel number : 0H-FH (ch.1-ch.16)

00H (bank.1)

vv = Expression : 00H-7FH (0-127), Initial Value = 7FH (127)

Not received when Rx.BANK SELECT = OFF.

This adjusts the volume of a Part. It can be used independently from Volume messages.

“Rx.BANK SELECT” is set to OFF by “GM1 System On,” and Bank Select message will

Expression messages are used for musical expression within a performance; e.g.,

be ignored.

expression pedal movements, crescendo and decrescendo.

“Rx.BANK SELECT” is set to ON by “GM2 System On.”

Not received when Rx.EXPRESSION = OFF. (Initial value is ON)

“Rx.BANK SELECT” is set to ON by power-on Reset or by receiving “GS RESET.” When Rx.BANK SELECT LSB = OFF, Bank number LSB (ll H) will be handled as 00H

❍Hold 1 (Controller number 64)

regardless of the received value. However, when sending Bank Select messages, you

Status 2nd bytes 3rd byte

have to send both the MSB (mm H) and LSB (ll H, the value should be 00H) together.

Bn H 40H vv H

Bank Select processing will be suspended until a Program Change message is received. The GS format “Variation number” is the value of the Bank Select MSB (Controller

n = MIDI channel number : 0H-FH (ch.1-ch.16)

number 0) expressed in decimal.

vv = Control value : 00H-7FH (0-127)

Some other GS devices do not recognize the Bank Select LSB (Controller number 32).

Not received when Rx.HOLD1 = OFF. (Initial value is ON)
