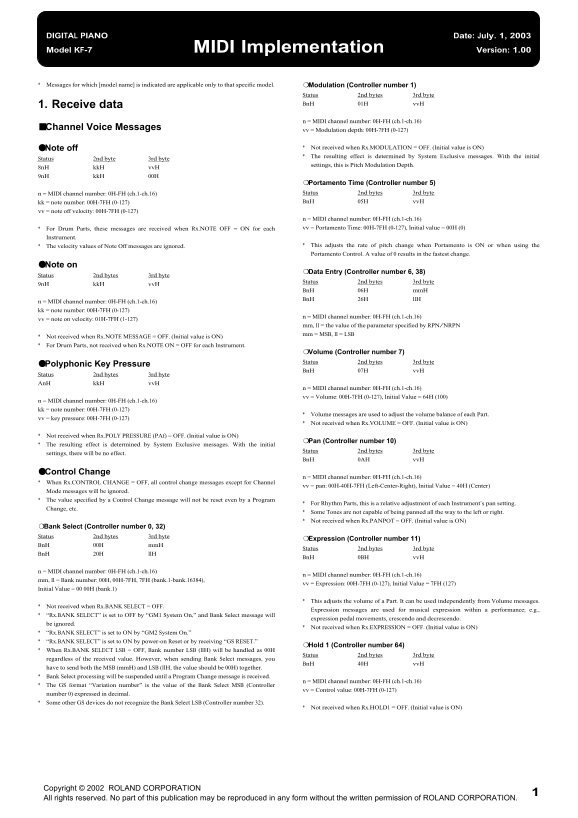

Roland KF-7 Digital Intelligent Portable Piano MIDI Implementation User's Manual

DIGITAL PIANO Date: July. 1, 2003

Model KF-7 MIDI Implementation Version: 1.00

Messages for which [model name] is indicated are applicable only to that specific model. ❍Modulation (Controller number 1)

Status 2nd bytes 3rd byte 1. Receive data Bn H 01H vv H

n = MIDI channel number: 0H-FH (ch.1-ch.16)

■Channel Voice Messages vv = Modulation depth: 00H-7FH (0-127)

●Note off Not received when Rx.MODULATION = OFF. (Initial value is ON) The resulting effect is determined by System Exclusive messages. With the initial

Status 2nd byte 3rd byte

settings, this is Pitch Modulation Depth.

8n H kk H vv H 9n H kk H 00H

❍Portamento Time (Controller number 5) n = MIDI channel number: 0H-FH (ch.1-ch.16) Status 2nd bytes 3rd byte kk = note number: 00H-7FH (0-127) Bn H 05H vv H

vv = note off velocity: 00H-7FH (0-127)

n = MIDI channel number: 0H-FH (ch.1-ch.16) For Drum Parts, these messages are received when Rx.NOTE OFF = ON for each vv = Portamento Time: 00H-7FH (0-127), Initial value = 00H (0)

Instrument.

The velocity values of Note Off messages are ignored. This adjusts the rate of pitch change when Portamento is ON or when using the Portamento Control. A value of 0 results in the fastest change.

●Note on

❍Data Entry (Controller number 6, 38)

Status 2nd bytes 3rd byte

Status 2nd bytes 3rd byte

9n H kk H vv H

Bn H 06H mm H Bn H 26H ll H

n = MIDI channel number: 0H-FH (ch.1-ch.16) kk = note number: 00H-7FH (0-127)

n = MIDI channel number: 0H-FH (ch.1-ch.16)

vv = note on velocity: 01H-7FH (1-127)

mm, ll = the value of the parameter specified by RPN/NRPN mm = MSB, ll = LSB

Not received when Rx.NOTE MESSAGE = OFF. (Initial value is ON) For Drum Parts, not received when Rx.NOTE ON = OFF for each Instrument.

❍Volume (Controller number 7) Status 2nd bytes 3rd byte

●Polyphonic Key Pressure

Bn H 07H vv H

Status 2nd bytes 3rd byte

An H kk H vv H

n = MIDI channel number: 0H-FH (ch.1-ch.16) vv = Volume: 00H-7FH (0-127), Initial Value = 64H (100)

n = MIDI channel number: 0H-FH (ch.1-ch.16) kk = note number: 00H-7FH (0-127)

Volume messages are used to adjust the volume balance of each Part.

vv = key pressure: 00H-7FH (0-127)

Not received when Rx.VOLUME = OFF. (Initial value is ON)

Not received when Rx.POLY PRESSURE (PAf) = OFF. (Initial value is ON)

❍Pan (Controller number 10)

The resulting effect is determined by System Exclusive messages. With the initial

Status 2nd bytes 3rd byte

settings, there will be no effect.

Bn H 0AH vv H

●Control Change

n = MIDI channel number: 0H-FH (ch.1-ch.16)

When Rx.CONTROL CHANGE = OFF, all control change messages except for Channel

vv = pan: 00H-40H-7FH (Left-Center-Right), Initial Value = 40H (Center)

Mode messages will be ignored. The value specified by a Control Change message will not be reset even by a Program

For Rhythm Parts, this is a relative adjustment of each Instrument’s pan setting.

Change, etc.

Some Tones are not capable of being panned all the way to the left or right. Not received when Rx.PANPOT = OFF. (Initial value is ON)

❍Bank Select (Controller number 0, 32)

Status 2nd bytes 3rd byte

❍Expression (Controller number 11)

Bn H 00H mm H

Status 2nd bytes 3rd byte

Bn H 20H ll H

Bn H 0BH vv H

n = MIDI channel number: 0H-FH (ch.1-ch.16)

n = MIDI channel number: 0H-FH (ch.1-ch.16)

mm, ll = Bank number: 00H, 00H-7FH, 7FH (bank.1-bank.16384),

vv = Expression: 00H-7FH (0-127), Initial Value = 7FH (127)

Initial Value = 00 00H (bank.1)

This adjusts the volume of a Part. It can be used independently from Volume messages.

Not received when Rx.BANK SELECT = OFF.

Expression messages are used for musical expression within a performance; e.g.,

“Rx.BANK SELECT” is set to OFF by “GM1 System On,” and Bank Select message will

expression pedal movements, crescendo and decrescendo.

be ignored.

Not received when Rx.EXPRESSION = OFF. (Initial value is ON)

“Rx.BANK SELECT” is set to ON by “GM2 System On.” “Rx.BANK SELECT” is set to ON by power-on Reset or by receiving “GS RESET.”

❍Hold 1 (Controller number 64)

When Rx.BANK SELECT LSB = OFF, Bank number LSB (ll H) will be handled as 00H

Status 2nd bytes 3rd byte

regardless of the received value. However, when sending Bank Select messages, you

Bn H 40H vv H

have to send both the MSB (mm H) and LSB (ll H, the value should be 00H) together. Bank Select processing will be suspended until a Program Change message is received.

n = MIDI channel number: 0H-FH (ch.1-ch.16)

The GS format “Variation number” is the value of the Bank Select MSB (Controller

vv = Control value: 00H-7FH (0-127)

number 0) expressed in decimal. Some other GS devices do not recognize the Bank Select LSB (Controller number 32).

Not received when Rx.HOLD1 = OFF. (Initial value is ON)

1Copyright © 2002 ROLAND CORPORATION

All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
