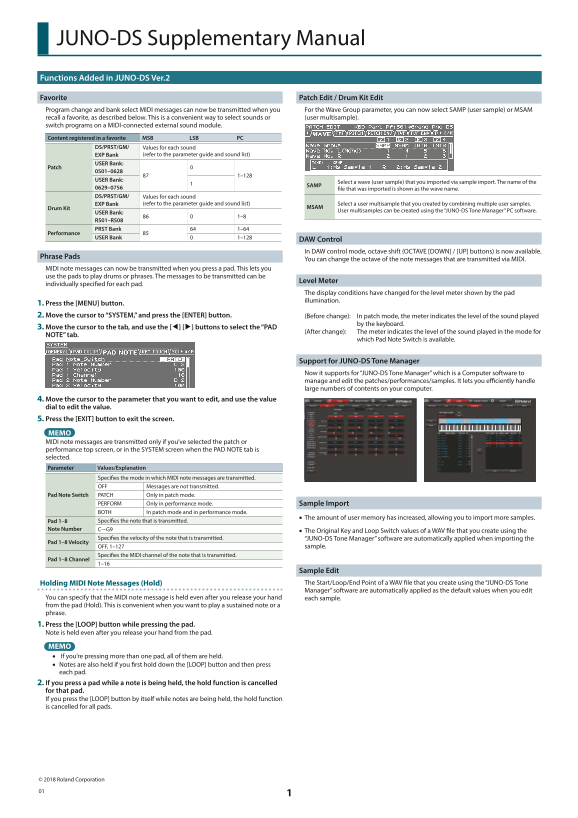

JUNO-DS Supplementary Manual Functions Added in JUNO-DS Ver.2 Favorite Patch Edit / Drum Kit Edit Program change and bank select MIDI messages can now be transmitted when you For the Wave Group parameter, you can now select SAMP (user sample) or MSAM recall a favorite, as described below. This is a convenient way to select sounds or (user multisample). switch programs on a MIDI-connected external sound module. Content registered in a favorite MSB LSB PC

DS/PRST/GM/ Values for each sound

EXP Bank (refer to the parameter guide and sound list)

USER Bank:

Patch

USER Bank:

Select a wave (user sample) that you imported via sample import. The name of the

0629–0756 file that was imported is shown as the wave name. DS/PRST/GM/ Values for each sound

EXP Bank (refer to the parameter guide and sound list) Select a user multisample that you created by combining multiple user samples.

Drum Kit MSAM

User multisamples can be created using the “JUNO-DS Tone Manager” PC software.

USER Bank:

R501–R508 PRST Bank 1–64

Performance

USER Bank 1–128

DAW Control In DAW control mode, octave shift (OCTAVE [DOWN] / [UP] buttons) is now available.

Phrase Pads

You can change the octave of the note messages that are transmitted via MIDI.

MIDI note messages can now be transmitted when you press a pad. This lets you use the pads to play drums or phrases. The messages to be transmitted can be

Level Meter

individually specified for each pad.

The display conditions have changed for the level meter shown by the pad illumination.

1. Press the [MENU] button. 2. Move the cursor to “SYSTEM,” and press the [ENTER] button. (Before change): In patch mode, the meter indicates the level of the sound played

by the keyboard.

3. Move the cursor to the tab, and use the [C] [A] buttons to select the “PAD

(After change): The meter indicates the level of the sound played in the mode for

NOTE” tab.

which Pad Note Switch is available.

Support for JUNO-DS Tone Manager Now it supports for “JUNO-DS Tone Manager” which is a Computer software to manage and edit the patches/performances/samples. It lets you efficiently handle large numbers of contents on your computer.

4. Move the cursor to the parameter that you want to edit, and use the value dial to edit the value. 5. Press the [EXIT] button to exit the screen. MEMO MIDI note messages are transmitted only if you’ve selected the patch or performance top screen, or in the SYSTEM screen when the PAD NOTE tab is selected. Parameter Values/Explanation

Specifies the mode in which MIDI note messages are transmitted. OFF Messages are not transmitted. Pad Note Switch PATCH Only in patch mode. PERFORM Only in performance mode. Sample Import BOTH In patch mode and in performance mode.

The amount of user memory has increased, allowing you to import more samples.

Pad 1–8 Specifies the note that is transmitted.

Note Number C-–G9

The Original Key and Loop Switch values of a WAV file that you create using the

Specifies the velocity of the note that is transmitted. “JUNO-DS Tone Manager” software are automatically applied when importing the

Pad 1–8 Velocity

OFF, 1–127 sample. Specifies the MIDI channel of the note that is transmitted.

Pad 1–8 Channel

Sample Edit Holding MIDI Note Messages (Hold) The Start/Loop/End Point of a WAV file that you create using the “JUNO-DS Tone Manager” software are automatically applied as the default values when you edit

You can specify that the MIDI note message is held even after you release your hand each sample. from the pad (Hold). This is convenient when you want to play a sustained note or a phrase. 1. Press the [LOOP] button while pressing the pad. Note is held even after you release your hand from the pad. MEMO If you’re pressing more than one pad, all of them are held. Notes are also held if you first hold down the [LOOP] button and then press each pad. 2. If you press a pad while a note is being held, the hold function is cancelled for that pad. If you press the [LOOP] button by itself while notes are being held, the hold function is cancelled for all pads.

© 2018 Roland Corporation
