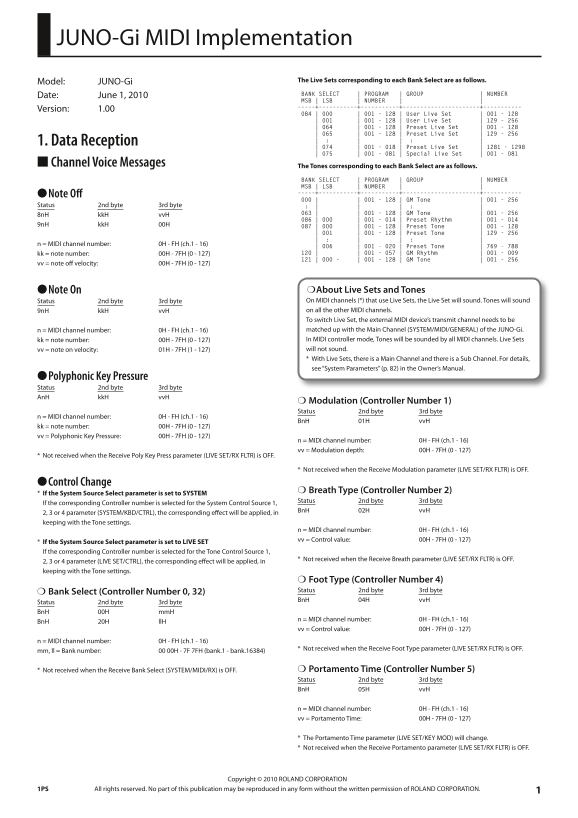

Page 1 Text Content
JUNO-Gi MIDI Implementation
Model: JUNO-Gi The Live Sets corresponding to each Bank Select are as follows. Date: June 1, 2010 BANK SELECT | PROGRAM | GROUP | NUMBER MSB | LSB | NUMBER | |
Version: 1.00
084 | 000 | 001 - 128 | User Live Set | 001 - 128 | 001 | 001 - 128 | User Live Set | 129 - 256 | 064 | 001 - 128 | Preset Live Set | 001 - 128 | 065 | 001 - 128 | Preset Live Set | 129 - 256 1. Data Reception | : | | : | | 074 | 001 - 018 | Preset Live Set | 1281 - 1298 | 075 | 001 - 081 | Special Live Set | 001 - 081
■■ Channel Voice Messages The Tones corresponding to each Bank Select are as follows.
BANK SELECT | PROGRAM | GROUP | NUMBER MSB | LSB | NUMBER | |
■●Note Off
000 | | 001 - 128 | GM Tone | 001 - 256
Status 2nd byte 3rd byte : | | | : |
8n H kk H vv H 063 | | 001 - 128 | GM Tone | 001 - 256 086 | 000 | 001 - 014 | Preset Rhythm | 001 - 014
9n H kk H 00H 087 | 000 | 001 - 128 | Preset Tone | 001 - 128
| 001 | 001 - 128 | Preset Tone | 129 - 256 | : | | : |
n = MIDI channel number: 0H - FH (ch.1 - 16)
| 006 | 001 - 020 | Preset Tone | 769 - 788 kk = note number: 00H - 7FH (0 - 127) 120 | | 001 - 057 | GM Rhythm | 001 - 009 121 | 000 - | 001 - 128 | GM Tone | 001 - 256
vv = note off velocity: 00H - 7FH (0 - 127)
■●Note On ■❍About Live Sets and Tones Status 2nd byte 3rd byte On MIDI channels (*) that use Live Sets, the Live Set will sound. Tones will sound 9n H kk H vv H on all the other MIDI channels. To switch Live Set, the external MIDI device’s transmit channel needs to be n = MIDI channel number: 0H - FH (ch.1 - 16) matched up with the Main Channel (SYSTEM/MIDI/GENERAL) of the JUNO-Gi. kk = note number: 00H - 7FH (0 - 127) In MIDI controller mode, Tones will be sounded by all MIDI channels. Live Sets vv = note on velocity: 01H - 7FH (1 - 127) will not sound. * With Live Sets, there is a Main Channel and there is a Sub Channel. For details, see “System Parameters” (p. 82) in the Owner’s Manual.
■●Polyphonic Key Pressure Status 2nd byte 3rd byte An H kk H vv H
■❍ Modulation (Controller Number 1) Status 2nd byte 3rd byte
n = MIDI channel number: 0H - FH (ch.1 - 16)
Bn H 01H vv H
kk = note number: 00H - 7FH (0 - 127) vv = Polyphonic Key Pressure: 00H - 7FH (0 - 127)
n = MIDI channel number: 0H - FH (ch.1 - 16) vv = Modulation depth: 00H - 7FH (0 - 127)
* Not received when the Receive Poly Key Press parameter (LIVE SET/RX FLTR) is OFF.
* Not received when the Receive Modulation parameter (LIVE SET/RX FLTR) is OFF.
■●Control Change
■❍ Breath Type (Controller Number 2)
* If the System Source Select parameter is set to SYSTEM
Status 2nd byte 3rd byte
If the corresponding Controller number is selected for the System Control Source 1,
Bn H 02H vv H
2, 3 or 4 parameter (SYSTEM/KBD/CTRL), the corresponding effect will be applied, in keeping with the Tone settings.
n = MIDI channel number: 0H - FH (ch.1 - 16) vv = Control value: 00H - 7FH (0 - 127)
* If the System Source Select parameter is set to LIVE SET If the corresponding Controller number is selected for the Tone Control Source 1,
* Not received when the Receive Breath parameter (LIVE SET/RX FLTR) is OFF.
2, 3 or 4 parameter (LIVE SET/CTRL), the corresponding effect will be applied, in keeping with the Tone settings.
■❍ Foot Type (Controller Number 4) ■❍ Bank Select (Controller Number 0, 32) Status 2nd byte 3rd byte Bn H 04H vv H
Status 2nd byte 3rd byte Bn H 00H mm H
n = MIDI channel number: 0H - FH (ch.1 - 16)
Bn H 20H ll H
vv = Control value: 00H - 7FH (0 - 127)
n = MIDI channel number: 0H - FH (ch.1 - 16)
* Not received when the Receive Foot Type parameter (LIVE SET/RX FLTR) is OFF.
mm, ll = Bank number: 00 00H - 7F 7FH (bank.1 - bank.16384)
* Not received when the Receive Bank Select (SYSTEM/MIDI/RX) is OFF. ■❍ Portamento Time (Controller Number 5) Status 2nd byte 3rd byte Bn H 05H vv H
n = MIDI channel number: 0H - FH (ch.1 - 16) vv = Portamento Time: 00H - 7FH (0 - 127)
* The Portamento Time parameter (LIVE SET/KEY MOD) will change. * Not received when the Receive Portamento parameter (LIVE SET/RX FLTR) is OFF.
Copyright © 2010 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.1PS
