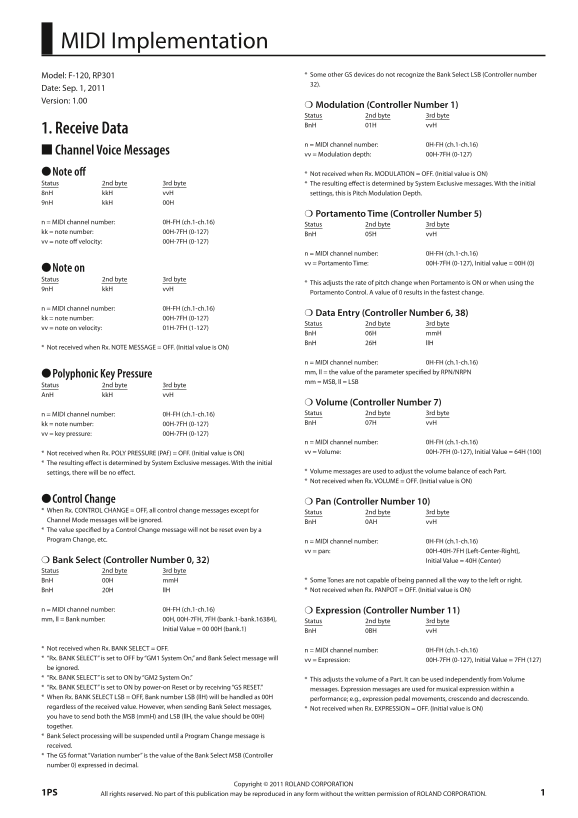

MIDI Implementation
Model: F-120, RP301 * Some other GS devices do not recognize the Bank Select LSB (Controller number 32).
Date: Sep. 1, 2011 Version: 1.00
■❍ Modulation (Controller Number 1) Status 2nd byte 3rd byte Bn H 01H vv H
1. Receive Data
n = MIDI channel number: 0H-FH (ch.1-ch.16)
■■ Channel Voice Messages
vv = Modulation depth: 00H-7FH (0-127)
■●Note off * Not received when Rx. MODULATION = OFF. (Initial value is ON) Status 2nd byte 3rd byte * The resulting effect is determined by System Exclusive messages. With the initial 8n H kk H vv H settings, this is Pitch Modulation Depth. 9n H kk H 00H
■❍ Portamento Time (Controller Number 5)
n = MIDI channel number: 0H-FH (ch.1-ch.16)
Status 2nd byte 3rd byte
kk = note number: 00H-7FH (0-127)
Bn H 05H vv H
vv = note off velocity: 00H-7FH (0-127)
n = MIDI channel number: 0H-FH (ch.1-ch.16) vv = Portamento Time: 00H-7FH (0-127), Initial value = 00H (0)
■●Note on Status 2nd byte 3rd byte
* This adjusts the rate of pitch change when Portamento is ON or when using the
9n H kk H vv H
Portamento Control. A value of 0 results in the fastest change.
n = MIDI channel number: 0H-FH (ch.1-ch.16)
■❍ Data Entry (Controller Number 6, 38)
kk = note number: 00H-7FH (0-127)
Status 2nd byte 3rd byte
vv = note on velocity: 01H-7FH (1-127)
Bn H 06H mm H Bn H 26H ll H
* Not received when Rx. NOTE MESSAGE = OFF. (Initial value is ON)
n = MIDI channel number: 0H-FH (ch.1-ch.16) mm, ll = the value of the parameter specified by RPN/NRPN
■●Polyphonic Key Pressure
mm = MSB, ll = LSB
Status 2nd byte 3rd byte An H kk H vv H
■❍ Volume (Controller Number 7) n = MIDI channel number: 0H-FH (ch.1-ch.16) Status 2nd byte 3rd byte kk = note number: 00H-7FH (0-127) Bn H 07H vv H
vv = key pressure: 00H-7FH (0-127)
n = MIDI channel number: 0H-FH (ch.1-ch.16) * Not received when Rx. POLY PRESSURE (PAf) = OFF. (Initial value is ON) vv = Volume: 00H-7FH (0-127), Initial Value = 64H (100)
* The resulting effect is determined by System Exclusive messages. With the initial
settings, there will be no effect. * Volume messages are used to adjust the volume balance of each Part. * Not received when Rx. VOLUME = OFF. (Initial value is ON)
■●Control Change ■❍ Pan (Controller Number 10) * When Rx. CONTROL CHANGE = OFF, all control change messages except for Status 2nd byte 3rd byte Channel Mode messages will be ignored. Bn H 0AH vv H * The value specified by a Control Change message will not be reset even by a Program Change, etc. n = MIDI channel number: 0H-FH (ch.1-ch.16)
vv = pan: 00H-40H-7FH (Left-Center-Right), ■❍ Bank Select (Controller Number 0, 32) Initial Value = 40H (Center)
Status 2nd byte 3rd byte
Bn H 00H mm H * Some Tones are not capable of being panned all the way to the left or right. Bn H 20H ll H * Not received when Rx. PANPOT = OFF. (Initial value is ON)
n = MIDI channel number: 0H-FH (ch.1-ch.16) ■❍ Expression (Controller Number 11) mm, ll = Bank number: 00H, 00H-7FH, 7FH (bank.1-bank.16384), Status 2nd byte 3rd byte Initial Value = 00 00H (bank.1) Bn H 0BH vv H
* Not received when Rx. BANK SELECT = OFF. n = MIDI channel number: 0H-FH (ch.1-ch.16) * “Rx. BANK SELECT” is set to OFF by “GM1 System On,” and Bank Select message will vv = Expression: 00H-7FH (0-127), Initial Value = 7FH (127) be ignored. * “Rx. BANK SELECT” is set to ON by “GM2 System On.” * This adjusts the volume of a Part. It can be used independently from Volume * “Rx. BANK SELECT” is set to ON by power-on Reset or by receiving “GS RESET.” messages. Expression messages are used for musical expression within a * When Rx. BANK SELECT LSB = OFF, Bank number LSB (ll H) will be handled as 00H performance; e.g., expression pedal movements, crescendo and decrescendo. regardless of the received value. However, when sending Bank Select messages, * Not received when Rx. EXPRESSION = OFF. (Initial value is ON) you have to send both the MSB (mm H) and LSB (ll H, the value should be 00H) together. * Bank Select processing will be suspended until a Program Change message is received. * The GS format “Variation number” is the value of the Bank Select MSB (Controller number 0) expressed in decimal.
Copyright © 2011 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.1PS
