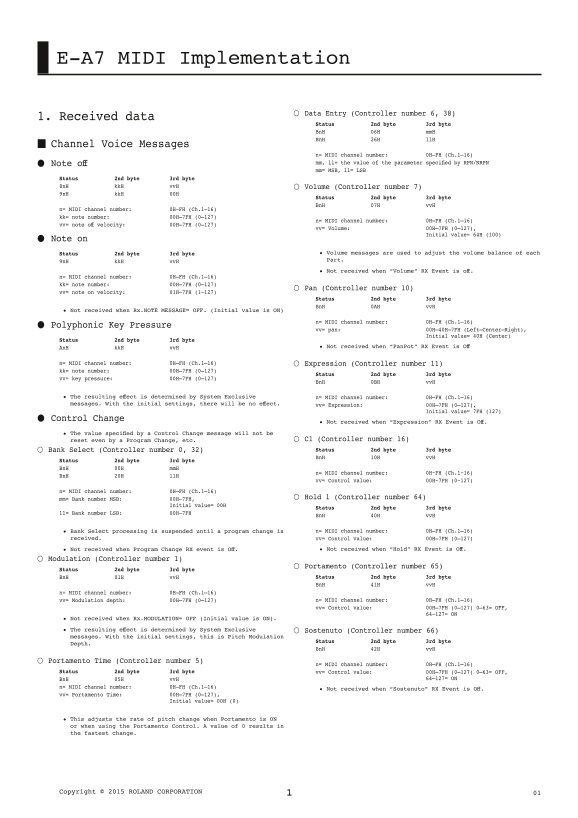

E-A7 MIDI Implementation

Data Entry (Controller number 6, 38)

1. Received data

Status 2nd byte 3rd byte Bn H 06H mm H Bn H 26H ll H

Channel Voice Messages

n= MIDI channel number: 0H–FH (Ch.1–16) Note off mm, ll= the value of the parameter specified by RPN/NRPN mm= MSB, ll= LSB

Status 2nd byte 3rd byte 8n H kk H vv H Volume (Controller number 7) 9n H kk H 00H

Status 2nd byte 3rd byte Bn H 07H vv H

n= MIDI channel number: 0H–FH (Ch.1–16) kk= note number: 00H–7FH (0–127)

n= MIDI channel number: 0H–FH (Ch.1–16)

vv= note off velocity: 00H–7FH (0–127)

vv= Volume: 00H–7FH (0–127),

Initial value= 64H (100)

Note on

Status 2nd byte 3rd byte Volume messages are used to adjust the volume balance of each 9n H kk H vv H Part.

Not received when “Volume” RX Event is off.

n= MIDI channel number: 0H–FH (Ch.1–16) kk= note number: 00H–7FH (0–127)

Pan (Controller number 10)

vv= note on velocity: 01H–7FH (1–127)

Status 2nd byte 3rd byte Bn H 0AH vv H

Not received when Rx.NOTE MESSAGE= OFF. (Initial value is ON)

n= MIDI channel number: 0H–FH (Ch.1–16)

Polyphonic Key Pressure

vv= pan: 00H–40H–7FH (Left–Center–Right),

Initial value= 40H (Center)

Status 2nd byte 3rd byte

An H kk H vv H Not received when “Pan Pot” RX Event is Off

n= MIDI channel number: 0H–FH (Ch.1–16) Expression (Controller number 11) kk= note number: 00H–7FH (0–127)

Status 2nd byte 3rd byte

vv= key pressure: 00H–7FH (0–127)

Bn H 0BH vv H

The resulting effect is determined by System Exclusive n= MIDI channel number: 0H–FH (Ch.1–16) messages. With the initial settings, there will be no effect. vv= Expression: 00H–7FH (0–127),

Initial value= 7FH (127)

Control Change

Not received when “Expression” RX Event is Off.

The value specified by a Control Change message will not be

reset even by a Program Change, etc. C1 (Controller number 16) Bank Select (Controller number 0, 32) Status 2nd byte 3rd byte Bn H 10H vv H

Status 2nd byte 3rd byte Bn H 00H mm H

n= MIDI channel number: 0H~FH (Ch.1~16)

Bn H 20H ll H

vv= Control value: 00H~7FH (0~127)

n= MIDI channel number: 0H–FH (Ch.1–16)

mm= Bank number MSB: 00H–7FH, Hold 1 (Controller number 64)

Initial value= 00H

Status 2nd byte 3rd byte

ll= Bank number LSB: 00H–7FH

Bn H 40H vv H

Bank Select processing is suspended until a program change is n= MIDI channel number: 0H–FH (Ch.1–16)

received. vv= Control value: 00H–7FH (0–127)

Not received when Program Change RX event is Off. Not received when “Hold” RX Event is Off.

Modulation (Controller number 1)

Portamento (Controller number 65)

Status 2nd byte 3rd byte

Bn H 01H vv H Status 2nd byte 3rd byte Bn H 41H vv H

n= MIDI channel number: 0H–FH (Ch.1–16)

vv= Modulation depth: 00H–7FH (0–127) n= MIDI channel number: 0H–FH (Ch.1–16) vv= Control value: 00H–7FH (0–127) 0–63= OFF,

64–127= ON

Not received when Rx.MODULATION= OFF (Initial value is ON). The resulting effect is determined by System Exclusive Sostenuto (Controller number 66) messages. With the initial settings, this is Pitch Modulation

Status 2nd byte 3rd byte

Depth.

Bn H 42H vv H

Portamento Time (Controller number 5)

n= MIDI channel number: 0H–FH (Ch.1–16)

Status 2nd byte 3rd byte vv= Control value: 00H–7FH (0–127) 0–63= OFF,

Bn H 05H vv H 64–127= ON

n= MIDI channel number: 0H–FH (Ch.1–16) Not received when “Sostenuto” RX Event is Off. vv= Portamento Time: 00H–7FH (0–127),

Initial value= 00H (0)

This adjusts the rate of pitch change when Portamento is ON or when using the Portamento Control. A value of 0 results in the fastest change.
