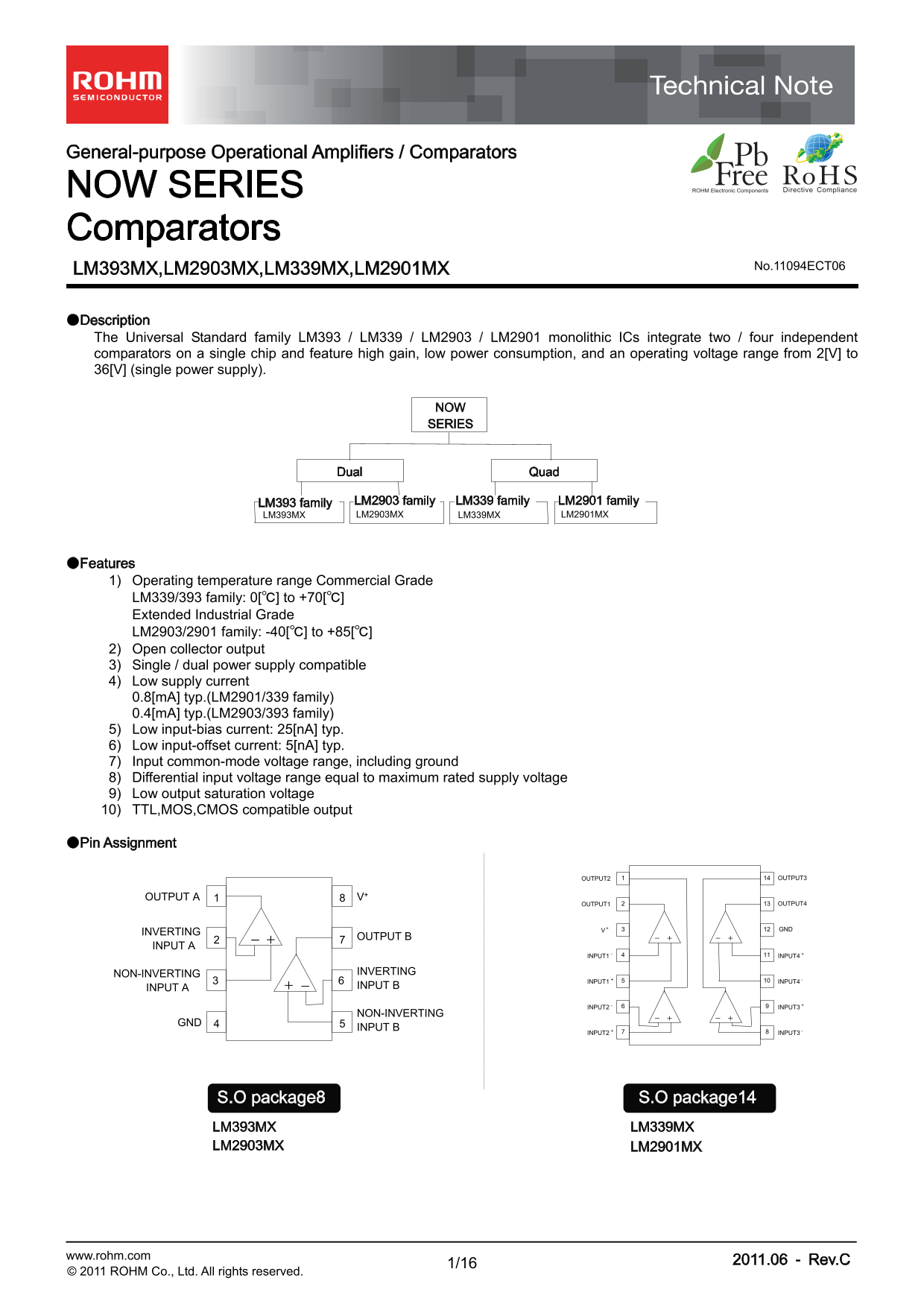

Page 1 Text Content
General-purpose Operational Amplifiers / Comparators
NOW SERIES Comparators
LM393MX,LM2903MX,LM339MX,LM2901MX No.11094ECT06
●Description The Universal Standard family LM393 / LM339 / LM2903 / LM2901 monolithic ICs integrate two / four independent comparators on a single chip and feature high gain, low power consumption, and an operating voltage range from 2[V] to 36[V] (single power supply).
NOW SERIES
Dual Quad
LM393 family LM339 family LM2903 family LM2901 family LM393MX LM2903MX LM339MX LM2901MX
●Features 1) Operating temperature range Commercial Grade LM339/393 family: 0[℃] to +70[℃] Extended Industrial Grade LM2903/2901 family: -40[℃] to +85[℃] 2) Open collector output 3) Single / dual power supply compatible 4) Low supply current 0.8[m A] typ.(LM2901/339 family) 0.4[m A] typ.(LM2903/393 family) 5) Low input-bias current: 25[n A] typ. 16) Low input-offset current: 5[n A] typ. 7) Input common-mode voltage range, including ground 8) Differential input voltage range equal to maximum rated supply voltage 9) Low output saturation voltage 10) TTL,MOS,CMOS compatible output
●Pin Assignment
OUTPUT2 OUTPUT3
OUTPUT A V+
OUTPUT1 OUTPUT4
V+ GND
INVERTING
OUTPUT B ＋ － ＋ － ＋
INPUT A
INPUT1 INPUT4
NON-INVERTING INVERTING
INPUT1 INPUT4
INPUT A INPUT B
INPUT2 INPUT3
NON-INVERTING
INPUT B
INPUT2 INPUT3
S.O package14 S.O package8
LM393MX LM339MX
LM2901MX LM2903MX
www.rohm.com 2011.06 - Rev.C
© 2011 ROHM Co., Ltd. All rights reserved.
