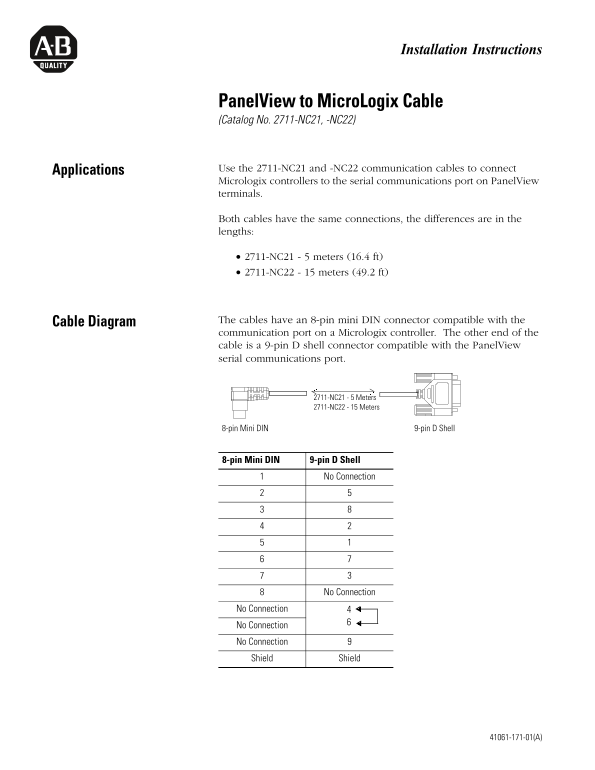

Page 1 Text Content
Installation Instructions
Panel View to Micro Logix Cable (Catalog No. 2711-NC21, -NC22)
Applications Use the 2711-NC21 and -NC22 communication cables to connect Micrologix controllers to the serial communications port on Panel View terminals.
Both cables have the same connections, the differences are in the lengths:
2711-NC21 - 5 meters (16.4 ft) 2711-NC22 - 15 meters (49.2 ft)
Cable Diagram The cables have an 8-pin mini DIN connector compatible with the communication port on a Micrologix controller. The other end of the cable is a 9-pin D shell connector compatible with the Panel View serial communications port.
2711-NC22 - 15 Meters 2711-NC21 - 5 Meters 2711-NC22 - 15 Meters
8-pin Mini DIN 9-pin D Shell
8-pin Mini DIN 9-pin D Shell
No Connection
No Connection
No Connection No Connection No Connection Shield Shield
