The R5533V is a robust PCMCIA power controller engineered for switching voltages efficiently among 0V, 3.3V, or 5.0V in card-bus slots. Featuring low ON resistance MOSFET technology, built-in overcurrent protection, and thermal shutdown safeguards, it is ideal for developing reliable power supply switches, readers, and writers. This manual provides comprehensive technical documentation, including the SSOP-16 pin configuration, absolute maximum ratings, electrical characteristics, and detailed operating parameters necessary for hardware design engineers.

📄 Preview ‹ PAGE OF 12 ›

‹

›

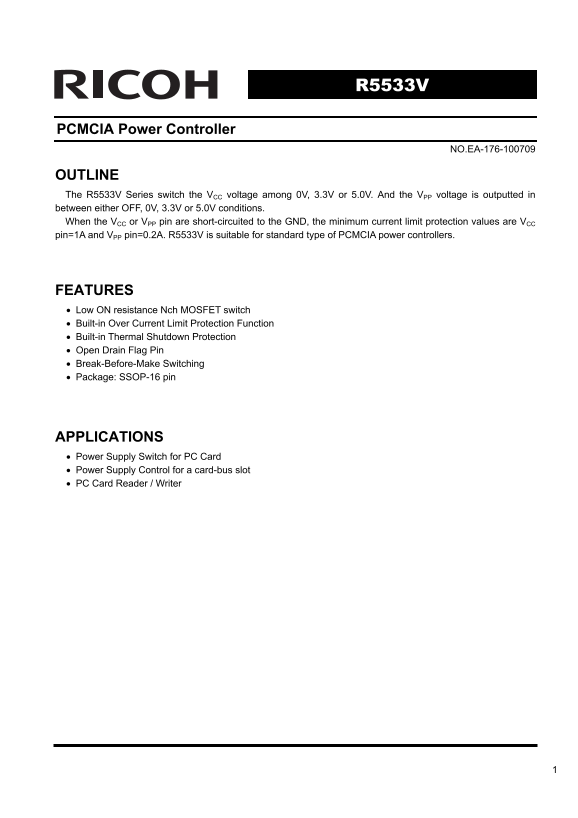

Page 1 Text Content

PCMCIA Power Controller

NO.EA-176-100709

OUTLINE The R5533V Series switch the VCC voltage among 0V, 3.3V or 5.0V. And the VPP voltage is outputted in between either OFF, 0V, 3.3V or 5.0V conditions. When the VCC or VPP pin are short-circuited to the GND, the minimum current limit protection values are VCC pin=1A and VPP pin=0.2A. R5533V is suitable for standard type of PCMCIA power controllers.

FEATURES • Low ON resistance Nch MOSFET switch • Built-in Over Current Limit Protection Function • Built-in Thermal Shutdown Protection • Open Drain Flag Pin • Break-Before-Make Switching • Package: SSOP-16 pin

APPLICATIONS • Power Supply Switch for PC Card • Power Supply Control for a card-bus slot • PC Card Reader / Writer

Page Summary Contents For RICOH R5533V User Guide

Page 1 PCMCIA Power Controller NO.EA-176-100709 OUTLINE The R5533V Series switch the VCC voltage among 0V, 3.3V or 5.0V. And the VPP voltage is outputted in between either OFF, 0V, 3.3V or 5.0V conditions. W...

Page 2 BLOCK DIAGRAMS VCC5IN VCCOUT VPPOUT VCC3IN EN1 EN0 GATE VCC5_EN CONTROL CURRENT VCC3_EN LOGIC LIMIT THERMAL FLAG CONTROL SHUTDOWN LOGIC

Page 3 PIN CONFIGURATIONS • SSOP-16 PIN DESCRIPTIONS Pin No. Symbol Description 1 VCC5_EN Logic Input Pin 2 VCC3_EN Logic Input Pin 3 EN0 Logic Input Pin 4 EN1 Logic Input Pin 5 FLG Flag Output Pin 6 TST Tes...

Page 4 ABSOLUTE MAXIMUM RATINGS (GND=0V) Symbol Item Rating Unit VCC5IN Input Voltage (5V) - 0.3 to 6.0 V VCC3IN Input Voltage (3V) - 0.3 to 6.0 V VFLG Flag Voltage - 0.3 to 6.0 V VIN Logic Input Voltage - 0...

Page 5 ELECTRICAL CHARACTERISTICS VCC5IN = 5V, VCC3IN = 3.3V, unless otherwise noted. The specification is guaranteed by design engineering at -40°C Ta 85°C. The typical value is at Ta = 25°C. Ta=25°C Item S...

Page 6 ELECTRICAL CHARACTERISTICS (cont.) VCC5IN = 5V, VCC3IN = 3.3V, unless otherwise noted. The specification is guaranteed by design engineering at -40°C Ta 85°C. The typical value is in Ta = 25°C. Ta=25°...

Page 7 TIMING CHART VCC to 3.3V OFF VCC to 5VVCC VCC OFF VCC5_EN VCC3_EN 90% 90% VCC－1V VCC－1V Output 10% 10% 10% FLG 0V Fig1 Timing Diagram of VCC VPP to 3.3V OFF VPP to 5VVPP VPP OFF VCC5_EN VCC3_EN EN0 t9...

Page 8 OPERATION OPERATING EXPLANATION When the VCCOUT=0V is selected, the IC switches into the sleep mode, the supply current decreases to nano-amperes. If commanded to switch from 5.0V to 3.3V, or vise ver...

Page 9 CONTROL LOGIC TABLE VCC5_EN VCC3_EN EN1 EN0 VCCOUT VPPOUT 0 0 0 0 0 V 0 V 0 0 0 1 0 V Hi-Z 0 0 1 0 0 V Hi-Z 0 0 1 1 0 V Hi-Z 0 1 0 0 5 V 0 V 0 1 0 1 5 V 5 V 0 1 1 0 5 V Hi-Z 0 1 1 1 5 V Hi-Z 1 0 0 0 3...

Page 10 TEST CIRCUITS VCCOUT VPPOUT ICCSC A IPPSC Fig.1 ICCSC Fig.2 IPPSC VCCOUT VPPOUT Fig.3 t1~t8 Fig.3 t9~t16 Note 1: The test circuits of all other pins, except VCCOUT pin and VPPOUT pins refer to the TYP...

Page 11 TYPICAL CHARACTERISTICS CL=10μF (5V/div)→ VOUT CL=310μF (5V/div)→ CL=310μF CL=210μF CL=110μF CL=47μF 　　Iout (0.5A/div)→ 　　Iout CL=10μF (0.2A/div)→ Time (5ms/div) Time　(500μs/div) Fig.1 Ramped Load Con...

Page 12 1. The products and the product specifications described in this document are subject to change or discontinuation of production without notice for reasons such as improvement. Therefore, before decid...
