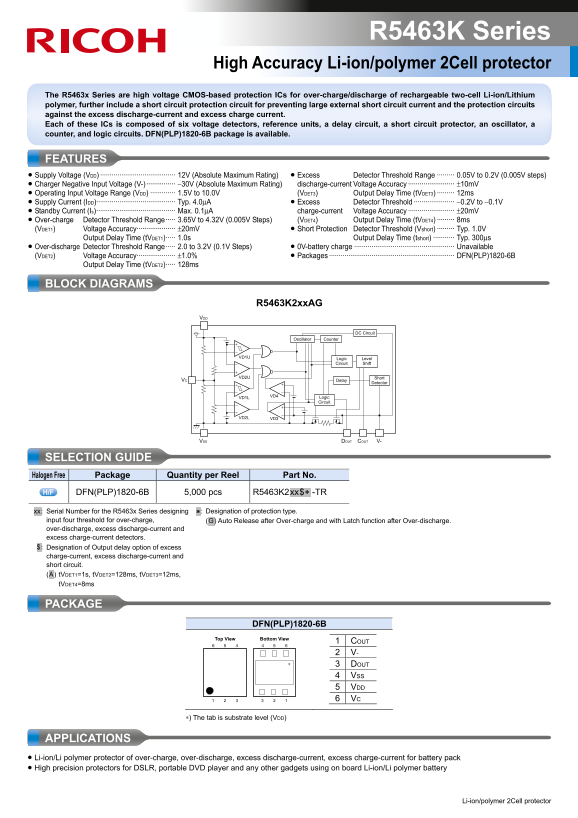

R5463K Series
High Accuracy Li-ion/polymer 2Cell protector
The R5463x Series are high voltage CMOS-based protection ICs for over-charge/discharge of rechargeable two-cell Li-ion/Lithium polymer, further include a short circuit protection circuit for preventing large external short circuit current and the protection circuits against the excess discharge-current and excess charge current. Each of these ICs is composed of six voltage detectors, reference units, a delay circuit, a short circuit protector, an oscillator, a counter, and logic circuits. DFN(PLP)1820-6B package is available.
FEATURES
• Supply Voltage (VDD) ······································· 12V (Absolute Maximum Rating) • Excess Detector Threshold Range ········· 0.05V to 0.2V (0.005V steps)
• Charger Negative Input Voltage (V-) ··············· −30V (Absolute Maximum Rating) discharge-current Voltage Accuracy ························ ±10m V • Operating Input Voltage Range (VDD) ············· 1.5V to 10.0V (VDET3) Output Delay Time (t VDET3) ········· 12ms • Supply Current (IDD)········································· Typ. 4.0μA • Excess Detector Threshold ····················· −0.2V to −0.1V • Standby Current (Is)········································· Max. 0.1μA charge-current Voltage Accuracy ························ ±20m V • Over-charge Detector Threshold Range····· 3.65V to 4.32V (0.005V Steps) (VDET4) Output Delay Time (t VDET4) ········· 8ms
(VDET1) Voltage Accuracy···················· ±20m V • Short Protection Detector Threshold (Vshort) ········· Typ. 1.0V
Output Delay Time (t VDET1)····· 1.0s Output Delay Time (tshort) ··········· Typ. 300μs • Over-discharge Detector Threshold Range····· 2.0 to 3.2V (0.1V Steps) • 0V-battery charge ···················································· Unavailable
(VDET2) Voltage Accuracy···················· ±1.0% • Packages ································································· DFN(PLP)1820-6B
Output Delay Time (t VDET2)····· 128ms
BLOCK DIAGRAMS
R5463K2xx AG
DC Circuit
Oscillator Counter
VD1U Logic Level
Circuit Shift
VD2U Short
VC Delay
Detector
VD1L VD4 Logic
Circuit
VD2L VD3
VSS DOUT COUT V-
SELECTION GUIDE Halogen Free Package Quantity per Reel Part No.
DFN(PLP)1820-6B 5,000 pcs R5463K2.xx.$.∗ -TR
.xx : Serial Number for the R5463x Series designing .∗ : Designation of protection type.
input four threshold for over-charge, (.G..) Auto Release after Over-charge and with Latch function after Over-discharge. over-discharge, excess discharge-current and excess charge-current detectors. Designation of Output delay option of excess charge-current, excess discharge-current and short circuit. (.A.) t VDET1=1s, t VDET2=128ms, t VDET3=12ms, t VDET4=8ms
PACKAGE
DFN(PLP)1820-6B
Top View Bottom View
V- DOUT VSS VDD 1 2 3 VC
∗) The tab is substrate level (VDD)
APPLICATIONS • Li-ion/Li polymer protector of over-charge, over-discharge, excess discharge-current, excess charge-current for battery pack • High precision protectors for DSLR, portable DVD player and any other gadgets using on board Li-ion/Li polymer battery
Li-ion/polymer 2Cell protector
