Phoenix Contact MDSTB 2.5 4-G1-5,08: Data Handbook / User Manual
Summary
Engineered for industrial automation, this catalog provides comprehensive technical standards for high-performance terminal blocks that ensure reliable electrical connections in control panel setups. The documentation covers multiple connection options, including soldering, screw, and crimp terminations, across various voltages and currents. Ideal for electrical engineers and system integrators who require specified components, detailed dimensions, and adherence to global safety certifications (UL, CSA, VDE).
Page 1 Text Content
Extract from the online catalog

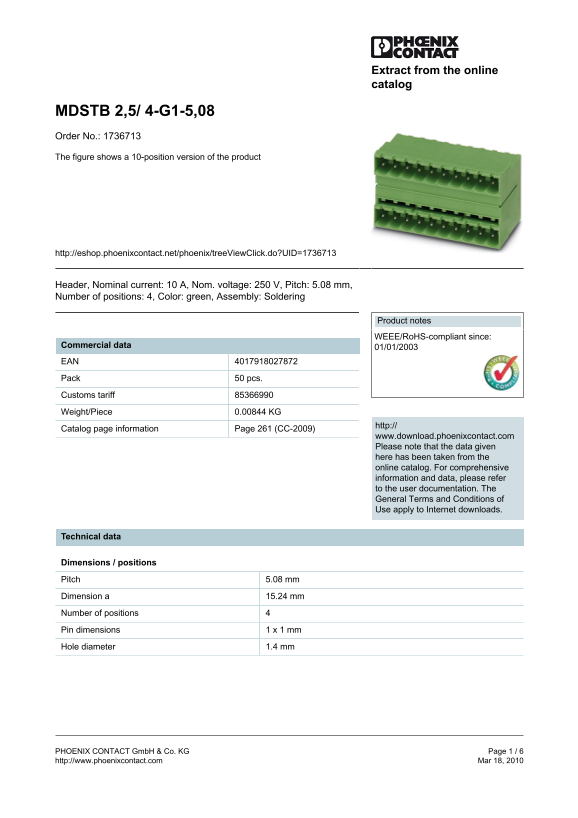

MDSTB 2,5/ 4-G1-5,08 Order No.: 1736713 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1736713
Header, Nominal current: 10 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 4, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00844 KG
http://
Catalog page information Page 261 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5.08 mm Dimension a 15.24 mm Number of positions Pin dimensions 1 x 1 mm Hole diameter 1.4 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
