TMS122

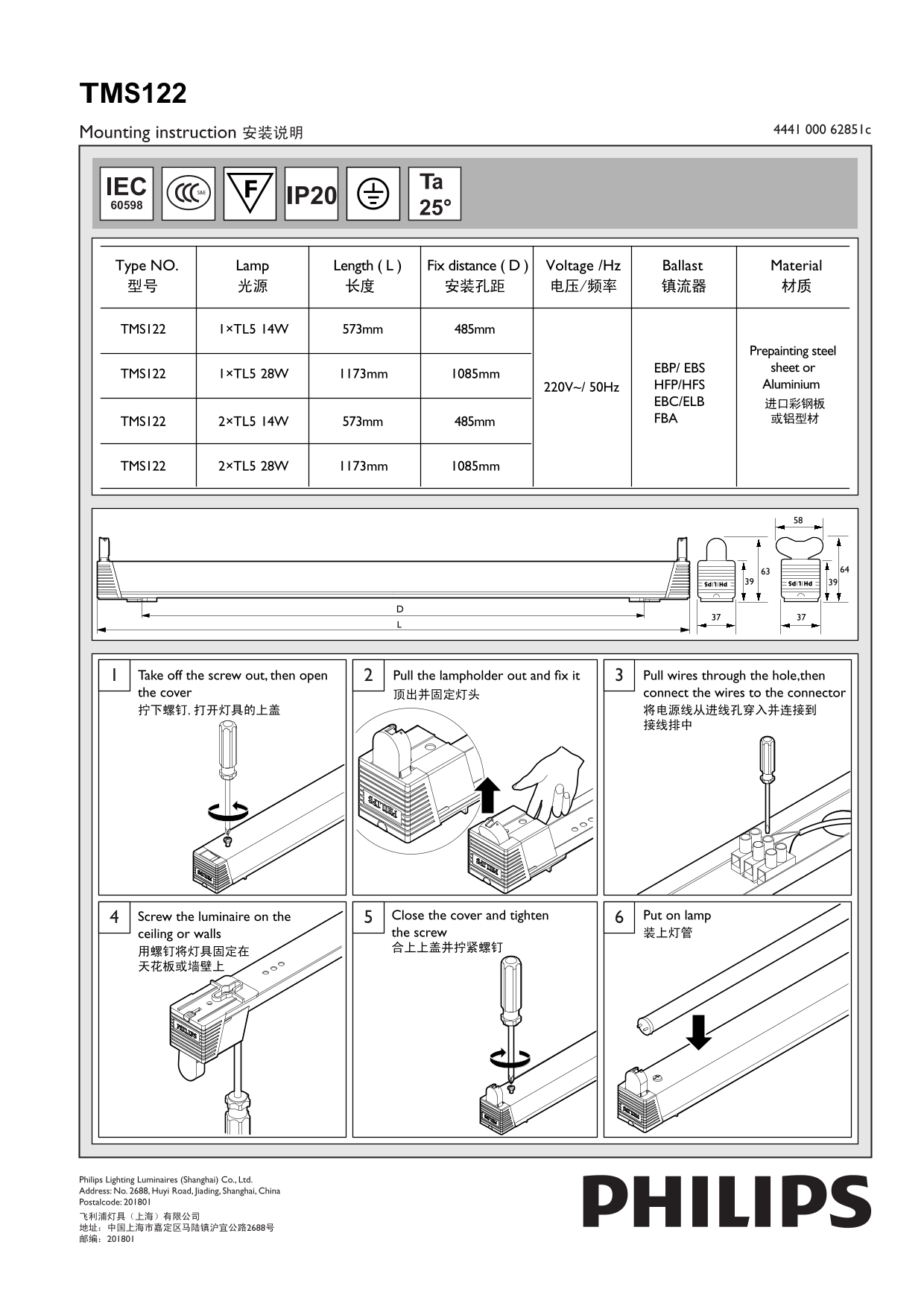

Mounting instruction 安装说明 4441 000 62851c
Type NO. Lamp Length ( L ) Fix distance ( D ) Voltage /Hz Ballast Material 型号 光源 长度 安装孔距 电压/频率 镇流器 材质
TMS122 573mm1×TL5 14W 485mm
Prepainting steel EBP/ EBS sheet or
1×TL5 28WTMS122 1173mm 1085mm
HFP/HFS Aluminium 220V~/ 50Hz
EBC/ELB 进口彩钢板 TMS122 573mm2×TL5 14W 485mm FBA 或铝型材
2×TL5 28WTMS122 1173mm 1085mm
Take off the screw out, then open Pull the lampholder out and x it Pull wires through the hole,then the cover 顶出并固定灯头 connect the wires to the connector 拧下螺钉,打开灯具的上盖 将电源线从进线孔穿入并连接到
Screw the luminaire on the 6Close the cover and tighten Put on lamp
ceiling or walls the screw 装上灯管 合上上盖并拧紧螺钉
Philips Lighting Luminaires (Shanghai) Co., Ltd. Address: No. 2688, Huyi Road, Jiading, Shanghai, China Postalcode: 201801 飞利浦灯具（上海）有限公司 地址：中国上海市嘉定区马陆镇沪宜公路2688号 邮编：201801
