Philips BYD31 series Fast Soft-Recovery Controlled Avalanche Rectifiers Data Sheet

Summary

Experience reliable power handling with this technical manual for the BYD31 series of fast soft-recovery controlled avalanche rectifiers. This comprehensive specification details critical performance data, including full electrical characteristics, thermal management curves, and rigorous maximum rating limits across various pulsed and constant wave operating modes. It is an essential resource for engineers designing robust power electronic systems that require high reliability and stable rectification solutions.

📄 Preview 📖 Table of Contents Contents ‹ PAGE OF 9 ›
‹ Philips BYD31 series Fast Soft-Recovery Controlled Avalanche Rectifiers Data Sheet - Page 1 ›

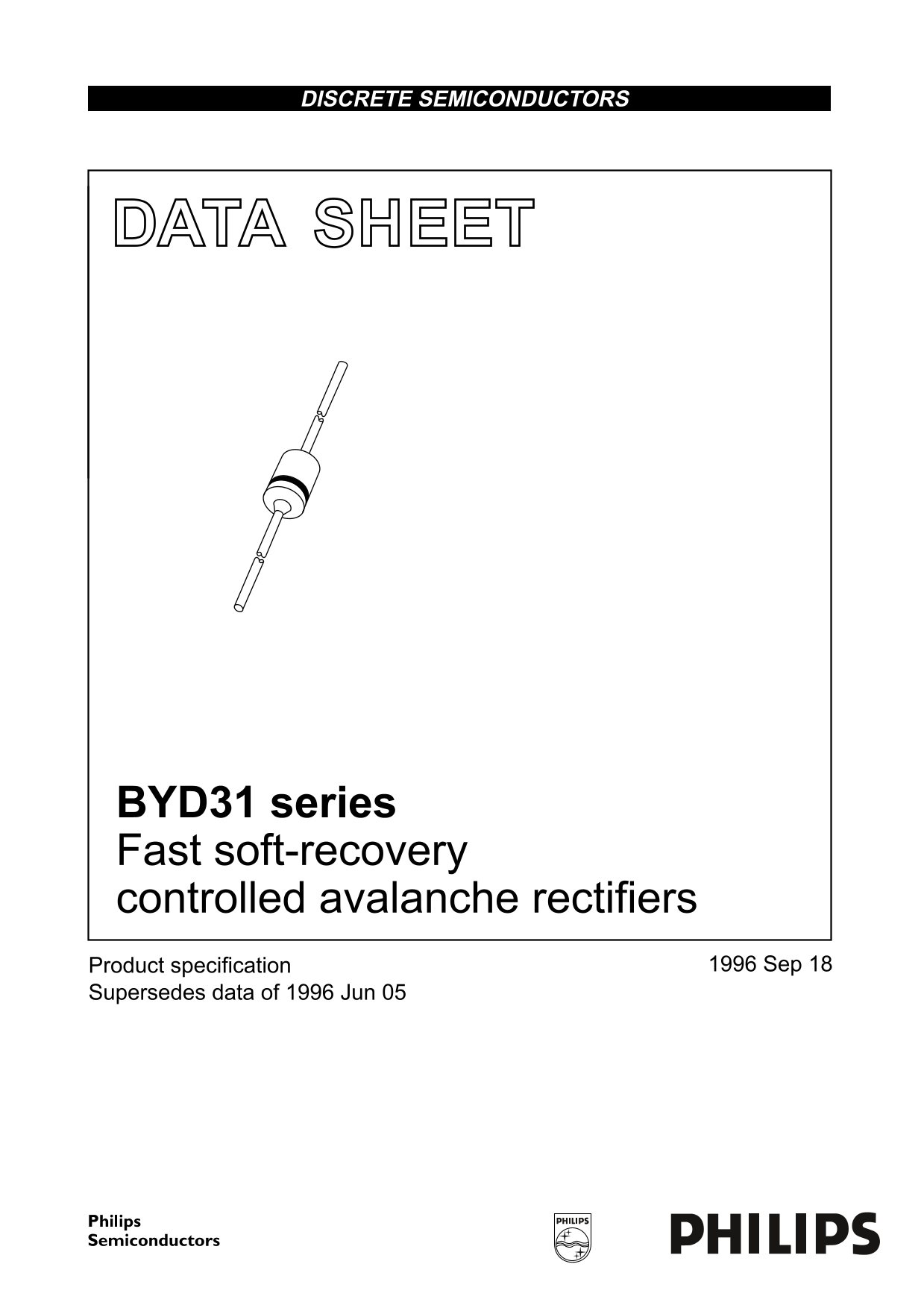

Page 1 Text Content

DISCRETE SEMICONDUCTORS

DATA SHEET andbook, halfpage

BYD31 series Fast soft-recovery controlled avalanche rectifiers

Product specification Sep

Supersedes data of 1996 Jun 05

Page Summary Contents For Philips BYD31 series Fast Soft-Recovery Controlled Avalanche Rectifiers Data Sheet

Page 1 DISCRETE SEMICONDUCTORS DATA SHEET andbook, halfpage BYD31 series Fast soft-recovery controlled avalanche rectifiers Product specification Sep Supersedes data of 1996 Jun 05
Page 2 Philips Semiconductors Product specification Fast soft-recovery BYD31 series controlled avalanche rectifiers FEATURES DESCRIPTION and fatigue free as coefficients of expansion of all used parts are Gl...
Page 3 Philips Semiconductors Product specification Fast soft-recovery BYD31 series controlled avalanche rectifiers SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT PRSM non-repetitive peak reverse power µs half s...
Page 4 Philips Semiconductors Product specification Fast soft-recovery BYD31 series controlled avalanche rectifiers THERMAL CHARACTERISTICS SYMBOL PARAMETER CONDITIONS VALUE UNIT Rth j-tp thermal resistance ...
Page 5 Philips Semiconductors Product specification Fast soft-recovery BYD31 series controlled avalanche rectifiers GRAPHICAL DATA MGC517 MGC518 handbook, halfpage handbook, halfpage IF(AV) IF(AV) (A) (A) le...
Page 6 Philips Semiconductors Product specification Fast soft-recovery BYD31 series controlled avalanche rectifiers MCD586 handbook, full pagewidth FRM (A) tp (ms) Tamb °C; Rth j-a K/W. VRRMmax during 1 δ; c...
Page 7 Philips Semiconductors Product specification Fast soft-recovery BYD31 series controlled avalanche rectifiers MCD585 MCD582 handbook, halfpage handbook, halfpage VF (V) o Tj Dotted line: Tj °C. Solid l...
Page 8 Philips Semiconductors Product specification Fast soft-recovery BYD31 series controlled avalanche rectifiers handbook, full pagewidth DUT 25 V rr 0.5 IR (A) MAM057 Input impedance oscilloscope: 1 MΩ, ...
Page 9 Philips Semiconductors Product specification Fast soft-recovery BYD31 series controlled avalanche rectifiers PACKAGE OUTLINE 3.5 max handbook, full pagewidth 0.55 max MBC0531.7 29 min 29 min3.0 max Di...
