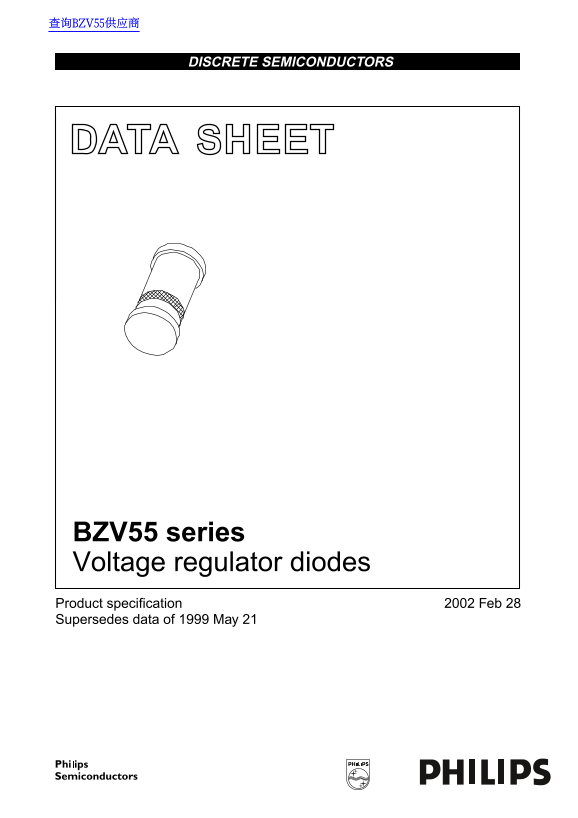

PHILIPS BZV55 series Data Sheet
Summary
Discrete semiconductor datasheet for Philips BZV55 series voltage regulator diodes in SOD80C hermetically sealed glass SMD package. Available in 37 types with nominal working voltages from 2.4 to 75V in E24 range. Two tolerance grades: BZV55-B at +/-2% and BZV55-C at approx. +/-5%. Maximum ratings: 500mW total power dissipation at 50 degrees C tie-point, 40W non-repetitive peak reverse power, 250mA continuous forward current. Operating temperature range -65 to +200 degrees C. Applications as low-voltage stabilizers and voltage references.
