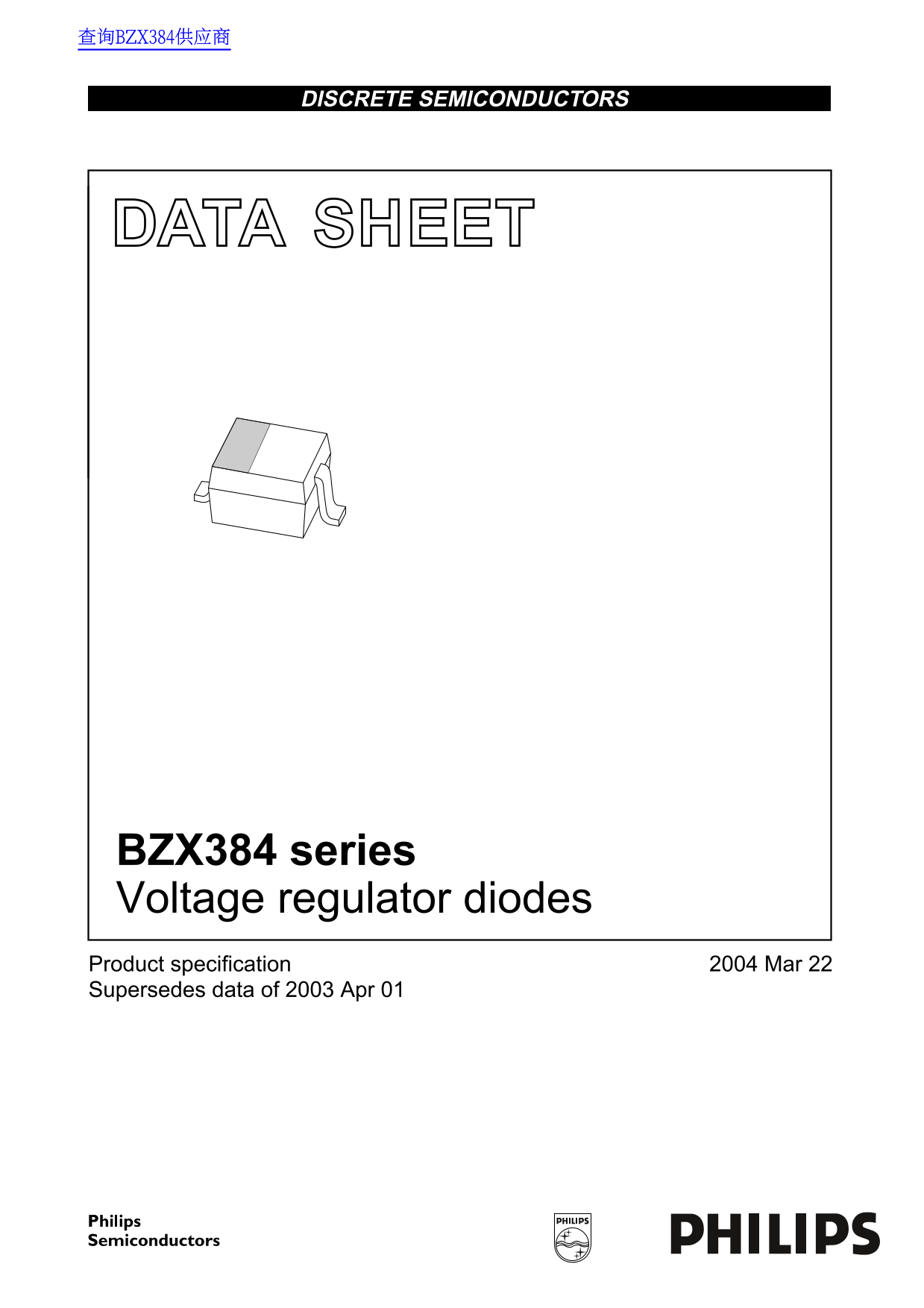

Philips BZX384 series Data Sheet
Summary
The BZX384 series offers low-power voltage regulator diodes in a compact SMD package, designed for precise power stabilization. This manual is an essential technical resource covering complete specifications, tolerance details ($\pm2\%$ and $\approx \pm5\%$), and performance ratings for voltages ranging from 2.4V to 75V. It provides designers with detailed electrical characteristics, packaging information, and comprehensive marking codes needed for reliable integration into low-voltage regulation circuits.
Manual Details
| Brand | Philips |
|---|---|
| Pages | 11 |
| File Size | 66.20 KB |
| Published | July 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum total power dissipation for the BZX384 series?
The maximum total power dissipation is 300 mW at an ambient temperature of 25°C.
Which tolerance levels are available in this diode series?
Two tolerance series are offered: ±2% (BZX384-B) and approximately ±5% (BZX384-C).
What package does the BZX384 low-power voltage regulator utilize?
They are encapsulated in a very small SOD323 (SC-76) plastic SMD package.
What is the operational range for the working voltage of this series?
The nominal working voltage range is from 2.4 V to 75 V.
