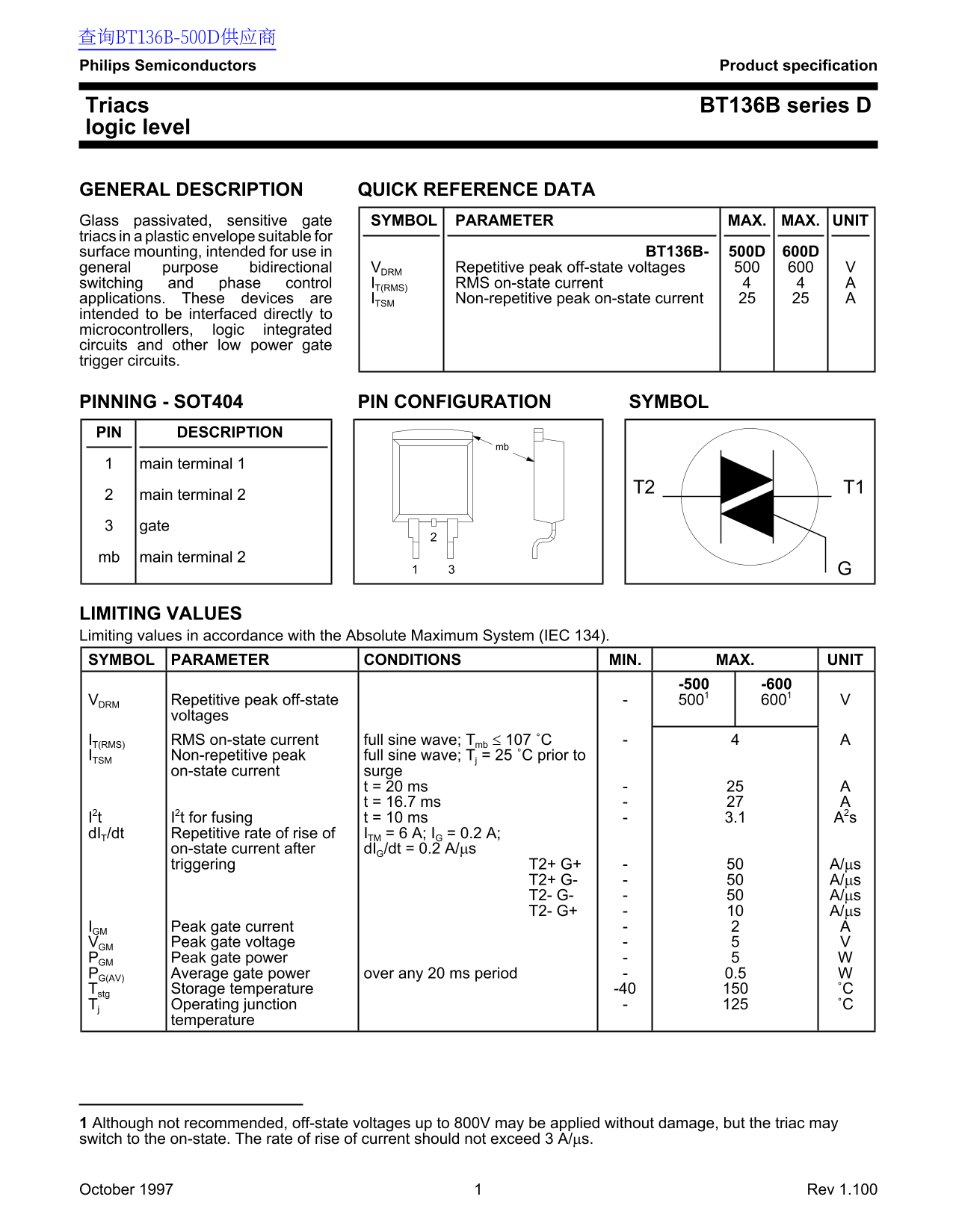

查询BT136B-500D供应商 Philips Semiconductors Product specification
Triacs BT136B series D logic level
GENERAL DESCRIPTION QUICK REFERENCE DATA Glass passivated, sensitive gate SYMBOL PARAMETER MAX. MAX. UNIT triacs in plastic envelope suitable for surface mounting, intended for use in BT136B- 500D 600D
general purpose bidirectional VDRM Repetitive peak off-state voltages
switching and phase control IT(RMS) RMS on-state current applications. These devices are ITSM Non-repetitive peak on-state current intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits.
PINNING - SOT404 PIN CONFIGURATION SYMBOL PIN DESCRIPTION
main terminal 1
main terminal 2 gate
mb main terminal 2
LIMITING VALUES Limiting values in accordance with the Absolute Maximum System (IEC 134). SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDRM Repetitive peak off-state
voltages
IT(RMS) RMS on-state current full sine wave; Tmb ≤ 107 ˚C ITSM Non-repetitive peak full sine wave; Tj = 25 ˚C prior to
on-state current surge
t = 20 ms t = 16.7 ms
I2t I2t for fusing t = 10 ms 3.1 A2s d IT/dt Repetitive rate of rise of ITM = 6 A; IG = 0.2 A;
on-state current after d IG/dt = 0.2 A/µs triggering T2+ G+ A/µs
IGM Peak gate current VGM Peak gate voltage PGM Peak gate power PG(AV) Average gate power over any 20 ms period 0.5 Tstg Storage temperature -40 ˚C Tj Operating junction ˚C
temperature
1 Although not recommended, off-state voltages up to 800V may be applied without damage, but the triac may switch to the on-state. The rate of rise of current should not exceed 3 A/µs.
October 1997 Rev 1.100
