PHILIPS BT136B series E Product Specifications
Summary
Philips BT136B series E sensitive gate triacs offer high voltage ratings up to 800V for general-purpose bidirectional switching and phase control. Designed for surface mounting, this passivated device features high sensitivity for reliable operation across all four quadrants.

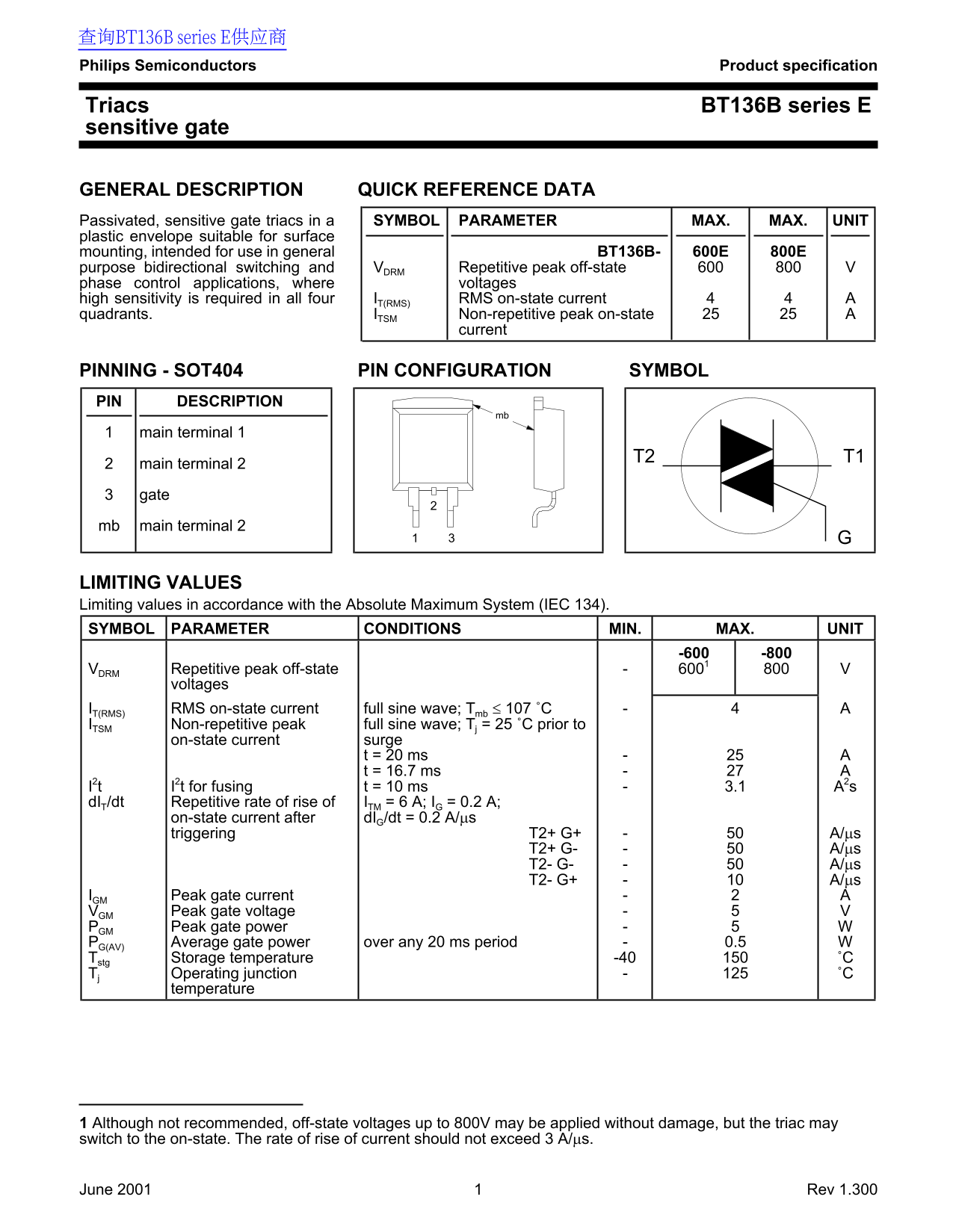

Page 1 Text Content
查询BT136B series E供应商 Philips Semiconductors Product specification
Triacs BT136B series E sensitive gate
GENERAL DESCRIPTION QUICK REFERENCE DATA Passivated, sensitive gate triacs in SYMBOL PARAMETER MAX. MAX. UNIT plastic envelope suitable for surface mounting, intended for use in general BT136B- 600E 800E
purpose bidirectional switching and VDRM Repetitive peak off-state
phase control applications, where voltages
high sensitivity is required in all four IT(RMS) RMS on-state current
quadrants. ITSM Non-repetitive peak on-state
current
PINNING - SOT404 PIN CONFIGURATION SYMBOL PIN DESCRIPTION
main terminal 1
main terminal 2 gate mb main terminal 2
LIMITING VALUES Limiting values in accordance with the Absolute Maximum System (IEC 134). SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDRM Repetitive peak off-state
voltages
IT(RMS) RMS on-state current full sine wave; Tmb ≤ 107 ˚C ITSM Non-repetitive peak full sine wave; Tj = 25 ˚C prior to
on-state current surge
t = 20 ms t = 16.7 ms
I2t I2t for fusing t = 10 ms 3.1 A2s d IT/dt Repetitive rate of rise of ITM = 6 A; IG = 0.2 A;
on-state current after d IG/dt = 0.2 A/µs triggering T2+ G+ A/µs
IGM Peak gate current VGM Peak gate voltage PGM Peak gate power PG(AV) Average gate power over any 20 ms period 0.5 Tstg Storage temperature -40 ˚C Tj Operating junction ˚C
temperature
1 Although not recommended, off-state voltages up to 800V may be applied without damage, but the triac may switch to the on-state. The rate of rise of current should not exceed 3 A/µs.
June 2001 Rev 1.300
Page Summary Contents For PHILIPS BT136B series E Product Specifications
Manual Details
| Brand | Philips |
|---|---|
| Pages | 6 |
| File Size | 37.84 KB |
| Published | June 22, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the maximum on-state current ratings?
The RMS on-state current (IT(RMS)) is 4 A for both the 600V and 800V versions.
What are the different gate trigger requirements?
Gate trigger current varies by quadrant, e.g., T2+ G+ is 2.5 to 10 mA, while T2- G+ is 11 to 25 mA.
What are the peak off-state voltage options?
The BT136B series comes in 600V (VDRM 600V) and 800V (VDRM 800V) repetitive peak off-state voltage versions.
