BFG540; BFG540/X; BFG540/XR NPN 9 GHz wideband transistor Product specification May Supersedes data of 1997 Dec
Page Summary Contents For Philips BFG540 BFG540 X BFG540 XR Data Handbook
Page 1

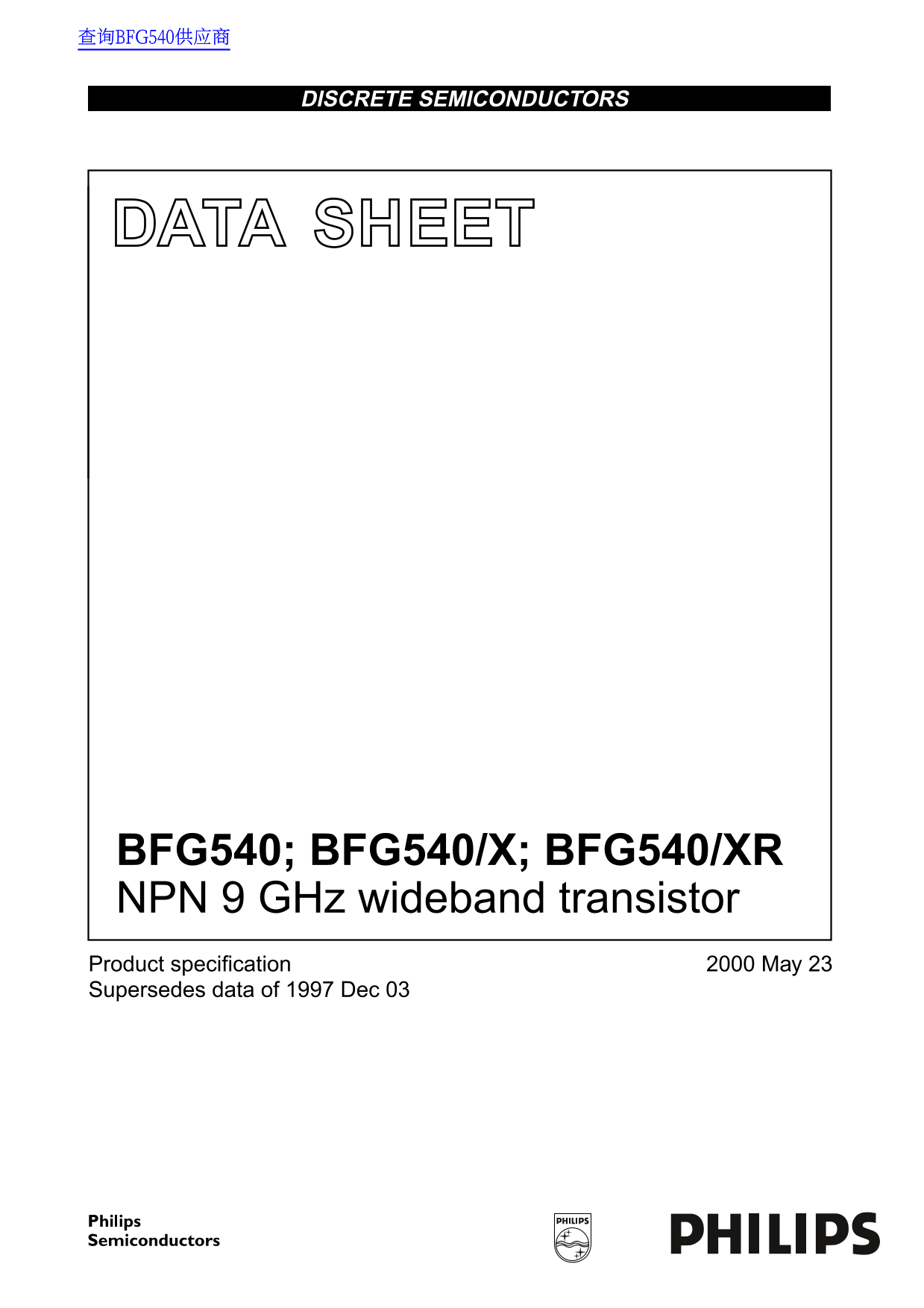

查询BFG540供应商 DISCRETE SEMICONDUCTORS DATA SHEET BFG540; BFG540/X; BFG540/XR NPN 9 GHz wideband transistor Product specification May Supersedes data of 1997 Dec
Page 2
Philips Semiconductors Product specification BFG540; BFG540/X; NPN 9 GHz wideband transistor BFG540/XR FEATURES PINNING High power gain handbook, 2 columns PIN DESCRIPTION Low noise figure BFG540 (Fig...
Page 3
Philips Semiconductors Product specification BFG540; BFG540/X; NPN 9 GHz wideband transistor BFG540/XR QUICK REFERENCE DATA SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT VCBO collector-base voltage ...
Page 4
Philips Semiconductors Product specification BFG540; BFG540/X; NPN 9 GHz wideband transistor BFG540/XR CHARACTERISTICS Tj °C unless otherwise specified. SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT...
Page 5
Philips Semiconductors Product specification BFG540; BFG540/X; NPN 9 GHz wideband transistor BFG540/XR MBG249 MRA749 handbook, halfpage handbook, halfpage Ptot (m W) IC (m A) Ts (o C) VCE V; Tj = 25 °...
Page 6
Philips Semiconductors Product specification BFG540; BFG540/X; NPN 9 GHz wideband transistor BFG540/XR MRA752 MRA753 handbook, halfpage handbook, halfpage gain gain (d B) (d B) Gmax GUM Gmax GUM IC (m...
Page 7
Philips Semiconductors Product specification BFG540; BFG540/X; NPN 9 GHz wideband transistor BFG540/XR MEA973 MEA972 −20 −20 handbook, halfpage handbook, halfpage dim d2 (d B) (d B) −30 −30 IC (m A) I...
Page 8
Philips Semiconductors Product specification BFG540; BFG540/X; NPN 9 GHz wideband transistor BFG540/XR handbook, full pagewidth 90° 0.2 Fmin = 1.3 d B MRA762 IC m A; VCE V; Zo Ω; f MHz. Fig.15 Noise c...
Page 9
Philips Semiconductors Product specification BFG540; BFG540/X; NPN 9 GHz wideband transistor BFG540/XR handbook, full pagewidth 90° 3 GHz 0.6 40 MHz MRA756 IC m A; VCE V; Zo Ω. Fig.17 Common emitter i...
Page 10
Philips Semiconductors Product specification BFG540; BFG540/X; NPN 9 GHz wideband transistor BFG540/XR handbook, full pagewidth 90° 3 GHz 180° 40 MHz 0° MRA758 IC m A; VCE V. Fig.19 Common emitter rev...
Page 11
Philips Semiconductors Product specification BFG540; BFG540/X; NPN 9 GHz wideband transistor BFG540/XR PACKAGE OUTLINES Plastic surface mounted package; 4 leads SOT143B e1 detail X scale DIMENSIONS (m...
Page 12
Philips Semiconductors Product specification BFG540; BFG540/X; NPN 9 GHz wideband transistor BFG540/XR Plastic surface mounted package; reverse pinning; 4 leads SOT143R e1 detail X scale DIMENSIONS (m...
Page 13
Philips Semiconductors Product specification BFG540; BFG540/X; NPN 9 GHz wideband transistor BFG540/XR DATA SHEET STATUS PRODUCT DATA SHEET STATUS DEFINITIONS STATUS Objective specification Developmen...
Page 14
Philips Semiconductors Product specification BFG540; BFG540/X; NPN 9 GHz wideband transistor BFG540/XR NOTES
Page 15
Philips Semiconductors Product specification BFG540; BFG540/X; NPN 9 GHz wideband transistor BFG540/XR NOTES
Page 16
Philips Semiconductors – a worldwide company Argentina: see South America Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB, Tel. +31 82785, Fax. +31 Australia: 3 Figtree Drive, HOMEBUSH, NSW 21...
