Philips 74ABT16825A 74ABTH16825A 18-bit Buffer Line Driver; Non-Inverting (3-State) Data Sheet User Manual
Summary
This high-performance BiCMOS integrated circuit functions as an 18-bit non-inverting, 3-State buffer/line driver. Ideal for system designers requiring robust bus interface buffering on wide data or address paths, it features low power dissipation, high speed, and advanced protection mechanisms like electrostatic discharge (ESD) shielding. The accompanying manual provides detailed technical specifications, electrical diagrams, pin configurations, and operational guidelines for seamlessly integrating the IC into complex electronic systems.
Page 1 Text Content

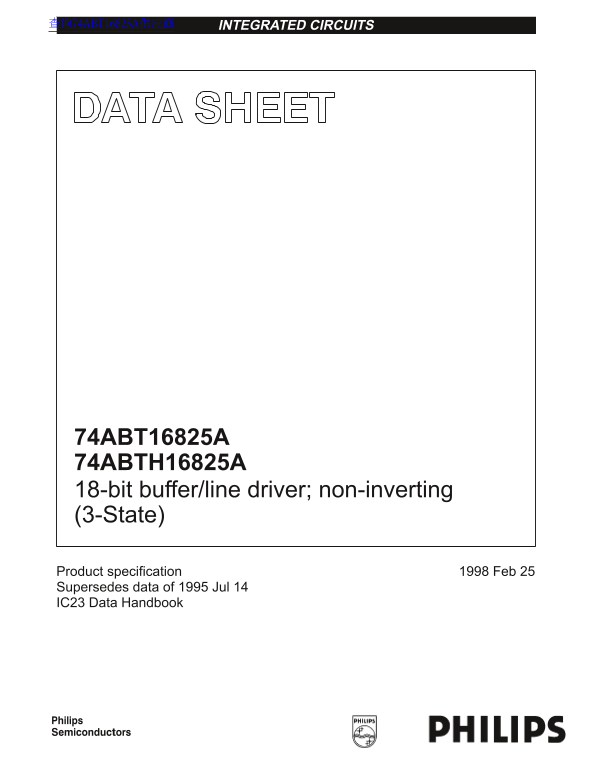

INTEGRATED CIRCUITS查询74ABT16825A供应商
74ABT16825A 74ABTH16825A 18-bit buffer/line driver; non-inverting (3-State)
Product specification 1998 Feb 25 Supersedes data of 1995 Jul 14 IC23 Data Handbook
Page Summary Contents For Philips 74ABT16825A 74ABTH16825A 18-bit Buffer Line Driver; Non-Inverting (3-State) Data Sheet User Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 10 |
| File Size | 78.42 KB |
| Published | June 19, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Is live insertion/extraction supported?
Live insertion/extraction is permitted.
What distinguishes the ABTH version from ABT?
ABTH incorporates bus-hold data inputs to eliminate external pull-up resistors.
What ESD protection levels are provided?
ESD protection exceeds 2000V per MIL STD and 200V per Machine Model.
What is the operating temperature range?
-40°C to +85°C.
