74ABT16652 74ABTH16652 16-bit transceiver/register, non-inverting (3-State)
Product specification 1998 Feb 27 Supersedes data of 1995 Aug 17 IC23 Data Handbook
Page Summary Contents For Philips 74ABT16652/74ABTH16652 16-bit Transceiver Register Non-Inverting (3-State) Data Sheet User Manual
Page 1

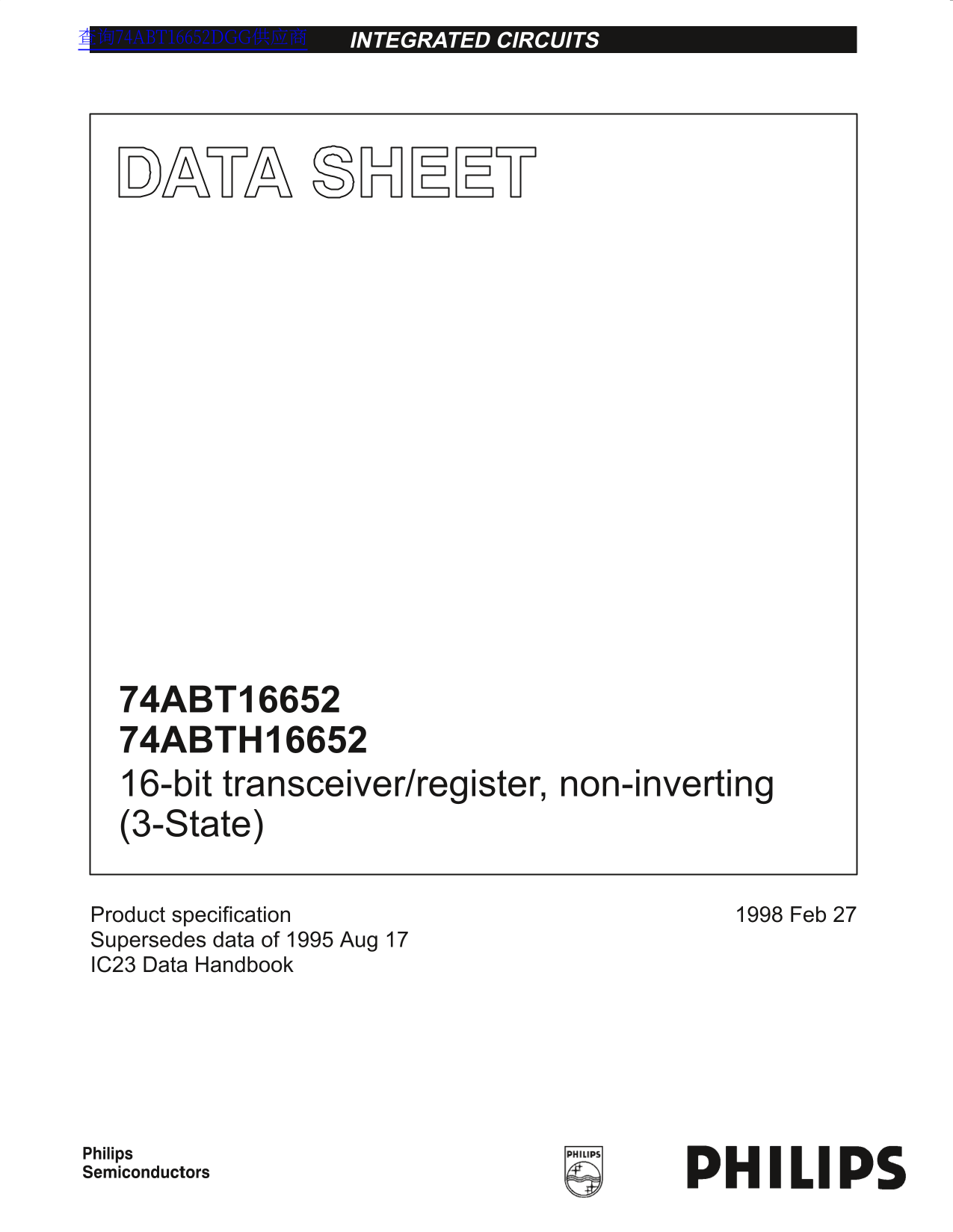

INTEGRATED CIRCUITS查询74ABT16652DGG供应商 74ABT16652 74ABTH16652 16-bit transceiver/register, non-inverting (3-State) Product specification 1998 Feb 27 Supersedes data of 1995 Aug 17 IC23 Data Handbook
Page 2
Philips Semiconductors Product specification 74ABT16652 16-bit transceiver/register, non-inverting (3-State) 74ABTH16652 FEATURES DESCRIPTION The 74ABT16652 high-performance Bi CMOS device combines lo...
Page 3
Philips Semiconductors Product specification 74ABT16652 16-bit transceiver/register, non-inverting (3-State) 74ABTH16652 PIN CONFIGURATION LOGIC SYMBOL (IEEE/IEC) 1OEAB 1OEBA 1OEBA EN1 [BA] 1CPAB 1CPB...
Page 4
Philips Semiconductors Product specification 74ABT16652 16-bit transceiver/register, non-inverting (3-State) 74ABTH16652 LOGIC DIAGRAM n OEBA n OEAB n CPBA n SBA n CPAB n SAB 1of 8 Channels n A1 n B1 ...
Page 5
Philips Semiconductors Product specification 74ABT16652 16-bit transceiver/register, non-inverting (3-State) 74ABTH16652 The following examples demonstrate the four fundamental transferred through the...
Page 6
Philips Semiconductors Product specification 74ABT16652 16-bit transceiver/register, non-inverting (3-State) 74ABTH16652 ABSOLUTE MAXIMUM RATINGS1, 2 SYMBOL PARAMETER CONDITIONS RATING UNIT VCC DC sup...
Page 7
Philips Semiconductors Product specification 74ABT16652 16-bit transceiver/register, non-inverting (3-State) 74ABTH16652 DC ELECTRICAL CHARACTERISTICS LIMITS Tamb = –40°C SYMBOL PARAMETER TEST CONDITI...
Page 8
Philips Semiconductors Product specification 74ABT16652 16-bit transceiver/register, non-inverting (3-State) 74ABTH16652 AC CHARACTERISTICS GND = 0V, t R = t F = 2.5ns, CL = 50p F, RL = 500Ω LIMITS Ta...
Page 9
Philips Semiconductors Product specification 74ABT16652 16-bit transceiver/register, non-inverting (3-State) 74ABTH16652 AC WAVEFORMS (Continued) VM = 1.5V, VIN = GND to 3.0V 3.0V or VCC whichever 3.0...
Page 10
Philips Semiconductors Product specification 74ABT16652 16-bit transceiver/register, non-inverting (3-State) 74ABTH16652 SSOP56: plastic shrink small outline package; 56 leads; body width 7.5 mm SOT37...
Page 11
Philips Semiconductors Product specification 74ABT16652 16-bit transceiver/register, non-inverting (3-State) 74ABTH16652 TSSOP56: plastic thin shrink small outline package; 56 leads; body width 6.1mm ...
Page 12
Philips Semiconductors Product specification 74ABT16652 74ABTH1665216-bit transceiver/register, non-inverting (3-State) Data sheet status Data sheet Product Definition [1] status status Objective Deve...
