Philips 74LV125 Quad Buffer Line Driver (3-State) Data Sheet User Manual
Summary
The 74LV125 is a low-voltage CMOS quad buffer and line driver optimized for stable signal transmission in digital and bus driving applications. This chip provides four non-inverting buffers with wide operating voltage support (1.0V to 5.5V), ensuring reliable performance in advanced, low-power electronic circuits. The manual contains essential specifications, including detailed electrical characteristics, timing diagrams, absolute maximum ratings, and pin configurations necessary for engineers integrating this component into complex digital systems across wide temperature ranges.

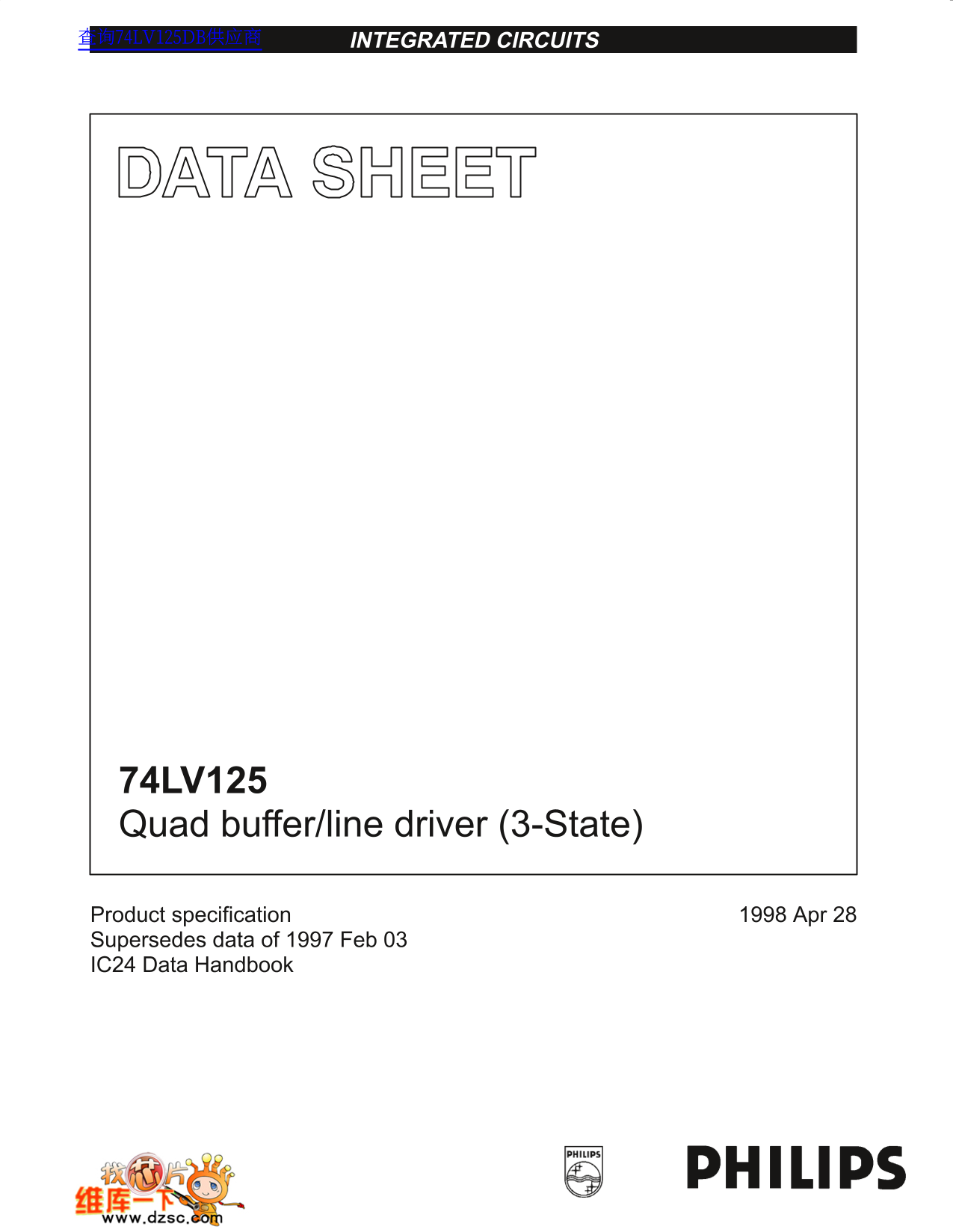

Page 1 Text Content
INTEGRATED CIRCUITS查询74LV125DB供应商
74LV125 Quad buffer/line driver (3-State)
Product specification 1998 Apr 28 Supersedes data of 1997 Feb 03 IC24 Data Handbook
Page Summary Contents For Philips 74LV125 Quad Buffer Line Driver (3-State) Data Sheet User Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 12 |
| File Size | 166.01 KB |
| Published | July 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating voltage range of the 74LV125?
It operates from 1.0V to 5.5V, optimized for 1.0V to 3.6V low voltage applications.
What package is the 74LV125DB?
It is a 14-Pin Plastic SSOP Type II, temperature range -40°C to +125°C.
How does the 3-state output work?
A HIGH at nOE makes the output high impedance. L nOE with L/H nA gives L/H nY.
What is the typical propagation delay?
Typical propagation delay from nA to nY is 9ns at VCC=3.3V, CL=15pF.
