Philips 74ABT16241A 74ABTH16241A 16-bit Buffer Driver (3-State) User Manual and Data Sheet
Summary
This Philips 74ABT16241A and 74ABTH16241A 16-bit buffer and driver integrated circuit datasheet provides complete electrical specifications. Covers 3-state output control with four output enables, TTL input and output switching levels, bus-hold data input functionality, live insertion protection, and latch-up protection exceeding 500mA per JEDEC standards for reliable bus interface applications.

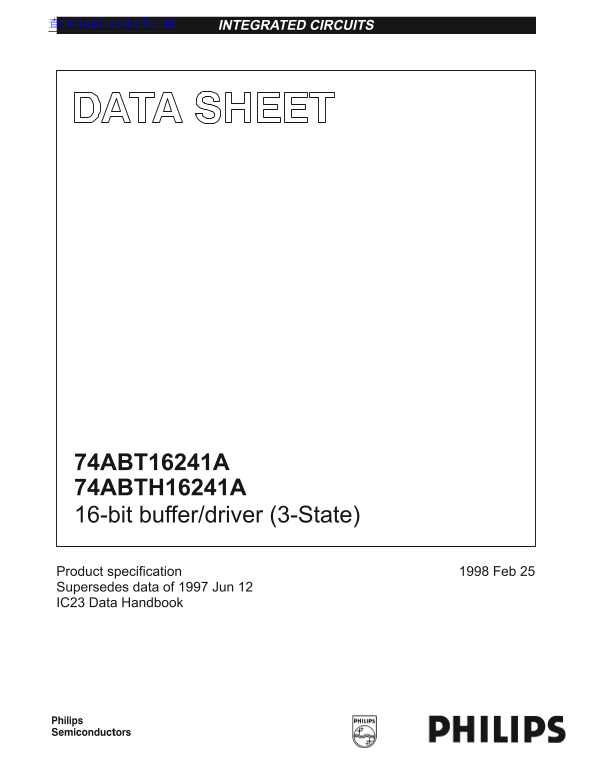

Page 1 Text Content
INTEGRATED CIRCUITS查询74ABT16241A供应商
74ABT16241A 74ABTH16241A 16-bit buffer/driver (3-State)
Product specification 1998 Feb 25 Supersedes data of 1997 Jun 12 IC23 Data Handbook
Page Summary Contents For Philips 74ABT16241A 74ABTH16241A 16-bit Buffer Driver (3-State) User Manual and Data Sheet
Manual Details
| Brand | Philips |
|---|---|
| Pages | 10 |
| File Size | 77.38 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Which model, 74ABT16241A or 74ABTH16241A, is required if I wish to eliminate external pull-up resistors for unused inputs?
The 74ABTH16241A incorporates bus hold data inputs which eliminates the need for external pull up resistors.
What are the maximum output current capabilities of this buffer/driver?
The device has an output capability of +64mA/-32mA.
How can I selectively control the four groups of 3-State outputs?
It features four separate Output Enables (1OE, 2OE, 3OE, 4OE) to allow controlling four of the 3-State outputs.
What level of protection against electrical surges does this integrated circuit offer?
The device offers ESD protection exceeding 2000V per MIL STD 883 Method 3015 and 200V per Machine Model.
