The WJ-PB65E01 Network Board provides critical expansion connectivity for the Matrix Switcher (WJ-SX650 Series), enabling large-scale surveillance system integration up to 512 cameras and 64 monitors. Connecting the Central Processing Unit (WJ-MPU955A) via Ethernet, this board features multiple alarm output ports and specialized video I/O for enhanced monitoring capabilities. The manual is a technical guide intended for qualified service personnel who need comprehensive installation instructions and operational details for setting up complex security networks.

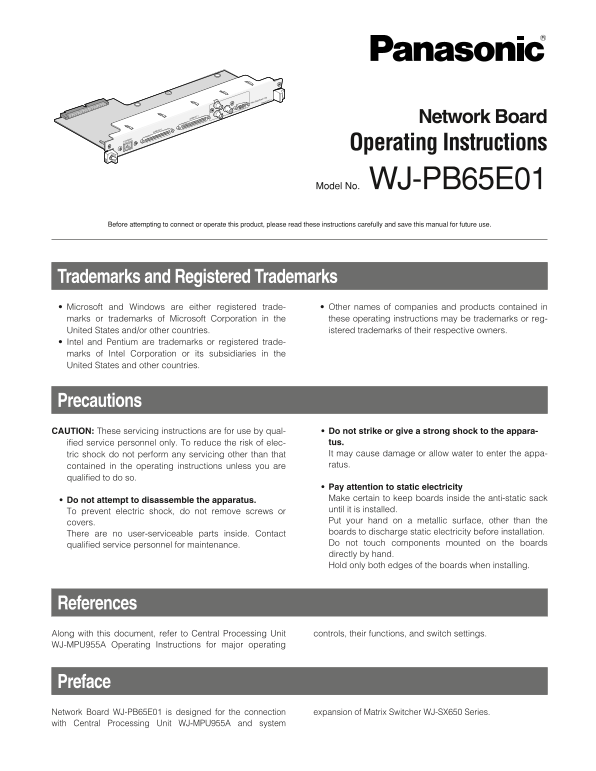

Page 1 Text Content
Video Output Board 1 Only Nework OUT X-1
ALARM OUT 1 Network Board ALARM OUT 2
10/100 BASE-T
Operating Instructions Model No. WJ-PB65E01
Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
Trademarks and Registered Trademarks
Microsoft and Windows are either registered trade- Other names of companies and products contained in marks or trademarks of Microsoft Corporation in the these operating instructions may be trademarks or reg- United States and/or other countries. istered trademarks of their respective owners.
Intel and Pentium are trademarks or registered trade- marks of Intel Corporation or its subsidiaries in the United States and other countries.
Precautions CAUTION: These servicing instructions are for use by qual- Do not strike or give a strong shock to the appara-
ified service personnel only. To reduce the risk of elec- tus. tric shock do not perform any servicing other than that It may cause damage or allow water to enter the appa- contained in the operating instructions unless you are ratus.
qualified to do so.
Pay attention to static electricity Do not attempt to disassemble the apparatus. Make certain to keep boards inside the anti-static sack To prevent electric shock, do not remove screws or until it is installed. covers. Put your hand on a metallic surface, other than the There are no user-serviceable parts inside. Contact boards to discharge static electricity before installation. qualified service personnel for maintenance. Do not touch components mounted on the boards directly by hand. Hold only both edges of the boards when installing.
References Along with this document, refer to Central Processing Unit controls, their functions, and switch settings. WJ-MPU955A Operating Instructions for major operating
Preface Network Board WJ-PB65E01 is designed for the connection expansion of Matrix Switcher WJ-SX650 Series. with Central Processing Unit WJ-MPU955A and system
Page Summary Contents For Panasonic WJPB65E01 User's Manual
Manual Details
| Brand | Panasonic |
|---|---|
| Pages | 8 |
| File Size | 938.96 KB |
| Published | June 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum camera and monitor capacity with this network board?
With this board available, the system composition can be expanded to connect up to 512 cameras and 64 monitors.
How should I install or mount the network board?
Power off the WJ-SX650 Series before mounting. The board must be fixed directly into the OUT X-1 slot using the supplied screws.
What is the voltage and type of the alarm output signal?
The Alarm Output provides an open collector output, supporting up to 24 V DC and 100 mA.
Who can service or disassemble this equipment?
Only qualified service personnel should perform maintenance. Do not attempt to disassemble the apparatus, as there are no user-serviceable parts inside.
