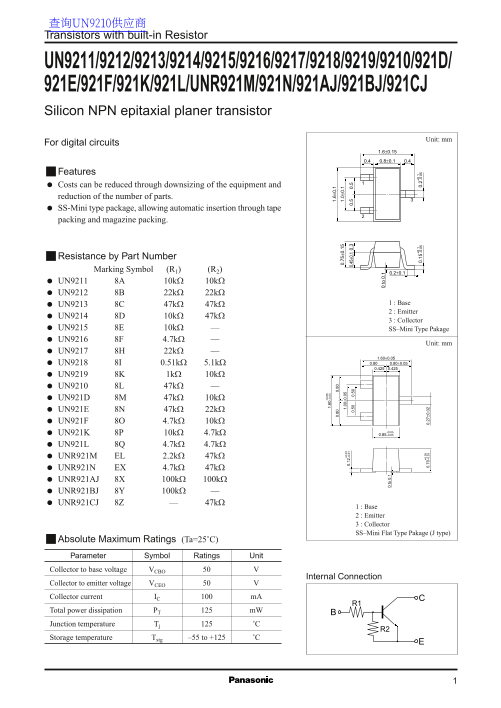

查询UN9210供应商 Transistors with built-in Resistor
UN9211/9212/9213/9214/9215/9216/9217/9218/9219/9210/921D/ 921E/921F/921K/921L/UNR921M/921N/921AJ/921BJ/921CJ Silicon NPN epitaxial planer transistor
Unit: mm
For digital circuits
Features Costs can be reduced through downsizing of the equipment and reduction of the number of parts. SS-Mini type package, allowing automatic insertion through tape packing and magazine packing.
Resistance by Part Number Marking Symbol (R1) (R2)
UN9211 8A 10kΩ 10kΩ UN9212 8B 22kΩ 22kΩ
UN9213 8C 47kΩ 47kΩ 1 : Base 2 : Emitter
UN9214 8D 10kΩ 47kΩ
3 : Collector
UN9215 8E 10kΩ 1. –0 .0 SS–Mini Type Pakage
UN9216 8F 4.7kΩ
Unit: mm 0. ±0 .1 1. 0± 0.
UN9217 8H 22kΩ 0. 0. 0. ±0 .1 0. 0. 0.
1.60±0.05 UN9218 8I 0.51kΩ 5.1kΩ 0.80±0.050.80 0.425 0.425
UN9219 8K 1kΩ 10kΩ
to .1
UN9210 8L 47kΩ
to .1
UN921D 8M 47kΩ 10kΩ UN921E 8N 47kΩ 22kΩ
0. 0. UN921F 8O 4.7kΩ 10kΩ 0. -0 .0 0. 2+ -0 .0
UN921K 8P 10kΩ 4.7kΩ +0.05 0.85 –0.03
UN921L 8Q 4.7kΩ 4.7kΩ UNR921M EL 2.2kΩ 47kΩ UNR921N EX 4.7kΩ 47kΩ UNR921AJ 8X 100kΩ 100kΩ UNR921BJ 8Y 100kΩ UNR921CJ 8Z 47kΩ
1 : Base 2 : Emitter 3 : Collector SS–Mini Flat Type Pakage (J type)
Absolute Maximum Ratings (Ta=25˚C) Parameter Symbol Ratings Unit Collector to base voltage VCBO
Internal Connection
Collector to emitter voltage VCEO Collector current IC m A
Total power dissipation PT m W Junction temperature Tj ˚C
Storage temperature Tstg –55 to +125 ˚C
