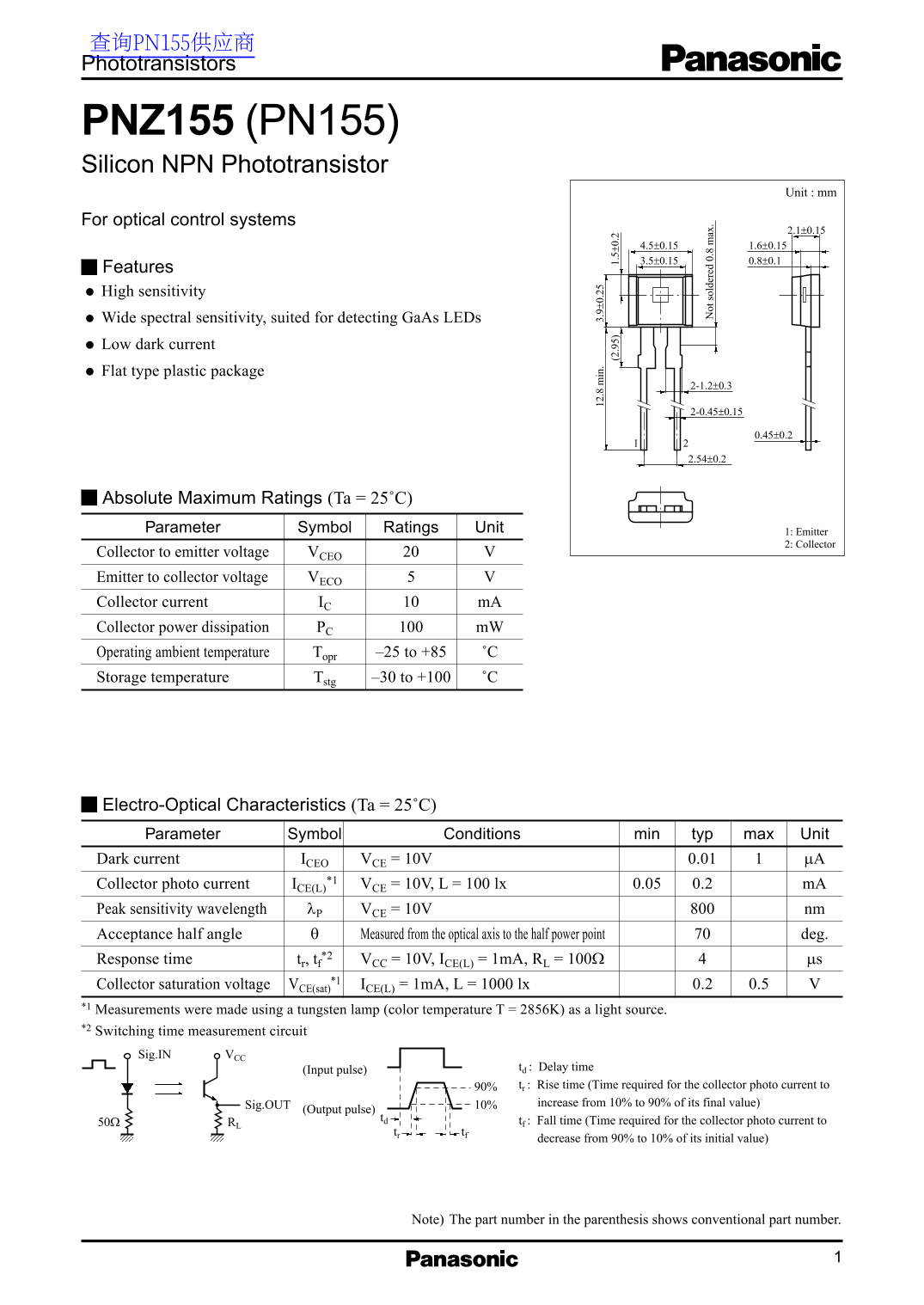

Page 1 Text Content
查询PN155供应商 Phototransistors
PNZ155 (PN155) Silicon NPN Phototransistor
Unit : mm
For optical control systems
Features High sensitivity Wide spectral sensitivity, suited for detecting Ga As LEDs Low dark current Flat type plastic package
Absolute Maximum Ratings (Ta = 25˚C) Parameter Symbol Ratings Unit 1: Emitter
2: Collector
Collector to emitter voltage VCEO Emitter to collector voltage VECO
Collector current IC m A .8 in 3. 9± 0. (2 .9 5) 1. 5± 0.
Collector power dissipation PC m W Operating ambient temperature Topr –25 to +85 ˚C Storage temperature Tstg –30 to +100 ˚C
ot ol de re 0. ax
Electro-Optical Characteristics (Ta = 25˚C) Parameter Symbol Conditions min typ max Unit Dark current ICEO VCE = 10V 0.01 µA
Collector photo current ICE(L) VCE = 10V, L = 100 lx 0.05 0.2 m A Peak sensitivity wavelength λP VCE = 10V nm Acceptance half angle Measured from the optical axis to the half power point deg. Response time tr, tf*2 VCC = 10V, ICE(L) = 1m A, RL = 100Ω µs
Collector saturation voltage VCE(sat) ICE(L) = 1m A, L = 1000 lx 0.2 0.5 *1 Measurements were made using a tungsten lamp (color temperature T = 2856K) as a light source. *2 Switching time measurement circuit
Sig.IN VCC
(Input pulse) td : Delay time 90% tr : Rise time (Time required for the collector photo current to Sig.OUT 10% increase from 10% to 90% of its final value)
(Output pulse)
td tf : Fall time (Time required for the collector photo current to
50Ω RL
tr tf
decrease from 90% to 10% of its initial value)
Note) The part number in the parenthesis shows conventional part number.
