Panasonic PANEL DISPLAY UNITS 13 mm 16 × 16 Dots LNP129011 Owner's Manual
Summary
This professional panel display unit (240x240mm) features high-brightness LED technology with selectable Red, Green, or Amber colors. The technical guide provides comprehensive operational details, including absolute maximum ratings, environmental tolerances, and precise electrical specifications for logical integration. This manual is essential for engineers and developers who require reliable, customizable visual displays for industrial automation, signaling systems, and embedded applications.
Page 1 Text Content

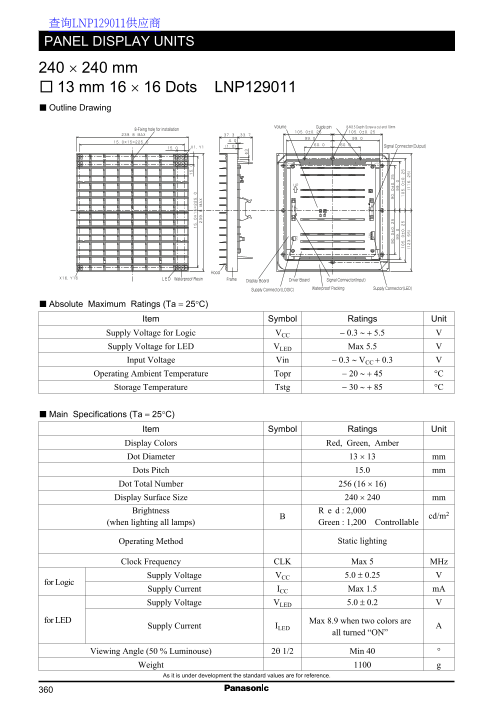

查询LNP129011供应商 PANEL DISPLAY UNITS
240 × 240 mm 13 mm 16 × 16 Dots LNP129011 ■Outline Drawing
■Absolute Maximum Ratings (Ta = 25°C)
Item Symbol Ratings Unit
Supply Voltage for Logic VCC − 0.3 ∼ + 5.5
Supply Voltage for LED VLED Max 5.5 Input Voltage Vin − 0.3 ∼ VCC + 0.3 Operating Ambient Temperature Topr − 20 ∼ + 45 °C Storage Temperature Tstg − 30 ∼ + 85 °C
■Main Specifications (Ta = 25°C)
Item Symbol Ratings Unit Display Colors Red, Green, Amber Dot Diameter 13 × 13 mm Dots Pitch 15.0 mm Dot Total Number 256 (16 × 16) Display Surface Size 240 × 240 mm
Brightness d : 2,000
cd/m2
(when lighting all lamps) Green : 1,200 Controllable
Operating Method Static lighting
Clock Frequency CLK Max 5 MHz Supply Voltage VCC 5.0 ± 0.25
for Logic
Supply Current ICC Max 1.5 m A Supply Voltage VLED 5.0 ± 0.2
for LED Max 8.9 when two colors are
Supply Current ILED
all turned “ON”
Viewing Angle (50 % Luminouse) Min 40 °2θ 1/2
Weight As it is under development the standard values are for reference.
