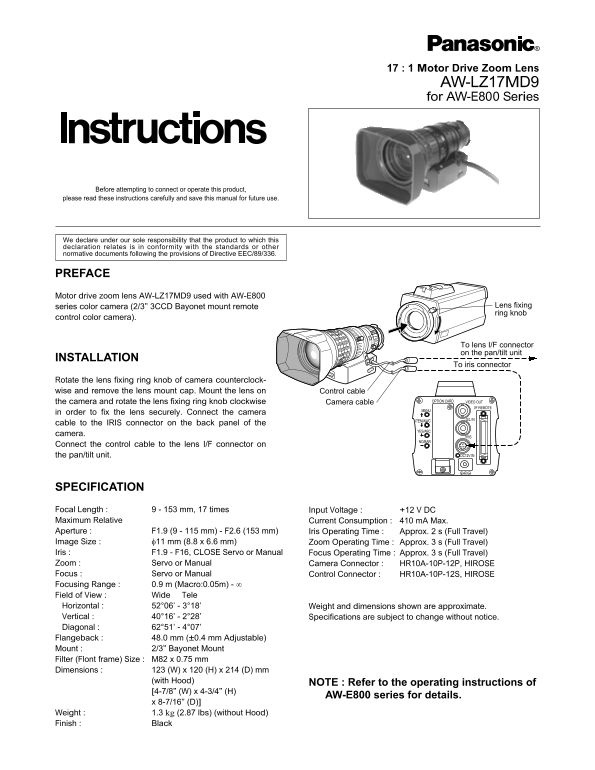

Page 1 Text Content
17 : 1 Motor Drive Zoom Lens
AW-LZ17MD9 for AW-E800 Series
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
We declare under our sole responsibility that the product to which this declaration relates is in conformity with the standards or other normative documents following the provisions of Directive EEC/89/336.
PREFACE Motor drive zoom lens AW-LZ17MD9 used with AW-E800
series color camera (2/3” 3CCD Bayonet mount remote Lens fixing ring knob
control color camera).
To lens I/F connector on the pan/tilt unit
INSTALLATION
To iris connector
Rotate the lens fixing ring knob of camera counterclock- wise and remove the lens mount cap. Mount the lens on Control cable
the camera and rotate the lens fixing ring knob clockwise OPTION CARD VIDEO OUT
Camera cable
I/F REMOTE
in order to fix the lens securely. Connect the camera
ITEM/AWC G/L IN
cable to the IRIS connector on the back panel of the
YES/ABC
camera.
NO/BAR
Connect the control cable to the lens I/F connector on
the pan/tilt unit. DC12V IN
SPECIFICATION Focal Length : 9 - 153 mm, 17 times Input Voltage : +12 V DC Maximum Relative Current Consumption : 410 m A Max. Aperture : F1.9 (9 - 115 mm) - F2.6 (153 mm) Iris Operating Time : Approx. 2 s (Full Travel) Image Size : φ11 mm (8.8 x 6.6 mm) Zoom Operating Time : Approx. 3 s (Full Travel) Iris : F1.9 - F16, CLOSE Servo or Manual Focus Operating Time : Approx. 3 s (Full Travel) Zoom : Servo or Manual Camera Connector : HR10A-10P-12P, HIROSE Focus : Servo or Manual Control Connector : HR10A-10P-12S, HIROSE Focusing Range : 0.9 m (Macro:0.05m) - ∞ Field of View : Wide Tele Horizontal : 52°06’ - 3°18’ Weight and dimensions shown are approximate. Vertical : 40°16’ - 2°28’ Specifications are subject to change without notice. Diagonal : 62°51’ - 4°07’ Flangeback : 48.0 mm (±0.4 mm Adjustable) Mount : 2/3” Bayonet Mount Filter (Flont frame) Size : M82 x 0.75 mm Dimensions : 123 (W) x 120 (H) x 214 (D) mm
(with Hood) NOTE : Refer to the operating instructions of [4-7/8” (W) x 4-3/4” (H)
AW-E800 series for details.
Weight : 1.3 kg (2.87 lbs) (without Hood) Finish : Black
