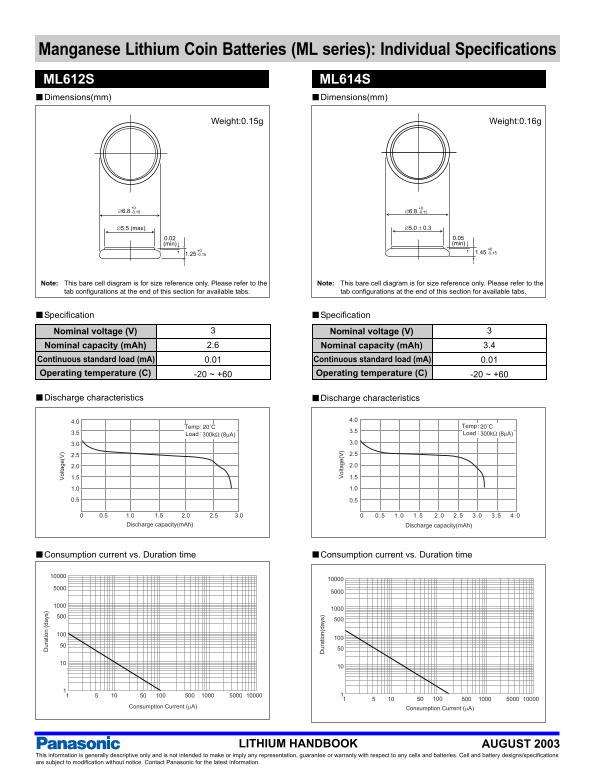

Manganese Lithium Coin Batteries (ML series): Individual Specifications
ol ta ge (V
ML612S ML614S ■ Dimensions(mm) ■ Dimensions(mm)
Weight:0.15g Weight:0.16g
∅5.5 (max) ∅5.0 ± 0.3
0.02 0.05 (min) (min)
Note: This bare cell diagram is for size reference only. Please refer to the Note: This bare cell diagram is for size reference only. Please refer to the tab configurations at the end of this section for available tabs. tab configurations at the end of this section for available tabs.
■ Specification ■ Specification
ur at io n( da ys
Nominal voltage (V) Nominal voltage (V)
ol ta ge (V
Nominal capacity (m Ah) 2.6 Nominal capacity (m Ah) 3.4
Continuous standard load (m A) 0.01 Continuous standard load (m A) 0.01 Operating temperature (C) -20 ~ +60 Operating temperature (C) -20 ~ +60
■ Discharge characteristics ■ Discharge characteristics
Temp Temp
Load 300k (8 A) Load 300k (8 A)
Discharge capacity(m Ah) Discharge capacity(m Ah)
■ Consumption current vs. Duration time ■ Consumption current vs. Duration time
Consumption Current (µA) Consumption Current (µA)
AUGUST 2003LITHIUM HANDBOOK
This information is generally descriptive only and is not intended to make or imply any representation, guarantee or warranty with respect to any cells and batteries. Cell and battery designs/specifications are subject to modification without notice. Contact Panasonic for the latest information.
