Panasonic EY6450 User's Manual

Summary

The Model EY6450 is a powerful Cordless Drill and Driver designed for versatile use in construction and DIY projects. This operating manual provides comprehensive guidance covering everything from essential setup and daily operation to critical safety protocols, electrical precautions, maintenance procedures, and best practices for longevity. It is essential reading for all users of this tool, ensuring safe, efficient, and reliable performance when drilling into wood or driving fasteners.

📄 Preview ‹ PAGE OF 12 ›

‹

›

Page 1 Text Content

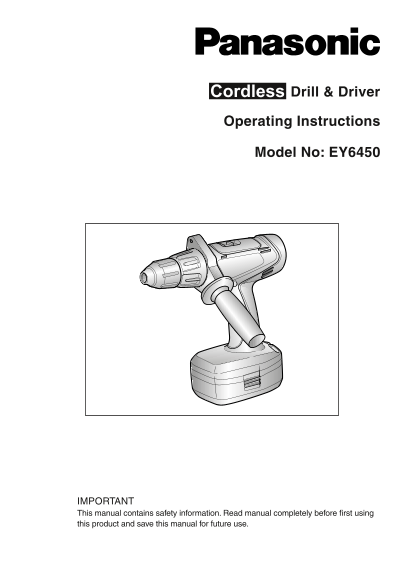

Cordless Drill & Driver

Operating Instructions

Model No: EY6450

IMPORTANT This manual contains safety information. Read manual completely before first using this product and save this manual for future use.

Page Summary Contents For Panasonic EY6450 User's Manual

Page 1 Cordless Drill & Driver Operating Instructions Model No: EY6450 IMPORTANT This manual contains safety information. Read manual completely before first using this product and save this manual for f...

Page 2 . GENERAL SAFE- Personal Safety 6) Stay alert, watch what you are TY RULES - FOR doing, and use common sense when operating a power tool. Do ALL BATTERY not use tool while tired or under the influence...

Page 3 14) Do not use tool if switch does not Service turn it on or off. 21) Tool service must be performed A tool that cannot be controlled with only by qualified repair personnel. the switch is dangerous a...

Page 4 8) During charging, the charger may become slightly warm. This is nor- .FOR mal. Do not charge the battery for a BATTERY CHARGER long period. Symbol Meaning & BATTERY PACK Volts IMPORTANT SAFETY I...

Page 5 20) Do not abuse cord. Never carry char- RECOMMENDED MINIMUM AWG SIZE OF ger by cord or yank it to disconnect EXTENSION CORDS FOR BATTERY CHARGERS from outlet. Keep cord away from heat, oil and sharp ...

Page 6 .FUNCTIONAL DESCRIPTION (A) (B) (E) (K) (A) Keyless drill chuck (EY9799) (G) Battery pack(EY9251) (B) Clutch handle (H) Battery pack release button (C) Forward / Reverse lever (I) Battery charger (EY0...

Page 7 .ASSEMBLY Attaching or removing battery pack Attaching or removing bit 1. To connect the battery pack: NOTE: Insert the battery pack. It snaps into When attaching or removing a bit, place to indicate ...

Page 8 CAUTION: tion. (Using at high speed while a Do not operate Forward/Reverse strong force is applied may cause lever until the chuck comes to a com- a motor breakdown.) plete stop. Shifting during rotat...

Page 9 Battery charger (EY0110) 1. Plug the charger into the AC outlet. NOTE: Sparks may be produced when the plug is inserted into the AC power supply, but this is not a problem in terms of safety. 2. Inser...

Page 10 NOTE: packs consecutively. When charging a cool battery Do not insert your fingers into con- pack (below 5°C (41°F)) in a warm tact hole, when holding charger or place, leave the battery pack at the a...

Page 11 . SPECIFICATIONS MAIN UNIT Model EY6450 Motor DC Motor 18 V LOW 70 ~ 430 /min (rpm) No load speed HIGH 240 ~ 1500 /min (rpm) Chuck capacity ø 0.5 ~ ø 13 mm (0 ~ 1/2") Approx. 2 Nm, (20 k f-cm, 18...

Page 12 30-DAY QUALITY SATISFACTION GUARANTEE: If you are dissatisfied with any Panasonic Cordless Power Tool for any reason, simply return it to the place of purchase with a dated proof of purchase, in the o...
