Panasonic CWXC145HU User Guide and Manual
Summary
Optimize your comfort with this essential operation manual for CW-XC series Room Air Conditioners. This comprehensive guide provides everything you need to know—from expert installation tips and basic controls usage to detailed, critical safety precautions. Learn proper air filter cleaning techniques, troubleshoot common issues, and understand routine care procedures necessary to maintain peak performance over time. Designed for new owners, this manual ensures your unit is set up correctly, operated safely, and maintained efficiently across all models.
Page 1 Text Content

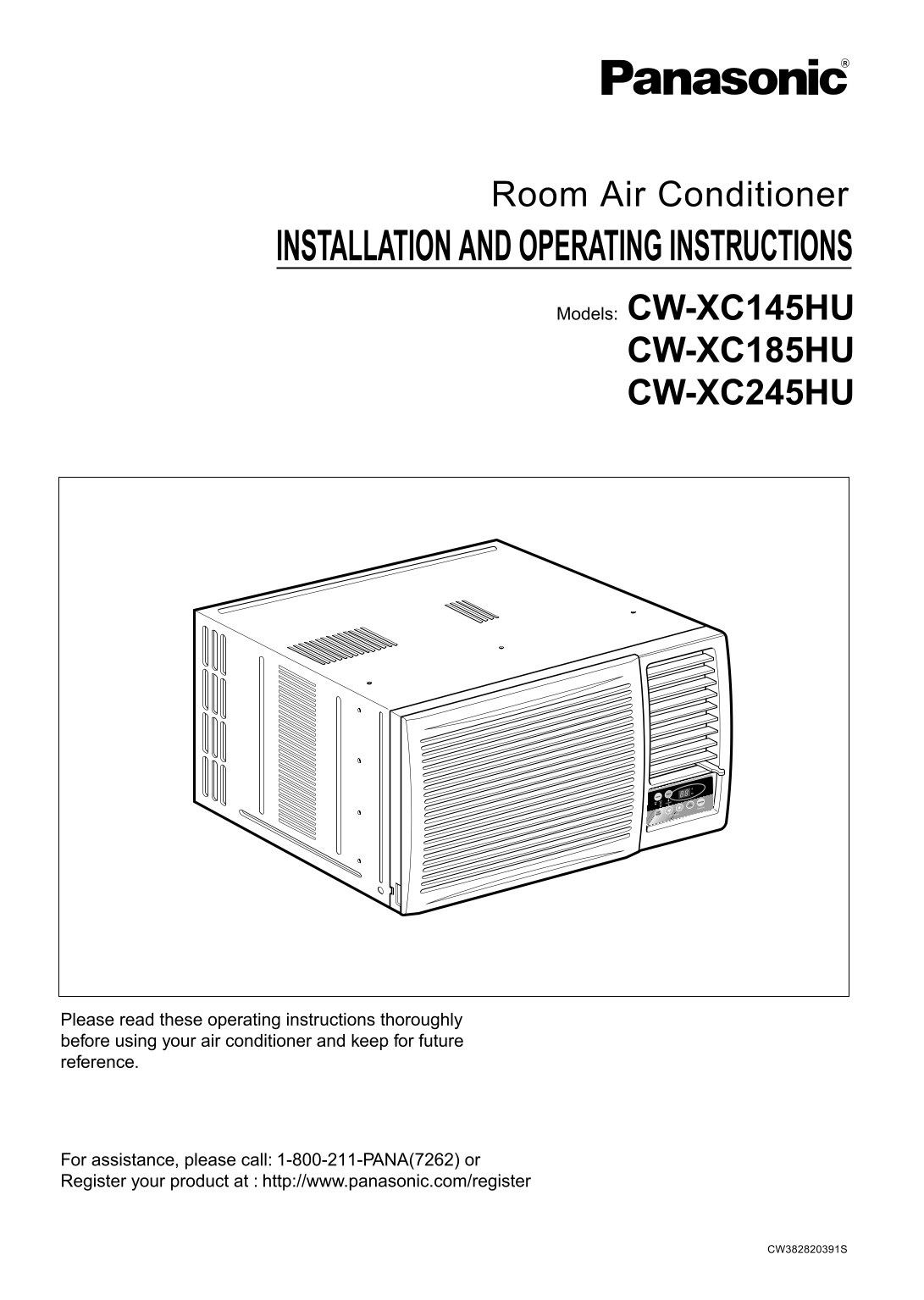

Room Air Conditioner
INSTALLATION AND OPERATING INSTRUCTIONS
Models: CW-XC145HU CW-XC185HU CW-XC245HU
Please read these operating instructions thoroughly before using your air conditioner and keep for future reference.
For assistance, please call: 1-800-211-PANA(7262) or Register your product at : http://www.panasonic.com/register
CW382820391S
Page Summary Contents For Panasonic CWXC145HU User Guide and Manual
Page 1
Room Air Conditioner INSTALLATION AND OPERATING INSTRUCTIONS Models: CW-XC145HU CW-XC185HU CW-XC245HU Please read these operating instructions thoroughly before using your air conditioner and keep for...
Page 2
Be fo re yo ca ll fo rs er vi ce Fe at ur es an In st al la tio Ab ou tth e C on tro lso nt he Air Co nd itio ne Sa fe ty Pr ec au ti Safety Precautions Safety Precautions .............3 FOR YOUR RECO...
Page 3
Safety Precau tio Safety Precautions To prevent injury to the user or other people and property damage, the following instructions must be followed. ■Incorrect operation due to ignoring of instruction...
Page 4
Sa fe ty Pr ec au ti When the air filter is to be Do not clean the air Ventilate well when used removed, do not touch the conditioner with water. together with a stove, etc. metal parts of the unit. •...
Page 5
Aboutthe Controlsonthe Air Conditioner About the Controls on the Air Conditioner Controls OPERATION ON/OFF TIMER • To turn the air conditioner ON, push the button. To turn You can set the time when th...
Page 6
Ab ou tth e C on tro lso nt he Air Co nd itio ne Remote controller Precaution: The Remote Controller will not function properly if strong light strikes the sensor window of the air conditioner or if t...
Page 7
Aboutthe Controlsonthe Air Conditioner Additional controls and important information. Ventilation The ventilation lever must be in the CLOSE position in order to maintain the best cooling conditions. ...
Page 8
Ab ou tth e C on tro lso nt he Air Co nd itio ne Care and Maintenance TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET. Air Filter Cleaning The air filter behind the front grille...
Page 9
Features and Installation Features Learning parts name prior to installation will help you understand the installation procedure. Features VERTICAL AIR DEFLECTOR (HORIZONTAL LOUVER) HORIZONTAL AIR DEF...
Page 10
Fe at ur es an In st al la tio Installation How to Install the Unit INSIDE OUTSIDE Fence Awning 1/4 Bubble Radiation Cooled Air About 1/2" Over 20" Level 1. To prevent vibration and noise, m...
Page 11
Features and Installation Installation Kits Contents Foam strip Foam-PE (Plain-Back) (Adhesive-Backed) Foam-PE (Adhesive-Backed) Left frame curtain Drain pipe Window locking bracket Right frame curtai...
Page 12
Fe at ur es an In st al la tio Suggested Tool Requirements SCREWDRIVER(+, -), RULER, KNIFE, HAMMER, PENCIL, LEVEL PREPARATION OF CHASSIS Shipping screws 1. Remove the screws which fasten the cabinet a...
Page 13
Features and Installation Cabinet Installation 1. Open the window. Mark a line on the center of the window stool between the side Sill Bracket Support window stop moldings. Bracket Loosely attach the ...
Page 14
Fe at ur es an In st al la tio 5. Pull each Frame curtain fully to each window sash track, and pull the bottom window sash Screw (Type C) down behind the Top retainer bar until it meets. 6. Attach eac...
Page 15
Features and Installation Electrical Data Power cord may include a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by ...
Page 16
Fe at ur es an In st al la tio Electrical Safety Because of potential safety hazards, we strongly IMPORTANT discourage the use of an adapter plug. However, if (PLEASE READ CAREFULLY) you wish to use a...
Page 17
Before you callforservice... Before you call for service... Troubleshooting Tips Save time and money! Review the chart below first and you may not need to call for service. Normal Operation • You may ...
Page 18
An tes de av isa ra l S erv ici o T éc nic Ca ra ct er íst ica se In st al ac io In st ru cc io ne sd e F un cio na ie nt Pre cau cio ne s Im po rta nte sd es eg uri da Precauciones Importantes de PAR...
Page 19
Precauciones Importantesdeseguridad Precauciones Importantes de Seguridad Para prevenir tanto lesiones al usuario u otras personas como daños materiales, es preciso seguir estas instrucciones. ■El man...
Page 20
Pre cau cio ne s Im po rta nte sd es eg uri da PRECAUCION Cuando se vaya a quitar el No limpie el acondicionador Ventile bien cuando utilice el filtro de aire no toque las de aire con agua. acondicion...
Page 21
Instruccionesde Funcionam iento Instruccionnes de Funcionamiento Controles ENECNDIDO/APAGADO 2 Horas →3 Horas →4 Horas →5 Horas → • Para ENCENDER el sistema presione el botón, y para 6 Horas →7 Horas ...
Page 22
In st ru cc io ne sd e F un cio na ie nt Control remoto Precaución: El dispositivo de control remoto no funcionará adecuadamente si la ventana sensora del acondicionador de aire es expuesta a luz fuer...
Page 23
Instruccionesde Funcionam iento Controles adicionales e informacion importante. Ventilación La palanca de ventilación debe estar en posición CERRADA para poder mantener las mejores condiciones de enfr...
Page 24
In st ru cc io ne sd e F un cio na ie nt Cuidado y Mantenimiento APAGUE EL AIRE ACONDICIONADO Y SAQUE EL ENCHUFE DEL TOMA CORRIENTE DE LA PARED. Limpieza de filtro de Aire El filtro de aire detrás de ...
Page 25
Característicase Instalacion Características Aprender el nombre de las partes antes de la instalación le ayudará a entender el proceso de instalación. Características DEFLECTOR DE AIRE HORIZONTAL (VEN...
Page 26
Ca ra ct er íst ica se In st al ac io Instrucciones de Instalación Elija el major lugar Barda Toldo Radiacion 1/4 Ampolla Air de Calor Enfriado Aproximadamente / Arriba de 20" Nivel 1. Para preve...
Page 27
Característicase Instalacion Contenido del juego de instalación TIRA DE GOMA CINTA DE ESPUMA CINTA DE ESPUMA PANEL GUÍA Tapa del desagüe SOPORTE DE CERRADURA PANEL GUÍA MENSULA DEL MENSULA DE SOPORTE ...
Page 28
Ca ra ct er íst ica se In st al ac io Requisitos de las herramientas sugeridas DESARMADOR ( + , - ), REGLA, CUCHILLO, MARTILO, LAPIZ, NIVEL PREPARACION DEL CHASIS 1. Retire los 4 tornillos que unen el...
Page 29
Característicase Instalacion Instalación del Gabinete 1. Abra la ventana. Marque una línea en el MENSULA DEL centro de la repisa de la ventana entre las ALFEIZAR molduras de tope de la ventana lateral...
Page 30
Ca ra ct er íst ica se In st al ac io 5. Hale cada panel guía completamente a cada TORNILLO lado de la ventana y repita del paso 2. (TIPO C) 6. Adjunte cada panel guía a cada lado de la ventana usando...
Page 31
Característicase Instalacion Datos Electricos El cable de alimentación puede incluir un dispositivo interruptor de corriente. La carcasa del enchufe cuenta con un botón de prueba y otro de reinicio. E...
Page 32
Ca ra ct er íst ica se In st al ac io Informacion Electrica Debido al peligro potencial, nosotros no IMPORTANTE recomendamos el uso de adaptadores. Sin (FAVORLEA CON ATENCIÓN) embargo, si usted desea ...
Page 33
Antesdeavisaral Servicio Técnico Antes de avisar al Servicio Técnico Tips para solucionar problemas (Ahorre temopo y dinero) Cuando tenga algún problema primero consulte el cuadro que se encuentra aba...
Page 34
PRODUCT SPECIFICATION SPÉCIFICATIONS ESPECIFICIONES DEL PRODUCTO Model Modèle CW-XC145HU CW-XC185HU Modelo COOLING CAPACITY Btu/h 13,800 17,800/17,300 CAPACITÉ DE REFROIDISSEMENT CAPACIDAD DE ENFRIAMI...
Page 35
PRODUCT SPECIFICATION SPÉCIFICATIONS ESPECIFICIONES DEL PRODUCTO Model Modèle CW-XC245HU Modelo COOLING CAPACITY Btu/h 23,800/23,300 CAPACITÉ DE REFROIDISSEMENT CAPACIDAD DE ENFRIAMIENTO ELECTRICAL RA...
Page 36
Panasonic Consumer Electronics Company, Division of Panasonic Puerto Rico, Inc., Division of Panasonic Corporation of North Ave. 65 de Infanteria, Km. 9.5 America San Gabriel Industrial Park Carolina,...
