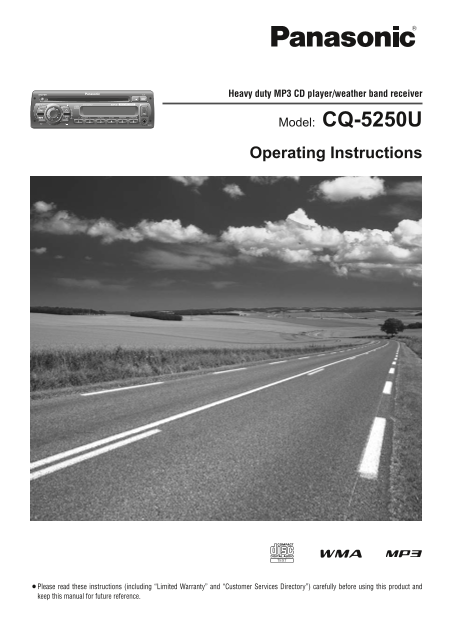

5250U_001_cov.qxd 08.5.13 9:19 AM ページ2
Heavy duty MP3 CD player/weather band receiver
Model: CQ-5250U Operating Instructions
¡Please read these instructions (including “Limited Warranty” and “Customer Services Directory”) carefully before using this product and keep this manual for future reference.
Page Summary Contents For Panasonic CQ5250U User's Manual
Page 1
5250U_001_cov.qxd 08.5.13 9:19 AM ページ2 Heavy duty MP3 CD player/weather band receiver Model: CQ-5250U Operating Instructions ¡Please read these instructions (including “Limited Warranty” and “Customer...
Page 2
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ2 Safety Information Read the operating instructions for the unit and all other This manual uses pictographs to show you how to use the components of your car au...
Page 3
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ3 Observe the following cautions when Caution installing. Observe the following cautions when using Refer wiring and installation to qualified service this unit....
Page 4
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ4 Safety Information (continued) The following applies only in the U.S.A. Warning Part 15 of the FCC Rules TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK OR FCC Wa...
Page 5
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ5 Limited Warranty Some states do not allow the exclusion or limitation of incidental or conse- U.S.A. quential damages, or limitations on how long an implied wa...
Page 6
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ6 Before Reading These Instructions Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many...
Page 7
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ7 Features Front AUX terminal USB Connector Your mobile audio player and other devices are connectable to The USB connector is equipped on the front panel. this ...
Page 8
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ8 Preparation First time power on Turn the key in the ignition until the accessory indicator lights. Press [SRC] (PWR). Clock adjustment The 12-hour system is us...
Page 9
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ9 Controls Layout page 10) (Eject) (a page 14)SRC Source (a PWR Power (a page 10) BAND (a page 12) Disc slot DISP Display (a page 10, etc.) 5y Play/Pause CLK Clo...
Page 10
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ10 General Source Selection Display Change The source changes as follows every time [SRC] (Source) Press [DISP] to switch to the clock display. is pressed. When ...
Page 11
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ11 Sound Controls SQ (Sound Quality) SQ is a function that can call up various sound types at the touch of button in accordance with your listening music type. P...
Page 12
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ12 Radio Band Caution Press [BAND] to change the band. To ensure safety, never attempt to preset stations while you are driving. (FM stereo) indicator Weather Ba...
Page 13
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ13 Tuning in a Weather Band Station Press [BAND] to select WB (Weather Band). Warning (a page 12) Any NOAA broadcast weather report, including current and Press ...
Page 14
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ14 CD/MP3/WMA Player Cautions ¡Do not insert a disc when the indicator lights. ¡Refer to the section on “Notes on MP3/WMA”. (a page 30) ¡This unit does not suppo...
Page 15
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ15 Display change Press [DISP] to change the display. Notes: For scrolling text, press [3] (SCROLL). “NO TEXT” is displayed when there is no information on the d...
Page 16
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ16 USB (MP3/WMA) Compatible USB devices Cautions USB Mass Storage Class ¡Do not connect a USB device directly to this unit. If a USB For details as to whether yo...
Page 17
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ17 Notes: ¡Refer to the section on “Notes on MP3/WMA”. (a page 30) ¡Do not leave the USB device for long periods of time in places inside the car where the tempe...
Page 18
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ18 Installation WARNING ❐ This installation information is designed for experienced installers and is not intended for non-technical individuals. It does not con...
Page 19
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ19 Preparation Installation Hardware Diagram Q’ty Item No. Warning 1Mounting Collar* If your vehicle is equipped with air bag and/or anti-theft sys- tems, specif...
Page 20
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ20 Installation (continued) Mounting and removing the Main Unit Mounting Procedures (When using Mounting Collar q) The included Mounting Collar q is designed spe...
Page 21
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ21 Method for Fixing the Rear of the Unit (a) Using the rear support strap t (b) Using the rubber cushion (option) Fire Wall of Vehicle w Plain Washer Rear suppo...
Page 22
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ22 Electrical Connections Caution • This wiring information is for experienced technical individual, for safety reason, please your dealer wire this connection. ...
Page 23
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ23 Troubleshooting If You Suspect Something Wrong Warning Check and take steps as described below. ¡Do not use the unit in an irregular condition, for If the des...
Page 24
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ24 Troubleshooting (continued) BALANCE/FADER setting is not appropriate. Readjust BALANCE/FADER. No sound from speaker(s) There is a break, a short circuit, poor...
Page 25
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ25 The disc is inserted upside down. Insert a disc correctly. No playback or disc ejected There is a flaw or foreign material on the disc. Remove the foreign mat...
Page 26
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ26 Troubleshooting (continued) USB The USB device and USB extension cable are not connected correctly. Connect the USB device and USB extension cable correctly. ...
Page 27
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ27 Error Display Messages CD/MP3/WMA Display Possible cause Possible solution The disc is dirty, or is upside down. Check the disc. The disc has scratches. Check...
Page 28
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ28 Error Display Messages (continued) USB A USB device is not connected or the connected device cannot be recognized. Use the type of USB memory that is suitable...
Page 29
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ29 Maintenance Cleaning this Unit Your product is designed and manufactured to ensure a To remove stubborn stains minimum of maintenance. Use a dry soft cloth fo...
Page 30
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ30 Notes on MP3/WMA Both of MP3 (MPEG Audio Layer-3) and WMA (Windows Media™ Audio) is a format for compressed audio file. These formats allow users to save all ...
Page 31
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ31 Cautions as to compressed audio files Compressed audio file writing Folder selection order/file playback order ¡Do not save an audio file (CD-DA file) and a c...
Page 32
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ32 Notes on Discs How to hold the disc Disc insert ¡Do not touch the underside of the disc. The surfaces of new discs tend to be slippery. Therefore, ¡Do not scr...
Page 33
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ33 Specifications General Power Supply: 12 V DC (11 V-16 V) test Voltage 14.4 V, Negative ground Current consumption: Less than 2.5 A (CD mode, 0.5 W 4-speaker) ...
Page 34
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ34 Memorandum CQ-5250U
Page 35
5250U_OI_01_eng.qxd 08.5.13 9:16 AM ページ35 35CQ-5250U
Page 36
