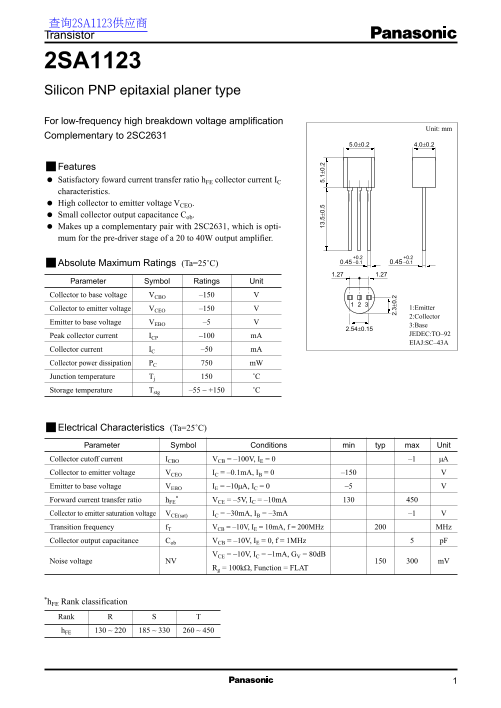

2SA1123 Silicon PNP epitaxial planer type For low-frequency high breakdown voltage amplification
Unit: mm
Complementary to 2SC2631
Features Satisfactory foward current transfer ratio h FE collector current IC characteristics. High collector to emitter voltage VCEO. Small collector output capacitance Cob. Makes up a complementary pair with 2SC2631, which is opti- mum for the pre-driver stage of a 20 to 40W output amplifier.
+0.2 +0.2 Absolute Maximum Ratings (Ta=25˚C) –0.1 0.45 –0.10.45
Parameter Symbol Ratings Unit Collector to base voltage VCBO –150
Collector to emitter voltage VCEO –150 1:Emitter 2:Collector
Emitter to base voltage VEBO –5 .5 ±0 .5 5. 1± 0.
3:Base
JEDEC:TO–92
Peak collector current ICP –100 m A
EIAJ:SC–43A
Collector current IC –50 m A Collector power dissipation PC m W Junction temperature Tj ˚C Storage temperature Tstg –55 ~ +150 ˚C
Electrical Characteristics (Ta=25˚C) Parameter Symbol Conditions min typ max Unit Collector cutoff current ICBO VCB = –100V, IE = 0 –1 µA Collector to emitter voltage VCEO IC = –0.1m A, IB = 0 –150 Emitter to base voltage VEBO IE = –10µA, IC = 0 –5 Forward current transfer ratio h FE VCE = –5V, IC = –10m A Collector to emitter saturation voltage VCE(sat) IC = –30m A, IB = –3m A –1 Transition frequency f T VCB = –10V, IE = 10m A, f = 200MHz MHz
Collector output capacitance Cob VCB = –10V, IE = 0, f = 1MHz p F
VCE = –10V, IC = –1m A, GV = 80d B
Noise voltage NV m V
Rg = 100kΩ, Function = FLAT
*h FE Rank classification
Rank h FE 130 ~ 220 185 ~ 330 260 ~ 450
