The NCV7380 is a high-reliability LIN Transceiver designed for single-wire data links in automotive applications. It provides stable physical layer communication across systems developed for LIN 1.3 or LIN 2.0, and is compatible with ISO9141 protocols. Ideal for Engine Control Unit (ECU) integration, its standout feature is extremely low quiescent current consumption, minimizing power drain. This comprehensive manual details the device's operating specifications, protection features (including transient voltage handling and ESD defense), pin connections, and electrical characteristics, ensuring precise implementation of reliable bus communication networks in demanding environments.
Page 1 Text Content
查询NCV7380供应商
NCV7380

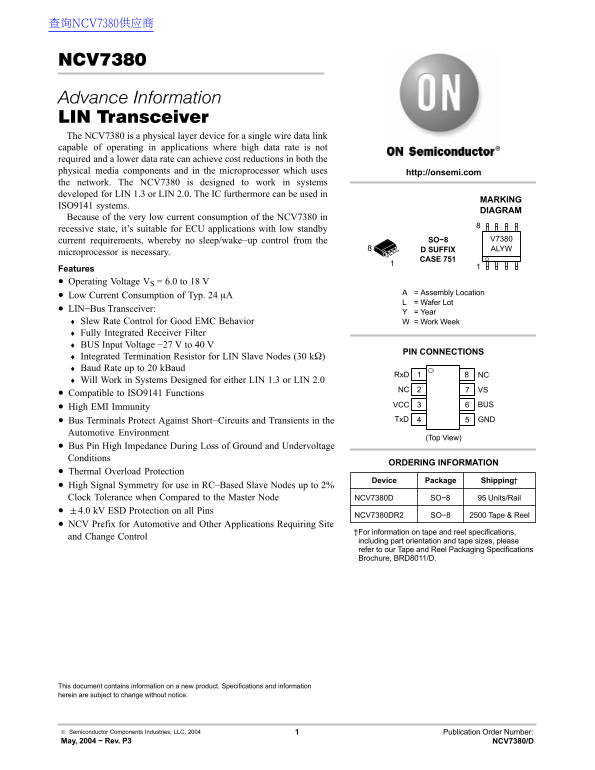

Advance Information LIN Transceiver The NCV7380 is a physical layer device for a single wire data link capable of operating in applications where high data rate is not required and a lower data rate can achieve cost reductions in both the physical media components and in the microprocessor which uses http://onsemi.com the network. The NCV7380 is designed to work in systems developed for LIN 1.3 or LIN 2.0. The IC furthermore can be used in
MARKING
ISO9141 systems.
DIAGRAM
Because of the very low current consumption of the NCV7380 in recessive state, it’s suitable for ECU applications with low standby
current requirements, whereby no sleep/wake−up control from the SO−8 V7380 D SUFFIX ALYW
microprocessor is necessary.
CASE 7511
Features Operating Voltage VS = 6.0 to 18 V
= Assembly Location
Low Current Consumption of Typ. 24 A
= Wafer Lot
LIN−Bus Transceiver:
= Year
Slew Rate Control for Good EMC Behavior = Work Week Fully Integrated Receiver Filter BUS Input Voltage −27 V to 40 V
PIN CONNECTIONS
Integrated Termination Resistor for LIN Slave Nodes (30 k) Baud Rate up to 20 k Baud
Rx D NC
Will Work in Systems Designed for either LIN 1.3 or LIN 2.0
Compatible to ISO9141 Functions
VCC BUS
High EMI Immunity
Bus Terminals Protect Against Short−Circuits and Transients in the Tx D GND
Automotive Environment
(Top View)
Bus Pin High Impedance During Loss of Ground and Undervoltage Conditions
ORDERING INFORMATION
Thermal Overload Protection
Device Package Shipping†
High Signal Symmetry for use in RC–Based Slave Nodes up to 2% Clock Tolerance when Compared to the Master Node NCV7380D SO−8 95 Units/Rail 4.0 k V ESD Protection on all Pins
NCV7380DR2 SO−8 2500 Tape & Reel
NCV Prefix for Automotive and Other Applications Requiring Site
†For information on tape and reel specifications,
and Change Control
including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.
This document contains information on a new product. Specifications and information herein are subject to change without notice.
Semiconductor Components Industries, LLC, 2004 Publication Order Number: May, 2004 − Rev. P3 NCV7380/D
