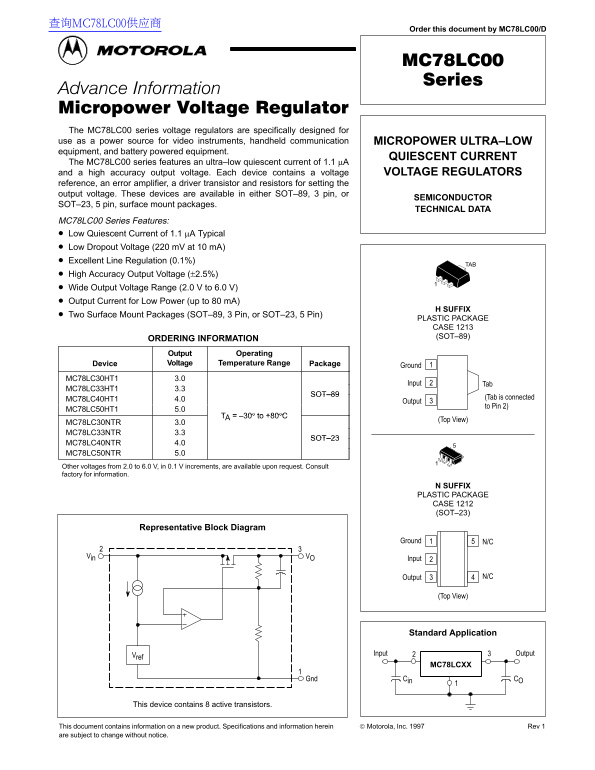

Motorola MC78LC00 Series Micropower Voltage Regulator Advance Information

查询MC78LC00供应商

Order this document by MC78LC00/D

The MC78LC00 series voltage regulators are specifically designed for use as a power source for video instruments, handheld communication MICROPOWER ULTRA–LOW equipment, and battery powered equipment.

QUIESCENT CURRENT

The MC78LC00 series features an ultra–low quiescent current of 1.1 µA and a high accuracy output voltage. Each device contains a voltage VOLTAGE REGULATORS reference, an error amplifier, a driver transistor and resistors for setting the output voltage. These devices are available in either SOT–89, 3 pin, or

SEMICONDUCTOR

SOT–23, 5 pin, surface mount packages.

TECHNICAL DATA

MC78LC00 Series Features: Low Quiescent Current of 1.1 µA Typical Low Dropout Voltage (220 m V at 10 m A) Excellent Line Regulation (0.1%)

High Accuracy Output Voltage (±2.5%) Wide Output Voltage Range (2.0 V to 6.0 V) Output Current for Low Power (up to 80 m A)

H SUFFIX

Two Surface Mount Packages (SOT–89, 3 Pin, or SOT–23, 5 Pin)

PLASTIC PACKAGE CASE 1213 (SOT–89)

ORDERING INFORMATION Output Operating Device Voltage Temperature Range Package

Ground

MC78LC30HT1 3.0

Input Tab

MC78LC33HT1 3.3

MC78LC40HT1 4.0 (Tab is connected

Output

to Pin 2)

MC78LC50HT1 5.0

30° to 80°C

(Top View)

MC78LC30NTR 3.0 MC78LC33NTR 3.3

MC78LC40NTR 4.0 MC78LC50NTR 5.0 Other voltages from 2.0 to 6.0 V, in 0.1 V increments, are available upon request. Consult factory for information.

N SUFFIX PLASTIC PACKAGE CASE 1212 (SOT–23)

Representative Block Diagram

Ground N/C

Vin VO

Input

Output N/C

(Top View)

Standard Application

Input Output

MC78LCXX

Gnd COCin

This device contains 8 active transistors.

This document contains information on a new product. Specifications and information herein Motorola, Inc. 1997 Rev 1 are subject to change without notice. 1MOTOROLA ANALOG IC DEVICE DATA
