NCP612, NCV612

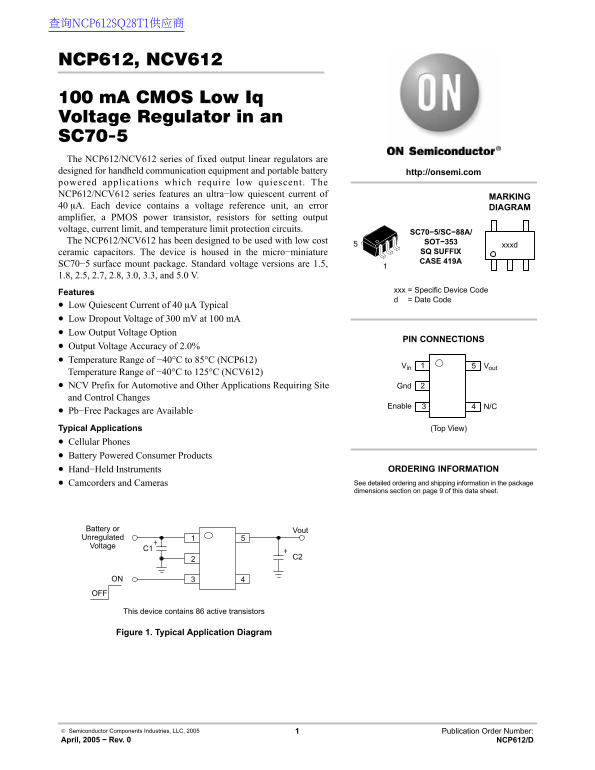

100 m A CMOS Low Iq Voltage Regulator in an SC70−5 The NCP612/NCV612 series of fixed output linear regulators are designed for handheld communication equipment and portable battery http://onsemi.com powered applications which require low quiescent. The NCP612/NCV612 series features an ultra−low quiescent current of

MARKING

40 A. Each device contains a voltage reference unit, an error DIAGRAM amplifier, a PMOS power transistor, resistors for setting output voltage, current limit, and temperature limit protection circuits.

SC70−5/SC−88A/

The NCP612/NCV612 has been designed to be used with low cost SOT−353

ceramic capacitors. The device is housed in the micro−miniature SQ SUFFIX CASE 419A

SC70−5 surface mount package. Standard voltage versions are 1.5, 1.8, 2.5, 2.7, 2.8, 3.0, 3.3, and 5.0 V.

xxx = Specific Device Code

Features

= Date Code

Low Quiescent Current of 40 A Typical Low Dropout Voltage of 300 m V at 100 m A Low Output Voltage Option

PIN CONNECTIONS

Output Voltage Accuracy of 2.0% Temperature Range of −40°C to 85°C (NCP612)

Vin Vout5

Temperature Range of −40°C to 125°C (NCV612) NCV Prefix for Automotive and Other Applications Requiring Site 2Gnd and Control Changes

Enable N/C

Pb−Free Packages are Available

Typical Applications (Top View)

Cellular Phones Battery Powered Consumer Products

Hand−Held Instruments ORDERING INFORMATION Camcorders and Cameras See detailed ordering and shipping information in the package dimensions section on page 9 of this data sheet.

Vout Battery or

Unregulated Voltage

ON OFF

This device contains 86 active transistors

Figure 1. Typical Application Diagram

Semiconductor Components Industries, LLC, 2005 Publication Order Number: April, 2005 − Rev. 0 NCP612/D
