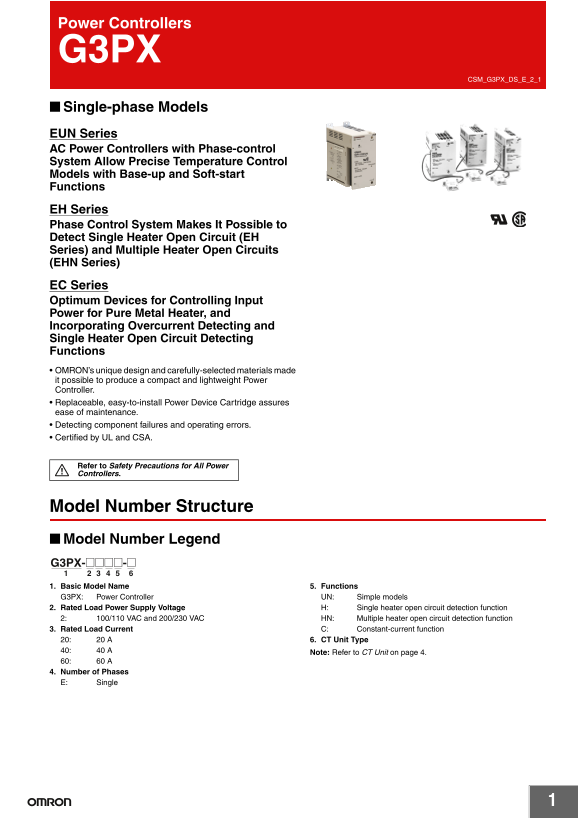

Power Controllers
CSM_G3PX_DS_E_2_1
Single-phase Models EUN Series AC Power Controllers with Phase-control System Allow Precise Temperature Control Models with Base-up and Soft-start Functions EH Series Phase Control System Makes It Possible to Detect Single Heater Open Circuit (EH Series) and Multiple Heater Open Circuits (EHN Series) EC Series Optimum Devices for Controlling Input Power for Pure Metal Heater, and Incorporating Overcurrent Detecting and Single Heater Open Circuit Detecting Functions OMRON’s unique design and carefully-selected materials made it possible to produce a compact and lightweight Power Controller. Replaceable, easy-to-install Power Device Cartridge assures ease of maintenance. Detecting component failures and operating errors. Certified by UL and CSA.
Refer to Safety Precautions for All Power Controllers.
Model Number Structure Model Number Legend G3PX-@@@@-@
1. Basic Model Name 5. Functions G3PX: Power Controller UN: Simple models 2. Rated Load Power Supply Voltage H: Single heater open circuit detection function 2: 100/110 VAC and 200/230 VAC HN: Multiple heater open circuit detection function 3. Rated Load Current C: Constant-current function 20: 6. CT Unit Type
Note: Refer to CT Unit on page 4.
60: 4. Number of Phases E: Single
