LM 1032-06/LM 1032-15/LM 1032-25 plifiers for ire nalog lectret icrophones

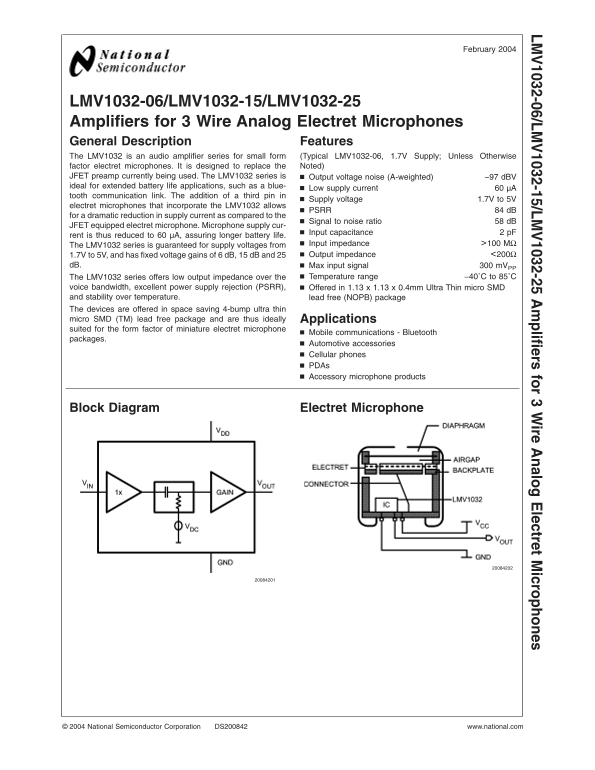

LMV1032-06/LMV1032-15/LMV1032-25 Amplifiers for Wire Analog Electret Microphones General Description Features The LMV1032 is an audio amplifier series for small form (Typical LMV1032-06, 1.7V Supply; Unless Otherwise factor electret microphones. It is designed to replace the Noted) JFET preamp currently being used. The LMV1032 series is Output voltage noise (A-weighted) −97 d BV ideal for extended battery life applications, such as blue-
Low supply current µA
tooth communication link. The addition of third pin in
Supply voltage 1.7V to 5V
electret microphones that incorporate the LMV1032 allows
PSRR d B
for dramatic reduction in supply current as compared to the
Signal to noise ratio d B
JFET equipped electret microphone. Microphone supply cur-
Input capacitance p F
rent is thus reduced to µA, assuring longer battery life.
Input impedance >100 MΩ
The LMV1032 series is guaranteed for supply voltages from
1.7V to 5V, and has fixed voltage gains of d B, d B and Output impedance <200Ω
d B. Max input signal m VPP
The LMV1032 series offers low output impedance over the Temperature range −40˚C to 85˚C
voice bandwidth, excellent power supply rejection (PSRR), Offered in 1.13 1.13 0.4mm Ultra Thin micro SMD and stability over temperature. lead free (NOPB) package The devices are offered in space saving 4-bump ultra thin micro SMD (TM) lead free package and are thus ideally Applications suited for the form factor of miniature electret microphone
Mobile communications Bluetooth
packages.
Automotive accessories Cellular phones PDAs Accessory microphone products
Block Diagram Electret Microphone
National Semiconductor Corporation DS200842 www.national.com
