Reliable Dual 4-Input NAND Gate logic integrated circuits for digital electronics design. This comprehensive technical guide provides engineers and students with detailed electrical characteristics, including absolute maximum ratings, voltage parameters, timing specifications, and operating temperature ranges. Use the manual to select the perfect package (DIP) and integrate robust NAND logic into your next circuit board project.

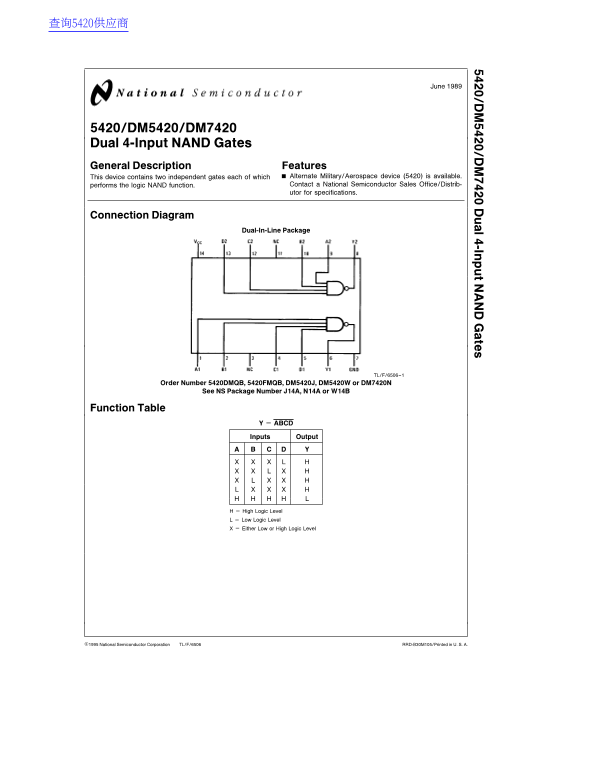

Page 1 Text Content
-In te
5420/DM5420/DM7420 Dual 4-Input NAND Gates General Description Features
This device contains two independent gates each of which Alternate Military/Aerospace device (5420) is available. performs the logic NAND function. Contact National Semiconductor Sales Office/Distrib- utor for specifications.
Connection Diagram
Dual-In-Line Package
TL/F/6506–1
Order Number 5420DMQB, 5420FMQB, DM5420J, DM5420W or DM7420N
See NS Package Number J14A, N14A or W14B
Function Table
Inputs Output
High Logic Level Low Logic Level Either Low or High Logic Level
C1995 National Semiconductor Corporation TL/F/6506 RRD-B30M105/Printed in U. S. A.
Page Summary Contents For National Semiconductor DM5420 DM7420 Data Handbook Specifications
Manual Details
| Brand | National |
|---|---|
| Pages | 4 |
| File Size | 93.91 KB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What logical function does this integrated circuit perform?
The device contains two independent gates that support the logic NAND function.
What are the key operating voltage specifications?
The recommended supply voltage range is a minimum of 4.5V and a maximum of 5.5V.
How can I order this chip in different package types?
Ceramic DIP packages use prefixes like 5420DMQB, while Molded DIP uses suffix codes such as DM7420N.
What should I do if the device might operate outside rated limits?
The 'Absolute Maximum Ratings' serve as warnings; operation beyond these limits is not guaranteed and should be avoided.
